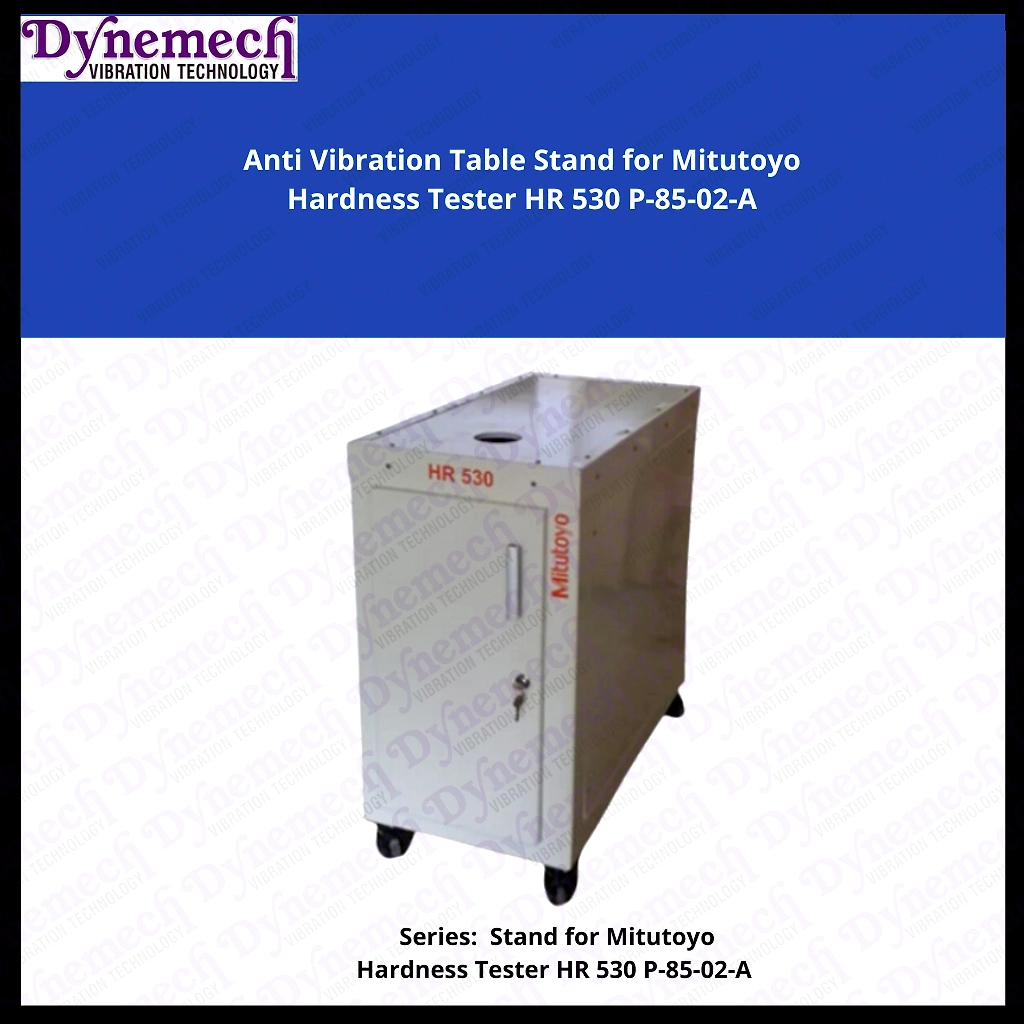

The P-85-02-A Mild Steel Anti Vibration Laboratory Table is engineered specifically for precision testing and quality control within industrial units where high levels of vibration can affect measurement accuracies. With a robust and durable structure, featuring a 60 mm tubular frame, this table is not only sturdy but also designed to minimize the impact of vibrations present in high-intensity environments like machining centers, presses, and hammers. The top surface area measures 400mm by 750mm and is constructed from 8 mm thick sheet metal, securely welded to the frame and augmented with L-plates and an 80 mm dia laser-cut hole for various applications. The addition of caster wheels allows for easy movement, while a dedicated drawing pouch on the left side and a cable manager at the rear maintain organization and efficiency. The table is equipped with a front single door, complete with a handle and lock, ensuring secure storage of sensitive equipment. Enhanced with Dynemech’s innovative vibration damping solutions, the Anti-Vibration Table is equipped with a granite surface plate providing Grade-1 accuracy, making it ideal for laboratory balances and control scales. Customers can choose from elastomeric, pneumatic, or spring-based damping systems for effective vibration control based on their specific laboratory needs.
Key Features
| Features | Description |
|---|---|
| Material | Mild Steel |
| Top Surface Area | 400mm x 750mm |
| Top Sheet Metal Thickness | 8mm |
| Tubular Structure | 60mm |
| Vibration Damping Systems | Elastomeric, Pneumatic, or Spring Based |
| Damping Locations | Below granite top and at the bottom using leveling feet |
| Casters | 4 No's for easy mobility |
| Cable Management | Cable manager at rear side |
| Storage | Front door with handle and lock |
| Leveling Mechanism | Leveling Ball for proper adjustment |
| Attributes | Description |
|---|---|
| Model | P-85-02-A |
| Grade of Granite | Grade-1 for Accuracy |
| Vibration Control | Designed for cooperation with analytical balances |
| Application | Ideal for Testing/Quality Laboratories |
| Cutout Hole Diameter | 80mm |
| Environment | High vibration settings from industrial units |
| Dimensions | L 400 mm x B 750 mm |
| Weight Capacity | Suitable for various laboratory equipment |
Key Words
*Disclaimer: This above description has been AI generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Brand: DYNEMECH
Country of Origin: India
60 mm Tubular Structure
Top Surface area L 400 X B 750 mm
Top sheet metal 8 mm thick welded to tubular structure covered with L – plates with 80 mm dia laser cut hole. 4 No’s Caster Wheels
Drawing Pouch LH Side, cable manager at rear side Front single door with handle and lock Leveling Ball
Dynemech’s Anti-Vibration Tables are ideal for Testing / Quality Laboratories co-located with industrial units having high degree of vibration due to working machines like presses, hammers, VMCs etc. An anti vibration table is designed for cooperation with analytical and laboratory balances or control scales.
60 mm Tubular Structure
Top Surface area L 400 X B 750 mm
Top sheet metal 8 mm thick welded to tubular structure covered with L – plates with 80 mm dia laser cut hole. 4 No’s Caster Wheels
Drawing Pouch LH Side, cable manager at rear side Front single door with handle and lock Leveling Ball
Dynemech’s Anti-Vibration Tables are ideal for Testing / Quality Laboratories co-located with industrial units having high degree of vibration due to working machines like presses, hammers, VMCs etc. An anti vibration table is designed for cooperation with analytical and laboratory balances or control scales.
Our Anti-Vibration Tables are designed with Granite Surface Plate with Grade-1 accuracy for critical measuring accuracies. Also, vibration damping in our Anti-Vibration tables are provided at two locations – below the granite table top and at the bottom usinglevelling feet which can help in proper levelling of the table as well as having insulation plate to remove any unwanted vibrations. Additionally, we can select Elastomeric, Pneumatic or Spring Based Damping depending upon the vibrations present in the Testing Laboratory.
