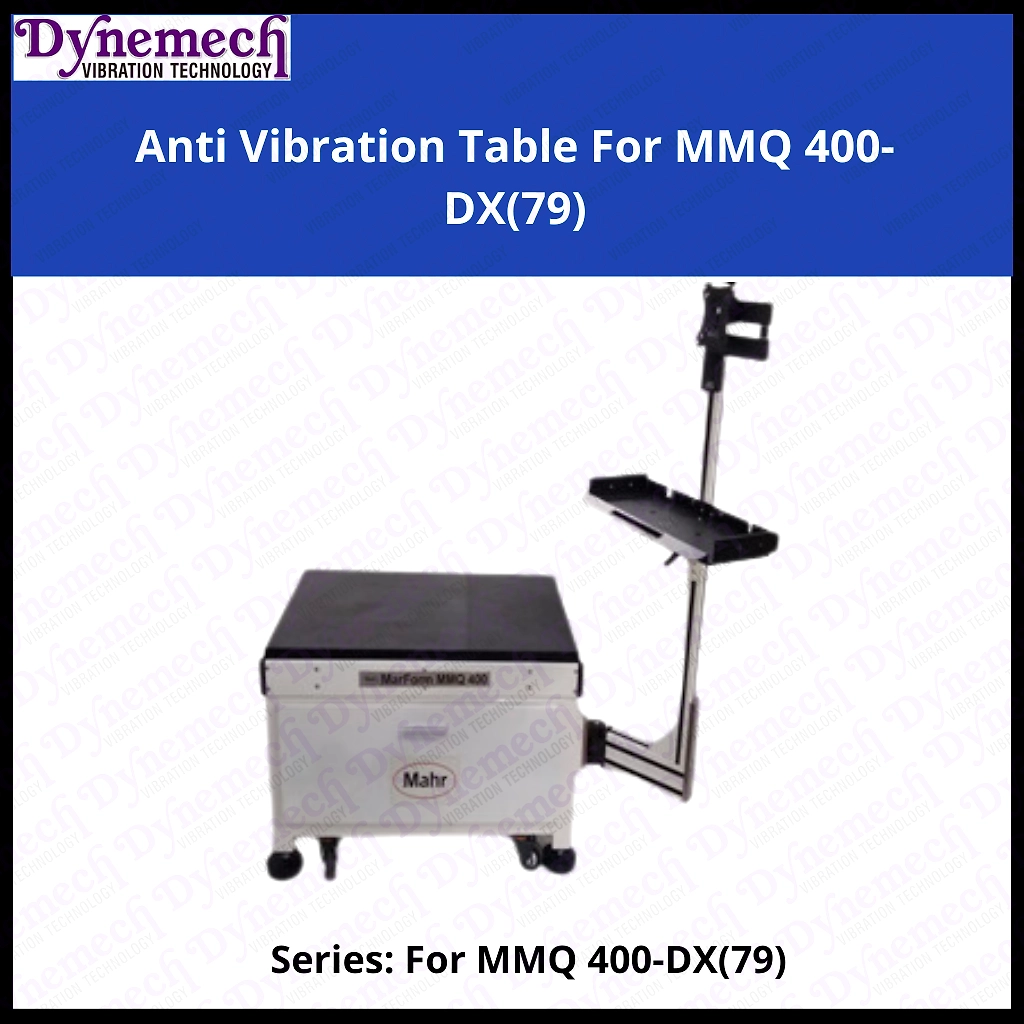

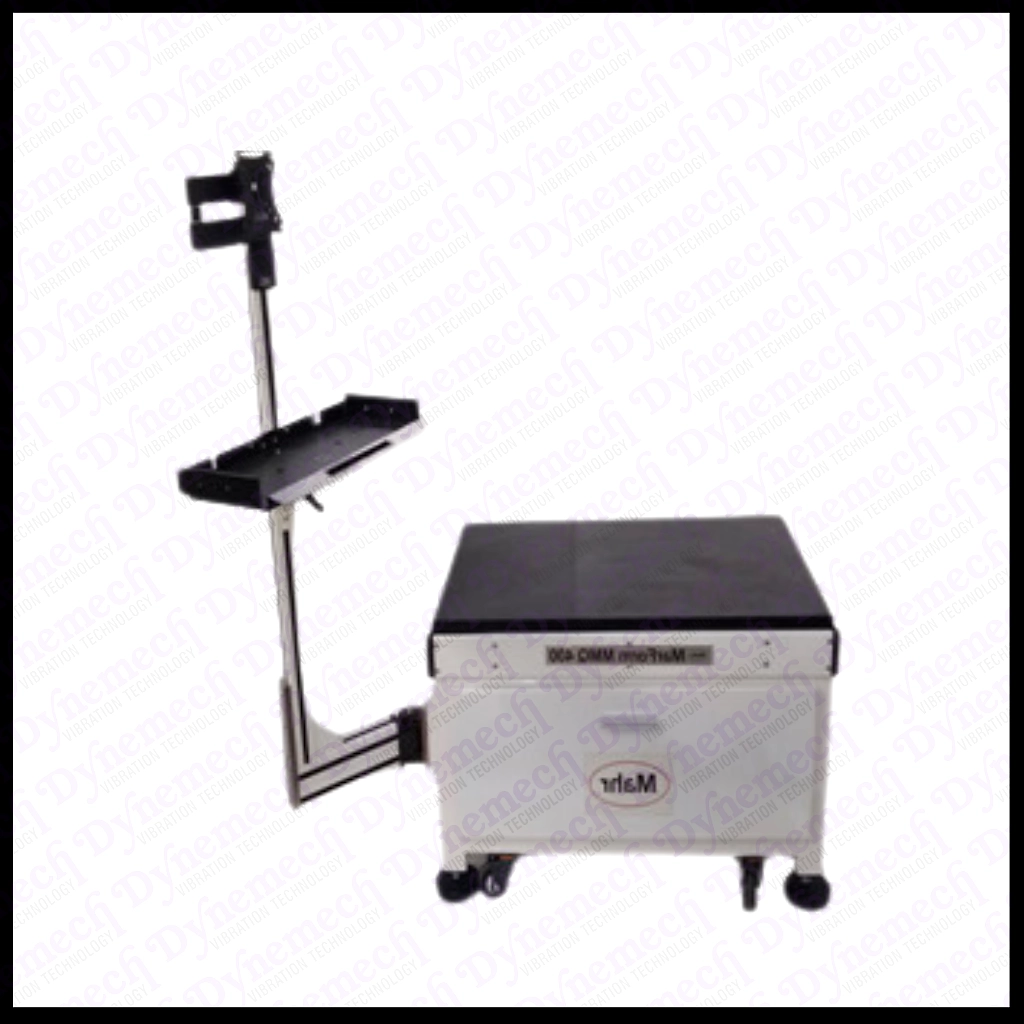

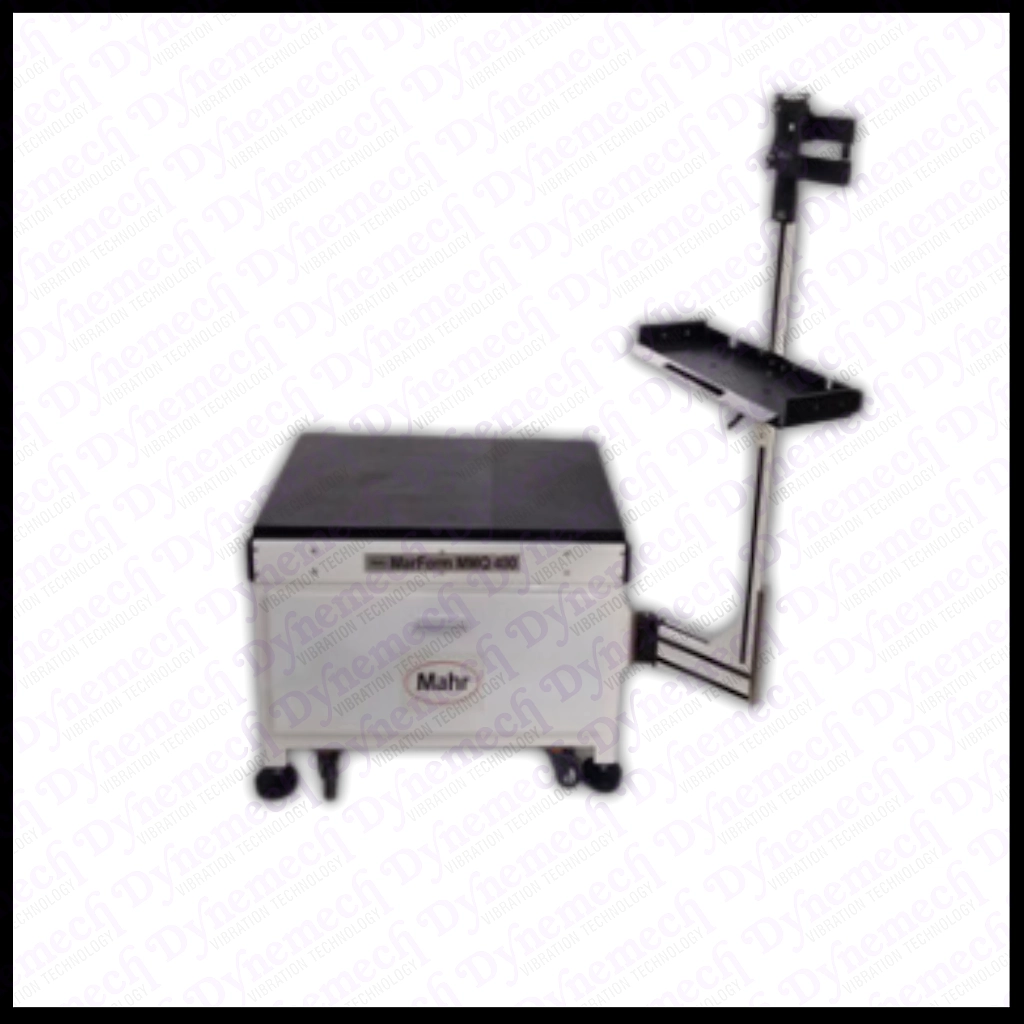

Dynemech’s Laboratory Anti Vibration Table MMQ 400-DX, P-79 is specifically engineered to combat vibrations in testing and quality laboratories, particularly those co-located with industrial units that generate significant vibrational disturbances, such as presses, hammers, and vertical machining centers (VMCs). These anti-vibration tables feature a robust granite surface plate with Grade-1 accuracy, ensuring critical measuring accuracies for analytical and laboratory balances or control scales. With a table size of L-910 mm, B-610 mm, and H-586 mm, this unit incorporates a granite base measuring L-900 mm, B-600 mm, and T-50 mm. The design includes a 60x60 mm HR tubular structure, along with advanced vibration damping mechanisms positioned both below the granite tabletop and at the bottom utilizing leveling feet. Various damping options, such as elastomeric, pneumatic, or spring-based systems, can be selected based on the vibrations present in the testing environment. The table is equipped with a cable manager and a power strip for essential components like keyboards, mice, and monitors, ensuring a clean and efficient workspace. Its wrap-around construction and a front single door facilitate easy access and increased functionality, making this anti-vibration table a perfect choice for precise measurement and testing applications in laboratories.
Key Features
| Features | Description |
|---|---|
| Ideal Use | Testing and Quality Laboratories |
| Surface Material | Granite with Grade-1 Accuracy |
| Table Dimensions | L-910 mm, B-610 mm, H-586 mm |
| Granite Base Size | L-900 mm, B-600 mm, T-50 mm |
| Damping Options | Elastomeric, Pneumatic, or Spring Based |
| Load Capacity | Optimized for laboratory balances and control scales |
| Structural Material | 60x60 mm HR Tubular Structure |
| Wheels | 4 nos - 3” Wheels |
| Vibration Pads | 9 nos AV Pads between structure and granite base |
| Cable Management | Integrated Cable Manager & Power Strip on R.H Side |
| Accessibility | Front Single Door with Wrap Around Construction |
| Attributes | Description |
|---|---|
| Table Height | 586 mm |
| Granite Thickness | 50 mm |
| Weight Capacity | Designed for high precision balances |
| Vibration Absorption | Utilizes 9 AV pads for effective damping |
| Wheel Type | Heavy-duty 3-inch wheels for mobility |
| Maximum Load | Customizable based on laboratory requirements |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Brand: DYNEMECH
Country Of Origin: India
Dynemech’s Anti-Vibration Tables are ideal for Testing / Quality Laboratories co-located with industrial units having high degree of vibration due to working machines like presses, hammers, VMCs etc. An anti vibration table is designed for cooperation with analytical and laboratory balances or control scales.
Table surface area : L-910 B-610 H- 586 mm
Granite base of size: L-900 B-600 T-50 mm
60x60 mm HR tubular structure
4 nos DLP3 at ground level,4 nos - 3” wheel
9 nos AV pad between structure and granite base
Cable manager in R.H side, power strip in rear
Front single door, Wrap around construction
Cable manager in R.H side, power strip in rear
for keeping the Keyboard, mouse and Monitor
Dynemech’s Anti-Vibration Tables are ideal for Testing / Quality Laboratories co-located with industrial units having high degree of vibration due to working machines like presses, hammers, VMCs etc. An anti vibration table is designed for cooperation with analytical and laboratory balances or control scales.
Our Anti-Vibration Tables are designed with Granite Surface Plate with Grade-1 accuracy for critical measuring accuracies. Also, vibration damping in our Anti-Vibration tables are provided at two locations – below the granite table top and at the bottom usinglevelling feet which can help in proper levelling of the table as well as having insulation plate to remove any unwanted vibrations. Additionally, we can select Elastomeric, Pneumatic or Spring Based Damping depending upon the vibrations present in the Testing Laboratory.
Granite base of size: L-900 B-600 T-50 mm
60x60 mm HR tubular structure
4 nos DLP3 at ground level,4 nos - 3” wheel
9 nos AV pad between structure and granite base
Cable manager in R.H side, power strip in rear
Front single door, Wrap around construction
Cable manager in R.H side, power strip in rear
for keeping the Keyboard, mouse and Monitor
