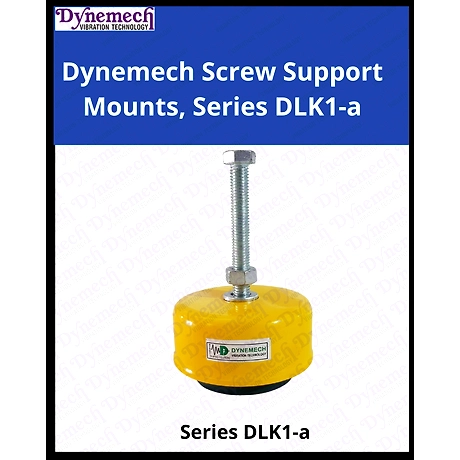

Dynemech Screw Support Mounts, Series DLK1-a

Brand: DYNEMECH

Inclusive of all taxes

Dynemech Screw Support Mounts Series DLK1-a provide a revolutionary solution for vibration damping in industrial machinery. Designed specifically for machines with mounting holes, these mounts not only offer low frequency attenuation but also ensure stable leveling, significantly enhancing operational efficiency. Their robust steel body and composite vibration insulating base pad conform to various industrial requirements, making them ideal for applications involving CNC Machines, Textile Machines, Power Presses, Injection Moulding Machines, and more. Featuring a straightforward installation process, these mounts help reduce wear and tear on machinery, thus prolonging their life. Additionally, their resilience to water, coolants, and lubricants ensures durability under challenging industrial conditions. With a competitive load carrying capacity of 580 Kg per unit, an adjustment range of 10 mm, and a working temperature range from -15 to 80 °C, the DLK1-a mounts stand out as effective and reliable solutions for vibration isolation needs.

Key Features

Features Description
Material Composition Rubber, Cast Iron, and Mild Steel
Load Capacity 580 Kg/pc
Bolt Size M 12X1.75X100mm
Adjustment Range 10 mm
Working Temperature Range -15 to 80 °C
Water and Chemical Resistance Resistant to most coolants, chemicals, and lubricants
Easy Installation Fast installation process with stable leveling
Application Versatility Suitable for various industrial machinery applications
Attributes Description
Size Diameter: 92 mm, Height: 50 mm
Weight 1 Kg
Color Red Powder Coating
Base Pad Material Composite with varying compositions for different natural frequencies
Structural Safety Improves health protection and structural safety of machines
Plastic Deformation Resistance Will not deform plastically under recommended load
Mount Type Screw Support Mounts

Key Words

*Disclaimer: This above description has been AI generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.

Be the first to write a review

  • Incorporation Type

  • GST

  • GST Registration Date

  • Number of Employees

  • Import Export Code (IEC)

  • Year of Establishment

  • Nature of Business

  • GlobalLinker Member Since

Brand: DYNEMECH

Country of Origin: 101

Dynemech Screw Support Mounts Series DLK are simple and effective vibration dampers for machines with respective holes in the base. These mounts offer both low frequency attenuation and stable machine levelling.


The DLK Series of Vibration damping and leveling mounts provide fast and easy installation of machines. These Anti-vibration mounts provide enhanced component finish/part tolerance and extend tool and machinery life. The machine mounts provide improved health protection and better structural safety. DLK series Anti-vibration mounts have steel body and are used for machines having mounting holes in the base. This leveling mount has a cover plate and dimpled bottom plate holding the insulation plate. Leveling is done by tightening the bolt which lifts the cover plate with the machine foot. The vibration insulating Base pad is made of composite material at varying composition giving different natural frequencies to provide vibration damping solutions to all types of industrial machines.


Dynemech Screw Support Mounts Series DLK are simple and effective vibration dampers for machines with respective holes in the base. These mounts offer both low frequency attenuation and stable machine levelling.

The DLK Series of Vibration damping and leveling mounts provide fast and easy installation of machines. These Anti-vibration mounts provide enhanced component finish/part tolerance and extend tool and machinery life. The machine mounts provide improved health protection and better structural safety. DLK series Anti-vibration mounts have steel body and are used for machines having mounting holes in the base. This leveling mount has a cover plate and dimpled bottom plate holding the insulation plate. Leveling is done by tightening the bolt which lifts the cover plate with the machine foot. The vibration insulating Base pad is made of composite material at varying composition giving different natural frequencies to provide vibration damping solutions to all types of industrial machines. These vibration isolation plates are resistant to water, almost all the coolants, chemicals, fuels, lubricating oils used in the modern machine shop. These vibration insulating machine pads will not deform plastically, if the weight of machine does not exceed maximum load value of the insulation plates.


Application:Textile Machines, CNC Machines, Power Presses, Plastic Injection Moulding Machines Pressure Die Casting Machines, Printing and Packaging Machines, Compressors, Grinding Machines and All types of Heavy Industrial Applications.


Size :Dia-92(mm), Height-50(mm)

Load Capacity (Kg.):580 Kg/pc

Bolt Size:M 12X1.75X100mm

Adjustment

range (mm):10

Working Temp Range °C:-From -15 to 80

Weight ( Kg.):1 Kg.

Material:Rubber+Cust Iron+Mild steel

Colour:Red powder coating


*****
