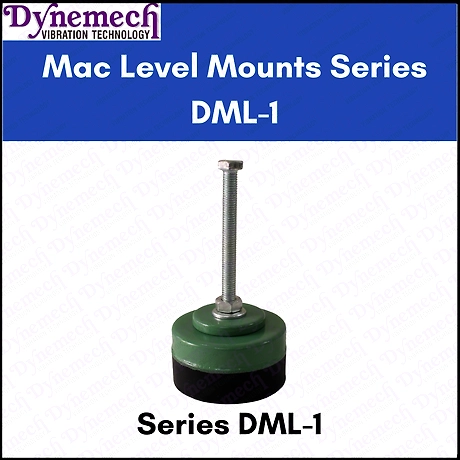

The Dynemech Mac Level Mounts Series DML-1 is engineered to provide reliable support for high-speed rotating machines that experience minimal to no axial forces. This versatile mounting solution is ideal for various industrial applications, offering a range of diameters from 50 mm to 200 mm and heights between 40 mm and 63 mm. With a robust load capacity ranging from 175 kg to 4000 kg per piece, these mounts are designed to accommodate diverse installation needs. The mounts feature a bolt size variance from M10X1.5X100 mm long to M20X2.5X150 mm long, ensuring compatibility with different machinery setups. The levelling adjustment capability, allowing a precision range of 10 mm to 20 mm, enhances stability and adaptability during installation. With a natural frequency range of 7 Hz to 8 Hz, these mounts effectively isolate vibrations, contributing to the longevity and performance of machinery. The Dynemech Mac Level Mounts are constructed from high-quality rubber and cast iron, providing durability and resilience against working temperatures from -16°C to 90°C. Weighing between 500 g and 6 kg, these mounts are suitable for on-site adjustments and setups. Available in a striking green color, the Dynemech Mac Level Mounts not only serve functional purposes but also add an aesthetic value to industrial environments.
Key Features
Features | Description |
---|---|
Diameter Range | 50 mm to 200 mm |
Height Range | 40 mm to 63 mm |
Load Capacity | 175 kg to 4000 kg per piece |
Bolt Size Range | M10X1.5X100 mm to M20X2.5X150 mm |
Levelling Adjustment | 10 mm to 20 mm |
Natural Frequency | 7 Hz to 8 Hz |
Working Temperature | -16°C to 90°C |
Weight | 500 g to 6 kg |
Material | Rubber + Cast Iron |
Color | Green |
Attributes | Description |
---|---|
Product Name | Dynemech Mac Level Mounts Series DML-1 |
Model | DML-1 |
Price | 190 |
Application | High-speed rotating machines with minimal axial forces |
Product Finish | Green |
Manufacturing Standards | ISO Certified |
Key Words
*Disclaimer: This above description has been AI generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Brand: DYNEMECH
Country of Origin: India
Dynemech Mac Level Series DML is suitable for high speed rotating machines having small or no axial forces.
Dia:50(mm) To 200 (mm) Height:40(mm) To 63(mm) Load Capacity: 175 to 4000 (Kg/pc)
d: 32(mm) To 120(mm)
Bolt Size: M10X1.5X100mm Long To M20X2.5X150mm Long
Levelling Adjustment: 10(mm) To 20(mm) Natural Frequency (Hz):7Hz To 8Hz
Working Temp Range °C: -16 to 90
Weight ( Kg.): 500Gm To 6Kgs
Material: Rubber+Cast Iron
Dynemech Mac Level Series DML is suitable for high speed rotating machines having small or no axial forces.
Dia:50(mm) To 200 (mm) Height:40(mm) To 63(mm) Load Capacity: 175 to 4000 (Kg/pc)
d: 32(mm) To 120(mm)
Bolt Size: M10X1.5X100mm Long To M20X2.5X150mm Long
Levelling Adjustment: 10(mm) To 20(mm) Natural Frequency (Hz):7Hz To 8Hz
Working Temp Range °C: -16 to 90
Weight ( Kg.): 500Gm To 6Kgs
Material: Rubber+Cast Iron
Colour: Green Price-190
