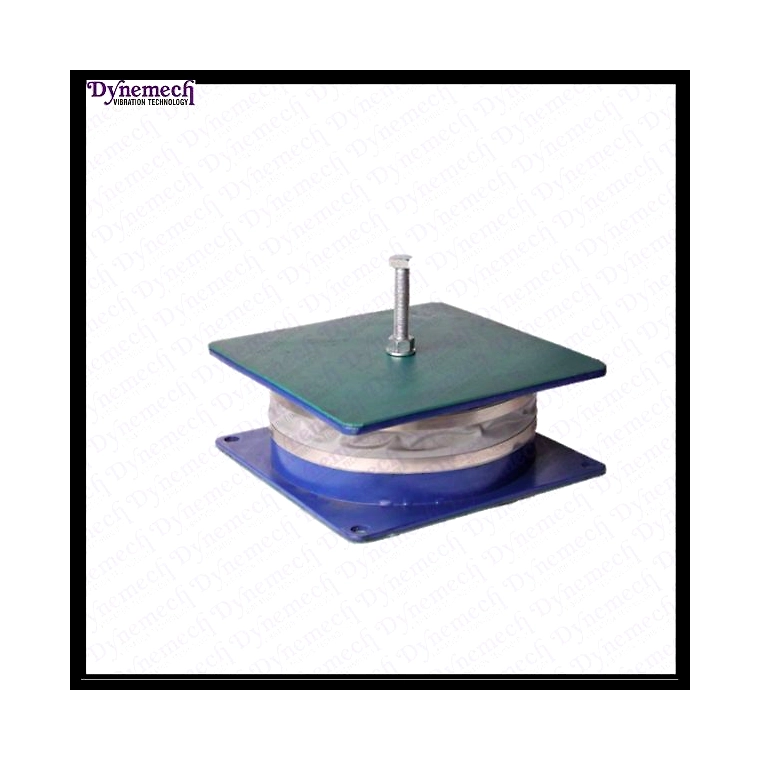

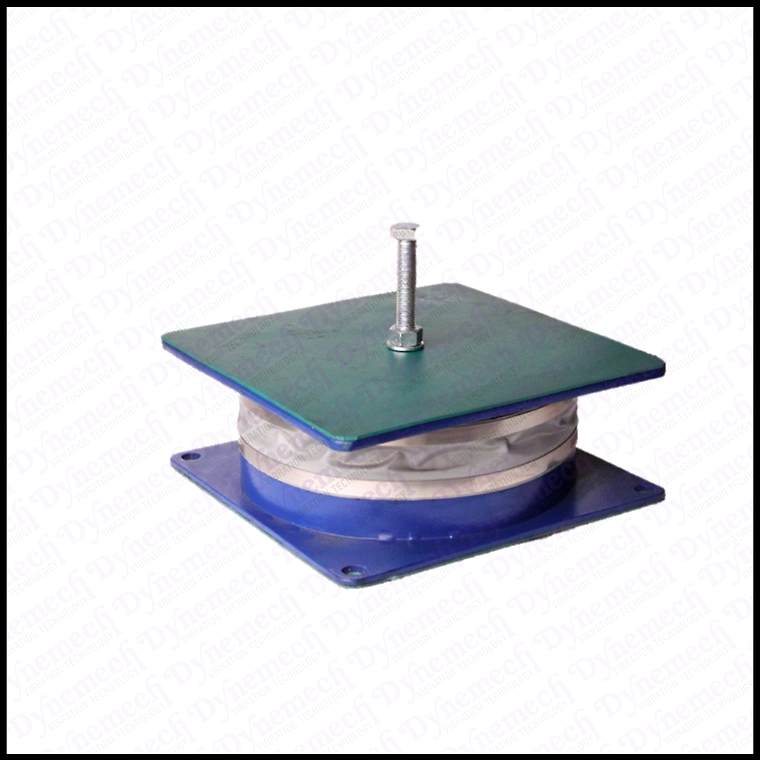

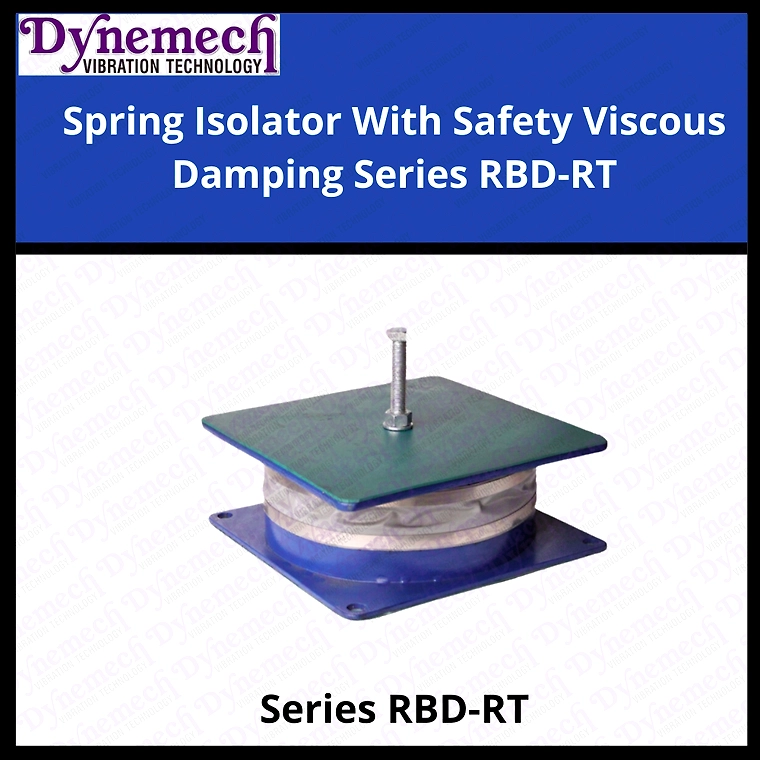

The High-Endurance Spring Dampers for Punching Machines, Series RBD-RT, manufactured by Dynemech, offers superior anti-vibration solutions tailored specifically for industrial applications. With over a decade of experience in vibration control, Dynemech stands out as a comprehensive provider of vibration isolation products, addressing the needs of a variety of industry segments. The RBD-E2-RT model is specifically optimized for heavy machinery, such as punching machines, presses, and hammers, providing essential vibration damping capabilities. The specially designed spring isolator not only accommodates a substantial load capacity of 62 Kg but also features a versatile natural frequency range of 3.5-11 Hz. Coupled with viscous damping capabilities, this product mitigates excessive movement, ensuring stability during operation while extending the lifespan of your machinery. The RBD-RT series is ideal for industries looking to enhance precision, minimize wear and tear on equipment, and maintain operational efficiency. Its robust construction, combined with customizable load-bearing specifications, makes it a reliable choice for any industrial setting, delivering performance that meets the evolving demands of modern manufacturing.
Key Features
| Features | Description |
|---|---|
| Model | RBD-E2-RT |
| Load Capacity | 62 Kg |
| Free Height (HI) | 108 mm |
| Bolt Size | M12x1.75x100 |
| Top Plate Dimensions (AXB) | 235X235 mm |
| Bottom Plate Dimensions (CXD) | 235X235 mm |
| Center to Center Distance (CC) | 205 mm |
| Natural Frequency Range | 3.5-11 Hz |
| Viscous Damping | Included |
| Attributes | Description |
|---|---|
| Model | RBD-E2-RT |
| Load Capacity | 62 Kg |
| Free Height (HI) | 108 mm |
| Bolt Size | M12x1.75x100 |
| Top Plate Size | 235X235 mm |
| Bottom Plate Size | 235X235 mm |
| Center-to-Center (CC) | 205 mm |
| Natural Frequency Range | 3.5-11 Hz |
| Viscous Damping | Yes |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Brand: DYNEMECH
Country Of Origin: India
Dynemech is providing anti vibration solutions to the Indian Industry for the last 10 years. We are the only company to provide almost all types of vibration control solutions under one roof. Our product range consists of stud mounts for very small machines to wedge mounts for precision machine tools, along with air springs for very low natural frequency vibration damping to spring isolators for heavy presses, hammers, gen sets etc. A spring isolator gives desired natural frequency to obtain phase difference in the frequencies for a rotating machine. Viscous Damping is an important feature of an isolation system.
Model:RBD-E2-RT
Load(Kg):62 Free
Height HI (mm):108
Bolt Size: M12x1.75x100
Top Plate AXB(mm):235X235
Bottom Plate CXD(mm):235X235 CC(mm):205
Natural Frequency Range(Hz):3.5-11
Dynemech Spring Isolator
Dynemech is providing anti vibration solutions to the Indian Industry for the last 10 years. We are the only company to provide almost all types of vibration control solutions under one roof. Our product range consists of stud mounts for very small machines to wedge mounts for precision machine tools, along with air springs for very low natural frequency vibration damping to spring isolators for heavy presses, hammers, gen sets etc. A spring isolator gives desired natural frequency to obtain phase difference in the frequencies for a rotating machine. Viscous Damping is an important feature of an isolation system. In most cases viscous damping is required to limit excessive movement which could occur as a machine operates at a speed near to, or coinciding with the resonant frequencies of the system. Generally this problem arises during slow run up and run down of rotating machines and during impact at each stroke in presses and hammers.
Model:RBD-E2-RT
Load(Kg):62 Free
Height HI (mm):108
Bolt Size: M12x1.75x100
Top Plate AXB(mm):235X235
Bottom Plate CXD(mm):235X235 CC(mm):205
Natural Frequency Range(Hz):3.5-11
