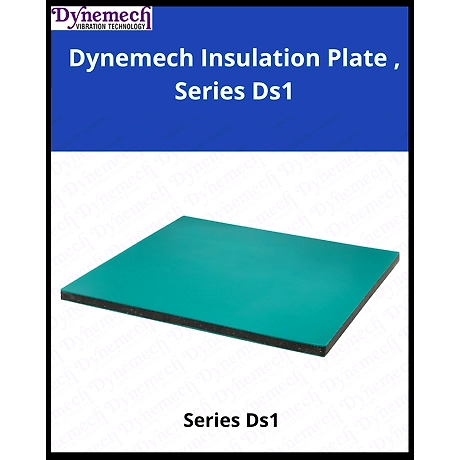

Dynemech Vibration Damping Sheet ,Series Ds1

Brand: DYNEMECH

Inclusive of all taxes

The Dynemech Vibration Damping Sheet, Series Ds1, is an advanced vibration insulation solution designed specifically for industrial applications. Constructed from high-grade synthetic composite materials, the Ds1 sheet is engineered to resist various shop floor fluids, including water, oils, lubricating oils, and fuels, ensuring its durability in challenging environments. With a defined stress value, this insulation plate can be directly placed underneath machines based on their weight and the number of mounting positions, providing optimal load distribution. Notably, the Ds1 sheet exhibits exceptional resilience, maintaining its structural integrity without plastic deformation as long as the machine weight does not exceed its maximum load capacity. Ideal for applications involving lightweight presses, tool room machines, and compressors, the Ds1 vibration damping sheet is suitable for ground and upper floor installations, making it a versatile choice for diverse operational settings.

Key Features

Features Description
Material High-grade synthetic composite material including Nitrile Rubber, Cork, Synthetic Fibre, and other compounds
Water and Oil Resistance Resistant to water, oils, lubricating oils, and fuels commonly found in shop floors
Load Capacity Suitable for machine weights from 2 to 5 Kg
Thickness 20 mm for effective shock absorption
Natural Frequency 15 - 35 Hz for optimal vibration damping
Coefficient of Friction 0.8 for secure placement
Temperature Range -20 to +70 °C for versatile operational environments
Hardness Rating Shore A hardness of 80-82 for durability
Color Options Available in Green, Grey, and Black
Weight 7.3 Kg
Attributes Description
Size 500x500x20 mm
Natural Frequency (Hz) 15 - 35 Hz
Thickness (mm) 20 mm
Coefficient of Friction 0.8
Shore A Hardness 80 - 82
Working Temperature Range (°C) -20 to +70
Weight (Kg) 7.3 Kg
Color Green, Grey, Black
Material Composition Nitrile Rubber, Cork, Synthetic Fibre, High Grade Compounds

*Disclaimer: This above description has been AI generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.

Be the first to write a review

  • Incorporation Type

  • GST

  • GST Registration Date

  • Number of Employees

  • Import Export Code (IEC)

  • Year of Establishment

  • Nature of Business

  • GlobalLinker Member Since

Brand: DYNEMECH

Country of Origin: India

Dynemech Anti-vibration Ds1 Insulation Plate is made from high grade synthetic composite material. This sheet is resistant to

water, oils, lubricating oils, fuels, etc. used in shop floor. This sheet has defined stress value and can be placed directly under the

machine as per the weight of the machine and no. of mounting positions. This sheet will not deform plastically, if the weight of

machine does not exceed maximum load value of this insulation plate.


Application:Light Weight Presses, Tool Room Machines, Compressors etc. on Ground Floor as well as upper Floors.




*****

Dynemech Anti-vibration Ds1 Insulation Plate is made from high grade synthetic composite material. This sheet is resistant to

water, oils, lubricating oils, fuels, etc. used in shop floor. This sheet has defined stress value and can be placed directly under the

machine as per the weight of the machine and no. of mounting positions. This sheet will not deform plastically, if the weight of

machine does not exceed maximum load value of this insulation plate..


Application:Light Weight Presses, Tool Room Machines, Compressors etc. on Ground Floor as well as upper Floors.


Size :500x500x20mm

Load Capacity (Kg.):02 to 05

Natural Frequency (Hz):15-35

Thickness (mm):20

Coeff. of Friction:0.8

Shore A Hardness:80-82

Working Temp Range °C:-20 to +70

Weight ( Kg.):7.3

Material: Nitrile Rubber, Cork, Synthetic Fibre and Other High Gread Compounds.

Colour:Green, Grey, Black

*****
