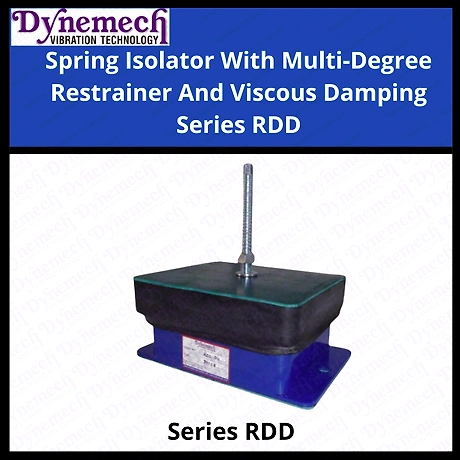

The RDD Series Vibration Control Spring Isolators with Integrated Snubber Systems are engineered to provide exceptional vibration isolation for heavy machinery and rotating equipment. Combining advanced spring technology with viscous damping, these isolators mitigate vibration transmission effectively, enhancing both operational efficiency and the longevity of equipment. With a load capacity of 128 kg, the RDD-E2 model ensures superior performance in critical applications such as presses, hammers, and diesel generators. The isolator's natural frequency range of 3.5 to 11 Hz is designed to accommodate various machinery, minimizing resonance issues during operation. For industrial applications requiring precise vibration control, the Dynemech RDD series stands out as a comprehensive solution for noise and vibration dampening.
Key Features
| Features | Description |
|---|---|
| Model | RDD-E2 |
| Load Capacity | 128 Kg |
| Height Under Load | 103 mm |
| Free Height | 112 mm |
| Bolt Size | M16x2.0x150 |
| Top Plate Dimensions | 232 x 207 mm |
| Bottom Plate Dimensions | 271 x 176 mm |
| Center to Center Dimensions | 241 mm |
| Natural Frequency Range | 3.5 - 11 Hz |
| Damping Type | Viscous Damping |
| Attributes | Description |
|---|---|
| Model Number | RDD-E2 |
| Maximum Load | 128 Kg |
| Height Under Load (HO) | 103 mm |
| Free Height (HI) | 112 mm |
| Bolt Specifications | M16x2.0x150 |
| Top Plate Size (AXB) | 232 x 207 mm |
| Bottom Plate Size (CXD) | 271 x 176 mm |
| Center Hole Distance (CC) | 241 mm |
| Natural Frequency Range | 3.5 - 11 Hz |
| Damping System | Integrated Snubber and Viscous Damping |
*Disclaimer: This above description has been AI generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Brand: DYNEMECH
Country of Origin: India
Dynemech is providing anti vibration solutions to the Indian Industry for the last 10 years. We are the only company to provide almost all types of vibration control solutions under one roof. Our product range consists of stud mounts for very small machines to wedge mounts for precision machine tools, along with air springs for very low natural frequency vibration damping to spring isolators for heavy presses, hammers, gen sets etc. A spring isolator gives desired natural frequency to obtain phase difference in the frequencies for a rotating machine. Viscous Damping is an important feature of an isolation system.
Model:RDD-E2 Load(Kg):128
Height Under Load HO(mm):103 Free Height HI (mm):112
Bolt Size: M16x2.0x150 Top Plate AXB(mm):232X207
Bottom Plate CXD(mm):271X176 CC(mm):241
Natural Frequency Range(Hz):3.5-11
Dynemech Spring Isolator
Dynemech is providing anti vibration solutions to the Indian Industry for the last 10 years. We are the only company to provide almost all types of vibration control solutions under one roof. Our product range consists of stud mounts for very small machines to wedge mounts for precision machine tools, along with air springs for very low natural frequency vibration damping to spring isolators for heavy presses, hammers, gen sets etc. A spring isolator gives desired natural frequency to obtain phase difference in the frequencies for a rotating machine. Viscous Damping is an important feature of an isolation system. In most cases viscous damping is required to limit excessive movement which could occur as a machine operates at a speed near to, or coinciding with the resonant frequencies of the system. Generally this problem arises during slow run up and run down of rotating machines and during impact at each stroke in presses and hammers.
Model:RDD-E2 Load(Kg):128
Height Under Load HO(mm):103 Free Height HI (mm):112
Bolt Size: M16x2.0x150 Top Plate AXB(mm):232X207
Bottom Plate CXD(mm):271X176 CC(mm):241
Natural Frequency Range(Hz):3.5-11
