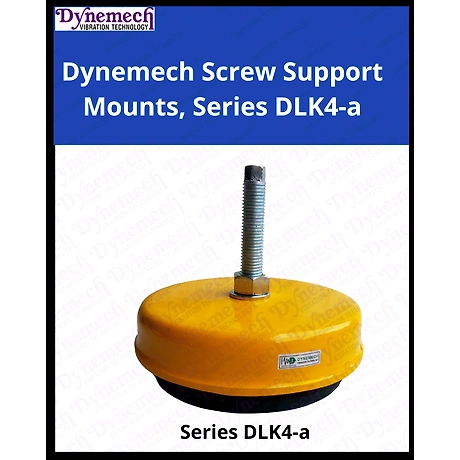

Dynemech Screw Support Mounts, Series DLK4-a, are designed as effective vibration dampers suitable for various industrial machines that require stable leveling and low frequency vibration attenuation. Constructed from high-quality steel, these mounts feature a unique design consisting of a cover plate and a dimpled bottom plate that securely holds the insulation plate—facilitating easy installation and precise leveling through bolt adjustments. With a significant load capacity of 4000 Kg per piece and a robust structure capable of withstanding working temperature ranges from -15 to 80°C, these mounts are ideal for heavy industrial applications including CNC machines, textile machines, power presses, and more. Their composite base pad provides superior vibration isolation and resistance to a wide range of chemicals, lubricants, and coolants, thereby extending machinery lifespan and improving operational safety. The DLK Series is the go-to solution for enhancing performance and maintaining structural integrity across diverse manufacturing environments.
Key Features
Features | Description |
---|---|
Load Capacity | 4000 Kg per piece |
Material | Steel body with composite insulation |
Height | 80 mm |
Diameter | 238 mm |
Bolt Size | M24X3.0X150 mm |
Adjustment Range | 20 mm |
Working Temperature Range | -15 to 80 °C |
Weight | 8 Kg |
Applications | Textile Machines, CNC Machines, Power Presses, Printing and Packaging Machines, Compressors, etc. |
Vibration Damping | Effective at low frequencies |
Attributes | Description |
---|---|
Construction Material | Steel |
Insulation Material | Composite |
Height | 80 mm |
Diameter | 238 mm |
Maximum Load | 4000 kg/unit |
Bolt Diameter | M24 |
Bolt Length | 150 mm |
Adjustment Range | 20 mm |
Temperature Range | -15 to 80 °C |
Weight | 8 Kg |
Key Words
*Disclaimer: This above description has been AI generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Brand: DYNEMECH
Country of Origin: 101
Dynemech Screw Support Mounts Series DLK are simple and effective vibration dampers for machines with respective holes in the base. These mounts offer both low frequency attenuation and stable machine levelling.
The DLK Series of Vibration damping and leveling mounts provide fast and easy installation of machines. These Anti-vibration mounts provide enhanced component finish/part tolerance and extend tool and machinery life. The machine mounts provide improved health protection and better structural safety. DLK series Anti-vibration mounts have steel body and are used for machines having mounting holes in the base. This leveling mount has a cover plate and dimpled bottom plate holding the insulation plate. Leveling is done by tightening the bolt which lifts the cover plate with the machine foot.
The DLK Series of Vibration damping and leveling mounts provide fast and easy installation of machines. These Anti-vibration mounts provide enhanced component finish/part tolerance and extend tool and machinery life. The machine mounts provide improved health protection and better structural safety. DLK series Anti-vibration mounts have steel body and are used for machines having mounting holes in the base. This leveling mount has a cover plate and dimpled bottom plate holding the insulation plate. Leveling is done by tightening the bolt which lifts the cover plate with the machine foot. The vibration insulating Base pad is made of composite material at varying composition giving different natural frequencies to provide vibration damping solutions to all types of industrial machines. These vibration isolation plates are resistant to water, almost all the coolants, chemicals, fuels, lubricating oils used in the modern machine shop.Â
Application:Textile Machines, CNC Machines, Power Presses, Plastic Injection Moulding Machines Pressure Die Casting Machines, Printing and Packaging Machines, Compressors, Grinding Machines and All types of Heavy Industrial Applications.
Size :Dia-238(mm), Height-80(mm)
Load Capacity (Kg.):4000 Kg/pc
Bolt Size: M24X3.0X150mm
Adjustment
range (mm):20
Working Temp Range °C:-From -15 to 80
Weight ( Kg.):8 Kg.
*****
