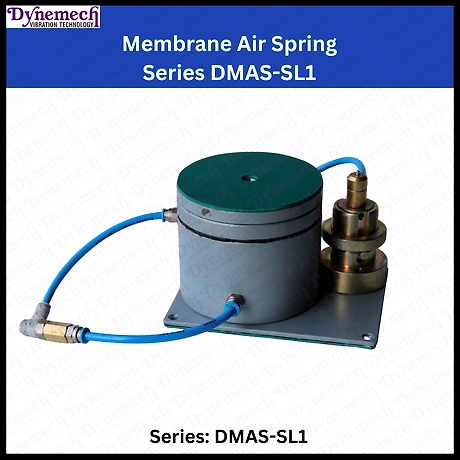

Dynemech Membrane Air Spring Series DMAS-SL1

Brand: DYNEMECH

Inclusive of all taxes

The Dynemech Membrane Air Spring Series DMAS-SL1 is a cutting-edge pneumatic isolator designed for precise 3-point levelling applications. Featuring three master pneumatic isolators, this system includes a self-levelling plunger mechanism that serves as the load sensing and height-controlling element. The lightweight aluminum body enhances durability while allowing for easy installation in a variety of settings. With a split inner chamber that manages load and damping volumes effectively, the DMAS-SL1 provides users with adjustable damping capabilities of up to 20%, enabling fine-tuning for optimal performance. This product is equipped with a pressure regulator and distributor to ensure a steady supply of clean, dry air, which is essential for its operation. Safety is a priority; the integrated safety valve protects the diaphragm from over-inflation, ensuring reliability during operation. Additionally, a levelling nut on the plunger mechanism allows for final precise adjustments, achieving exceptional levelling accuracies of ±0.015 mm or ±0.15 mm based on specific application needs. With a natural frequency range of 2.5-3 Hz, the DMAS-SL1 offers superior vibration isolation and stability. Ideal for industrial applications that demand precision, this isolator facilitates the performance of heavy machinery at various load capacities.

Key Features

Features Description
Model DMAS-SL1
Damping Capacity Adjustable up to 20% manually
Load Capacity at 4 bar 120 Kg to 1400 Kg
Load Capacity at 6 bar 180 Kg to 2100 Kg
Self-Leveling Repeatability ±0.015 mm
Natural Frequency 1.5-2.0 Hz
Temperature Range -20°C to +70°C
Material Lightweight Aluminum Body
Delivery Time 4 to 5 days
Price Rs. 34,000/- each
Attributes Description
Diameter 110 mm to 250 mm
Height 102 mm to 110 mm
Length 190 mm to 330 mm
Weight (for 4 Nos.) 10 Kg
Box Size (4 Nos.) 14"x14"x8"

*Disclaimer: This above description has been AI generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.

Be the first to write a review

  • Incorporation Type

  • GST

  • GST Registration Date

  • Number of Employees

  • Import Export Code (IEC)

  • Year of Establishment

  • Nature of Business

  • GlobalLinker Member Since

Brand: DYNEMECH

Country of Origin: India

Dynemech DMAS-SL1 system consists of three master pneumatic isolators for 3-point precision levelling. Each pneumatic damping isolator consists of a self-levelling plunger mechanism. Which is the load sensing, and heigh-controlling element. The system is supplied with pressure regulator, distributor, Clean dry air is required to be supplied to the system. The DMAS-SL1 is lightweight aluminium body. The inner chamber is split into two parts i.e. load volume and damping volume. damping up to 20% can be adjusted using external valve manually. A thin reinforced elastomeric diaphragm supports the load. A safety valve protects diaphragm from over inflation. The final precise levelling of the system can be done using levelling nut provided on the plunger mechanism. Available levelling accuracies are ± 0.015 mm and ± 0.15 mm depending upon the application requirements. Natural frequency of the DMAS-SL1 system is 2.5-3 Hz.

Dynemech DMAS-SL1 system consists of three master pneumatic isolators for 3-point precision levelling. Each pneumatic damping isolator consists of a self-levelling plunger mechanism. Which is the load sensing, and heigh-controlling element. The system is supplied with pressure regulator, distributor, Clean dry air is required to be supplied to the system. The DMAS-SL1 is lightweight aluminium body. The inner chamber is split into two parts i.e. load volume and damping volume. damping up to 20% can be adjusted using external valve manually. A thin reinforced elastomeric diaphragm supports the load. A safety valve protects diaphragm from over inflation. The final precise levelling of the system can be done using levelling nut provided on the plunger mechanism.

Model: DMAS-SL1

Dia: 110(mm) To 250(mm)

Height: 102(mm) To 110(mm)

Length: 190(mm) To 330(mm)

Load Capacity at 4 bar: 120(Kg) To 1400(Kg)

Load Capacity at 6 bar: 180(Kg) To 2100(Kg)

Self Levelling Repeatablity: ±0.0150(mm)

Natural Frequency Vertical(Hz): 1.5-2.0(Hz)

4 Nos. weight: 10 Kg

4 Nos. of Boxes: 1

Delivery Time: 4 To 5 Days

4 Nos. Box Size: 14"x14"x8"

Temperature: -20°C To +70°C

Price Range MIn: Rs.34000/- each
