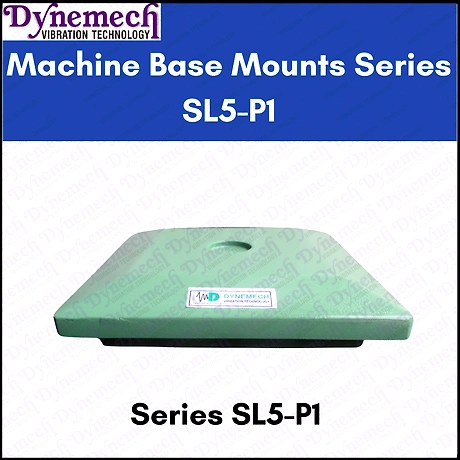

The Dynemech Machine Base Mounts, Series SL5-P1 is engineered specifically for light to medium weight machines, providing robust support and stability in various industrial applications. These mounts are ideal for setups requiring leveling screw support with tapped holes in the base. Designed for easy integration, they fit seamlessly into the machine base pocket, ensuring an organized and efficient workspace. With adjustable dimensions ranging from 80mm to 200mm in length, 64mm to 200mm in width, and 30mm to 39mm in height, these mounts offer a versatile solution to accommodate different machine specifications. Each unit boasts a load capacity between 350 Kgs to 1600 Kgs, ensuring it can support a variety of machinery with high reliability. The mounts function effectively within a natural frequency range of 18 Hz to 7 Hz, ensuring optimal performance while reducing vibrational impact. The coefficient of friction ranges from 0.8 to 0.9, promoting excellent stability, while the working temperature range of -16°C to 90°C allows for diverse operational settings. Crafted from durable cast iron and rubber, the mounts are designed to withstand wear and tear while being aesthetically distinguished by their green color.
Key Features
Features | Description |
---|---|
Suitable for | Light to medium weight machines |
Load Capacity | 350 Kgs to 1600 Kgs per piece |
Dimension Range | Length: 80mm to 200mm, Width: 64mm to 200mm, Height: 30mm to 39mm |
Natural Frequency | 18 Hz to 7 Hz |
Coefficient of Friction | 0.8 to 0.9 |
Working Temperature Range | -16°C to 90°C |
Weight Range | 0.5 Kg to 2.5 Kg |
Material | Cast Iron and Rubber |
Color | Green |
Application | Perfect for leveling screw support and drilled hole setups. |
Attributes | Description |
---|---|
Length | 80mm to 200mm |
Width | 64mm to 200mm |
Height | 30mm to 39mm |
Load Capacity | 350 Kgs to 1600 Kgs per piece |
Natural Frequency | 18 Hz to 7 Hz |
Coefficient of Friction | 0.8 to 0.9 |
Working Temperature Range | -16°C to 90°C |
Weight | 0.5 Kg to 2.5 Kg |
Material | Cast Iron, Rubber |
Color | Green |
*Disclaimer: This above description has been AI generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Brand: DYNEMECH
Country of Origin: India
Dynemech Machine base mounts series SL5-P1 is Machine Base mounts used for light to medium weight machines suited to levelling screw support or having tapped hole in the base. These are suitable for placing in the pocket of the machine base.
Length – 80(mm) To 200(mm)
Width – 64(mm) To 200(mm)
Height- 30(mm) To 39(mm)
Load Capacity (Kg/pc.) 350 Kgs/pc To 1600 Kgs/pc
Natural Frequency (Hz):18 Hz To 7 Hz
Coeff. of Friction: 0.9 To 0.8
Working Temp Range °C: -16 to 90
Weight ( Kg.):0.5 Kg To 2.5 Kgs
Dynemech Machine base mounts series SL5-P1 is Machine Base mounts used for light to medium weight machines suited to levelling screw support or having tapped hole in the base. These are suitable for placing in the pocket of the machine base.
Length – 80(mm) To 200(mm) Width – 64(mm) To 200(mm) Height- 30(mm) To 39(mm)
Load Capacity (Kg/pc.) 350 Kgs/pc To 1600 Kgs/pc
Natural Frequency (Hz):18 Hz To 7 Hz
Coeff. of Friction: 0.9 To 0.8
Working Temp Range °C: -16 to 90
Weight ( Kg.):0.5 Kg To 2.5 Kgs
Material: Cast Iron, Rubber
Colour: Green
