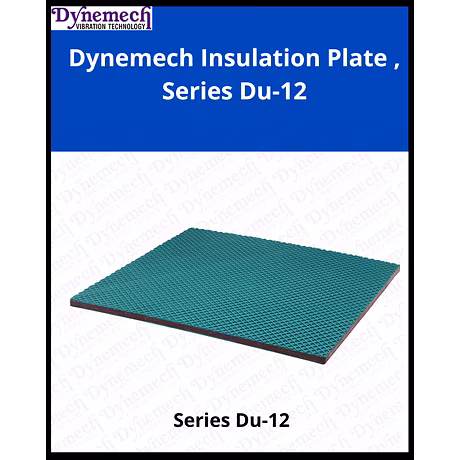

Dynemech Anti Vibration Rubber Sheet , Series Du-12

Brand: DYNEMECH

Inclusive of all taxes

The Dynemech Anti-Vibration Rubber Sheet, Series DU-12, is a premium-quality insulation solution designed for industrial applications where vibration dampening is crucial. Constructed from high-grade synthetic composite materials, this insulation sheet provides superior resistance against various substances commonly found on shop floors, including water, oils, lubricating oils, and fuels. Its robust design comes with a defined stress value, allowing direct placement under machinery according to the machine's weight and number of mounting positions. Notably, these plates maintain their structural integrity without deforming plastically, as long as the machine's weight does not exceed the insulation plate's maximum load capacity. The DU-12 insulation sheet is ideal for a range of applications, including Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, and Printing and Textile Machines, particularly those experiencing high axial forces. With dimensions of 500x500x12mm, this product supports a load capacity ranging from 3 to 9 kg, operates efficiently within a working temperature range of -20 to +70 degrees Celsius, and comes in diverse colors such as green, grey, and black.

Key Features

Features Description
Material Nitrile Rubber, Cork, Synthetic Fibre, and Other High-Grade Compounds
Size 500x500x12 mm
Load Capacity 3 to 9 kg
Natural Frequency 18-35 Hz
Thickness 12 mm
Coefficient of Friction 0.9
Shore A Hardness 90-92
Working Temperature Range -20 to +70 °C
Weight 4.1 kg
Color Options Green, Grey, Black
Attributes Description
Stress Value Defined based on machine weight and mounting positions
Deformation Resistance No plastic deformation within load limits
Applications Tool Room Machines, Plastic Injection Moulding, Pressure Die Casting, Printing and Textile Machines

Key Words

*Disclaimer: This above description has been AI generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.

Be the first to write a review

  • Incorporation Type

  • GST

  • GST Registration Date

  • Number of Employees

  • Import Export Code (IEC)

  • Year of Establishment

  • Nature of Business

  • GlobalLinker Member Since

Brand: DYNEMECH

Country of Origin: India

Dynemech Anti-Vibration Du-12 Insulation Sheet is made from high grade synthetic composite material. This sheet is resistant to water,

oils, lubricating oils, fuels etc. used in the shop floor. This sheet has defined stress value and can be placed directly under the machine as

per the weight of the machine and no. of mounting positions. This plates will not deform plastically, if the weight of machine does not

exceed maximum load value of this Insulation plate.


Application:Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Printing and Textile Machines (For Machines having high axial forces.)




*****

Dynemech Anti-Vibration Du-12 Insulation Sheet is made from high grade synthetic composite material. This sheet is resistant to water,

oils, lubricating oils, fuels etc. used in the shop floor. This sheet has defined stress value and can be placed directly under the machine as

per the weight of the machine and no. of mounting positions. This plates will not deform plastically, if the weight of machine does not

exceed maximum load value of this Insulation plate.


Application:Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Printing and Textile Machines (For Machines having high axial forces.)


Size :500x500x12mm

Load Capacity (Kg.):03 to 09

Natural Frequency (Hz):18-35

Thickness (mm):12

Coeff. of Friction:0.9

Shore A Hardness:90-92

Working Temp Range °C:-20 to +70

Weight ( Kg.):4.1

Material: Nitrile Rubber, Cork, Synthetic Fibre and Other High Gread Compounds.

Colour: Green, Grey, Black

*****
