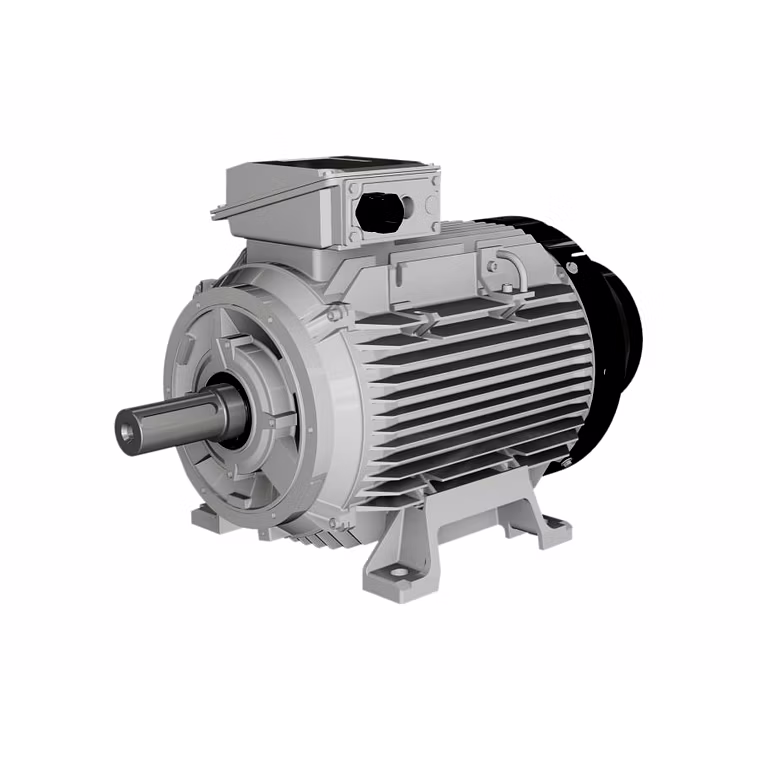

The W Series Ex e Increased Safety motors are specifically engineered for use in hazardous environments where enhanced safety measures are critical. These high-performance motors range in voltage from 200V to 690V and are available in frame sizes 80 to 355, with power outputs from 0.75kW to 315kW. Constructed from durable cast iron, these motors ensure longevity and reliability even in the most challenging conditions. The W Series boasts a range of protection ratings (IP55, IP56, IP65, IP66) to safeguard against dust and water ingress, making them suitable for diverse industrial applications. With a wide array of mounting arrangements and a robust temperature class range, they provide versatility in installation. Efficiency rated at IE3 ensures reduced energy consumption while maintaining performance, thereby lowering operational costs. The motors are fully compliant with international ATEX and IEC-EX certification standards, making them ideal for industries such as petrochemicals, pharmaceuticals, oil, and gas. Our stock includes a vast selection of regular rating motors, and we offer non-stock motors with flexible delivery times tailored to our customers’ needs. Our competitive pricing and favorable commercial terms, along with our recognized vendor status among major corporate houses and MNCs, reinforce our commitment to providing high-quality electric solutions.
Key Features
Features | Description |
---|---|
Voltage Range | 200-690V |
Frame Size | 80 - 355 |
Frame Construction | Cast iron |
Power Output | 0.75 - 315kW |
Degree of Protection | IP55, IP56, IP65, IP66 |
Mounting Arrangements | B3, V5, V6, B5, V1, V3, B35 |
Temperature Class | 155 (F) according to 130 (B) or 180 (H) according to 155 (F) |
Efficiency Class | IE3 |
Cooling Method | IC411, IC410, IC416, IC418 |
Number of Poles | 2, 4, 6, 8 |
Certifications | ATEX, IEC-EX |
Attributes | Description |
---|---|
Voltage | 200-690V |
Power | 0.75 - 315kW |
Frame Material | Cast Iron |
IP Rating | IP55, IP56, IP65, IP66 |
Mounting Types | B3, V5, V6, B5, V1, V3, B35 |
Efficiency Rating | IE3 |
Cooling Method | IC411, IC410, IC416, IC418 |
Number of Poles Options | 2, 4, 6, 8 |
Certification Compliance | ATEX, IEC-EX |
Temperature Class | 155 (F), 130 (B), 180 (H) |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Brand: Wolong
Country Of Origin: India
Series:W
Voltages:200-690V line operation
Frame size:80 - 355
Frame construction:Cast iron
Power output:0,75 - 315kW
Degree of protection:IP55, IP56, IP65, IP66
Mounting arrangments:B3, V5, V6, B5, V1, V3, B35
Temperature class: 155 (F) according to 130 (B) or 180 (H) according to 155 (F)
Efficiency class:IE3
Cooling method:IC411, IC410, IC416, IC418
Number of poles: 2,4, 6, 8
Certificates: ATEX, IEC-EX
