The LIFTIT Chain Pulley Block 1 Ton Hoist is specifically designed for efficient and effective lifting applications, offering a robust yet lightweight solution for your material handling needs. Engineered with advanced technology, this hoist significantly reduces lifting forces by up to 35%, which enhances overall operational speed and efficiency. Made with high-quality hardened triple spur gears and grade 80 alloy steel load chains, it ensures durability and longevity under demanding conditions. The compact design of the LIFTIT chain block makes it ideal for low headroom applications, while the reinforced double pawl brake system ensures safety with high braking efficiency. Additionally, its open frame design allows for easy maintenance and inspections, making it an essential tool for any lifting operation.
Key Features
| Features | Description |
|---|---|
| Lifting Capacity | 1 Ton |
| Lifting Height | 3 Meters |
| Load Chain Diameter | 6 x 18 mm |
| Hand Chain Diameter | 5 x 22.2 mm |
| Weight | Net 11.30 kg, Gross 12.50 kg |
| Packing Size | 29 x 22 x 18 CM |
| Effort Required for Maximum Load | 309 N |
| Reinforced Brake System | Double Pawl Brake |
| Construction Material | Grade 80 Alloy Steel and Zinc Plated Hand Chains |
| Compact Design | Suitable for Low Head Room Applications |
| Running Test Load | 1500 Kg |
| Attributes | Description |
|---|---|
| Model | 1 Ton Hoist |
| Extra Lift Weight | 1.62 Kg per meter |
| Overall Dimensions | A = 140 mm, B = 158 mm, C = 317 mm, D = 35.5 mm, K = 28 mm |
| Meets Standards | All Required World Standards for Lifting Chain Blocks |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Country Of Origin: India

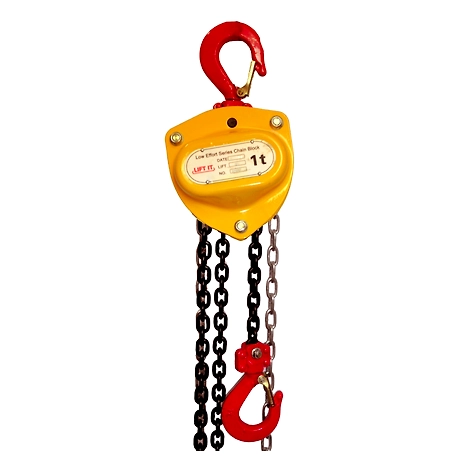

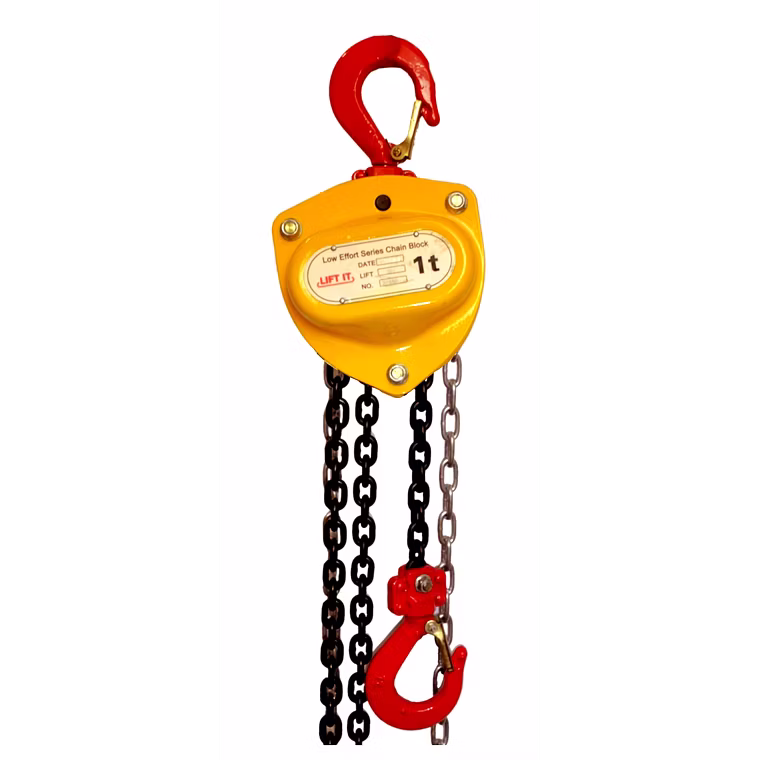

LIFTIT Chain Pulley Block 1 Ton Hoist
LIFTIT BRAND LOW EFFORT AND HIGH SPEED CHAIN PULLEY BLOCKS
Reduces and Minimises the Lifting forces upto almost 35% and makes the Chain Blocks work on higher speeds,

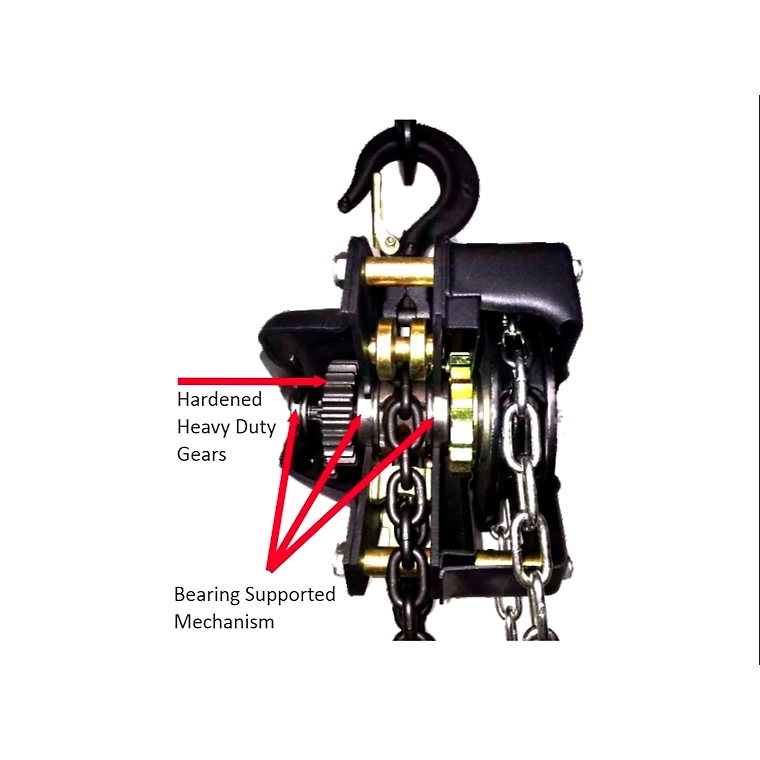

These Chain Blocks are Made from the Highest Quality Hardened Triple Spur Gears, Grade 80 Alloy Steel Load Chains and Zinc Plated Hand Chains.
Special Features of LIFTIT BRAND LOW EFFORT AND HIGH SPEED CHAIN PULLEY BLOCKS
MADE BY SPECIAL NEW TECHNOLOGY OF LOW EFFORT and HIGH SPEED MECHANISM
Meets all the Required world Standards for Lifting Chain Blocks
Light weight and High Strength Grade 80 Alloy Steel Chain
Compact Design Makes it Eligible for Low Head Room applications.
Reinforced Double Pawl Brake System and Large Dia Pawl Springs makes higher braking efficiency.
Open Frame design makes it easy for maintenance and periodic inspections,
Technical Specification
Model 1 Ton
Capacity 1 Ton
Standing Lifting Height 3 Meter and for extra length contact us
Running test load 1500 Kg
Effort required to lift max
Load 309 N
Load Chain Dia 6 x 18 mm
Hand Chain Dia 5 x 22.2 mm
Net - Gross Weight 11.30 - 12.50 Kg
Packing Size 29 x 22 x 18 CM
Extra weight meter of extra
lift 1.62 Kg

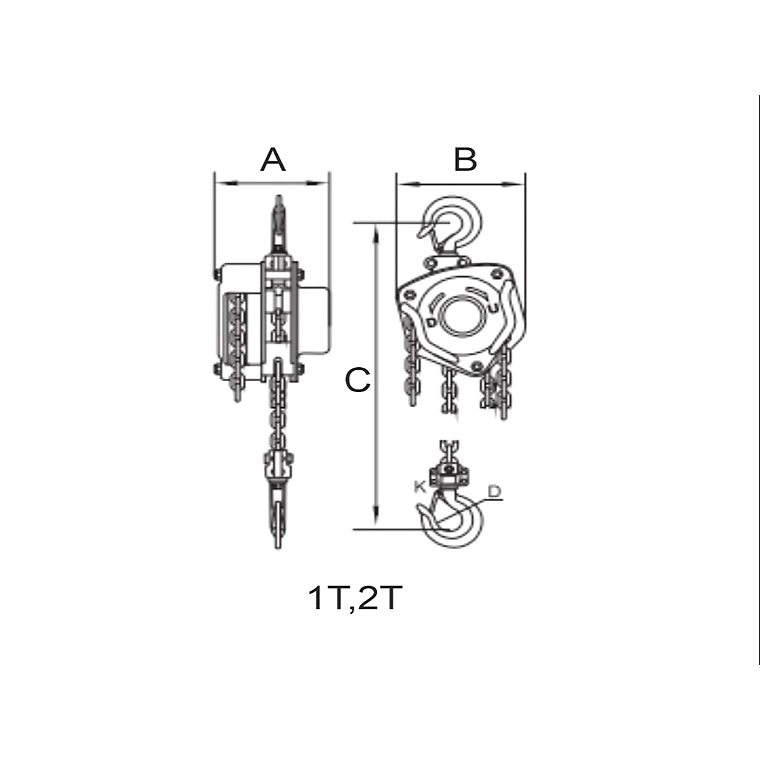

Dimension
A = 140 MM
B = 158 MM
C = 317 MM
D = 35.5 MM
K = 28 MM
