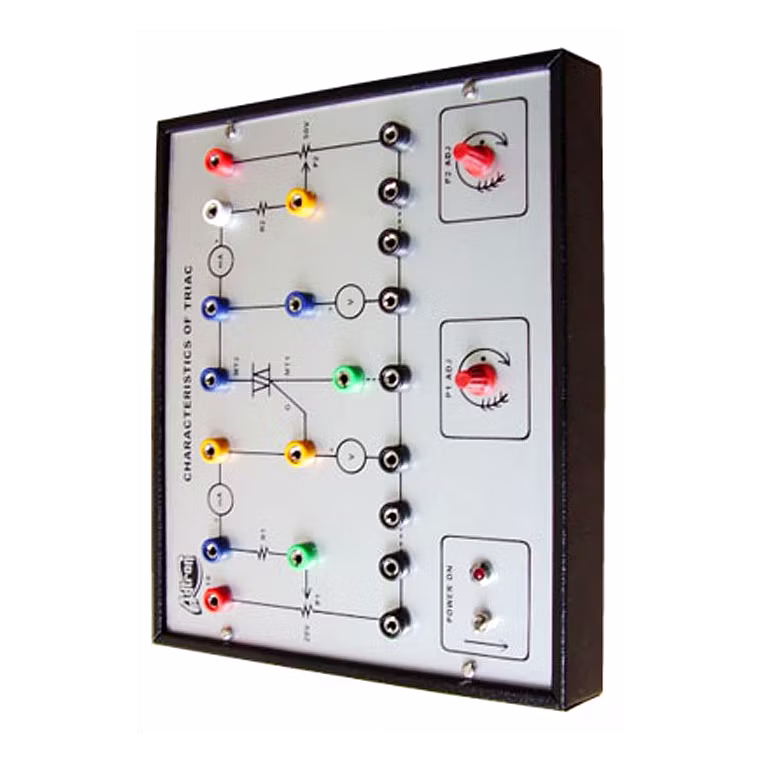

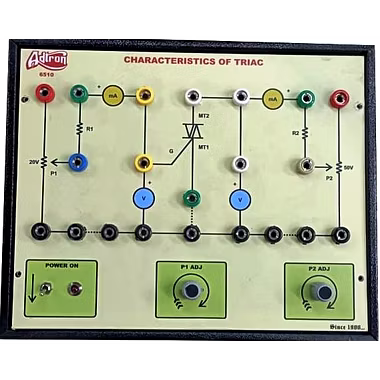

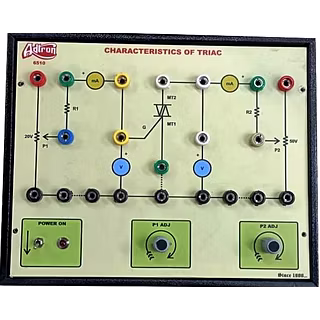

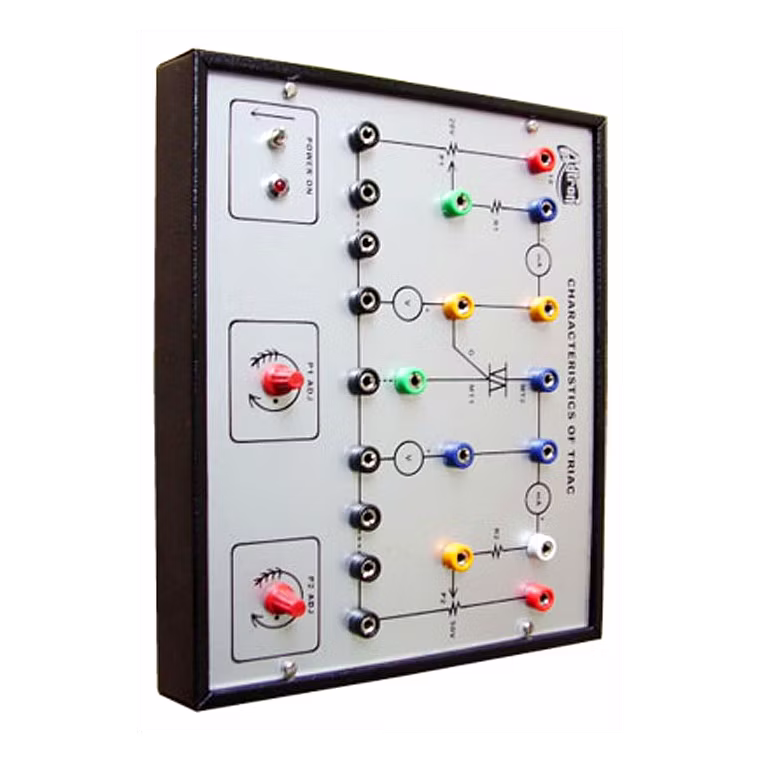

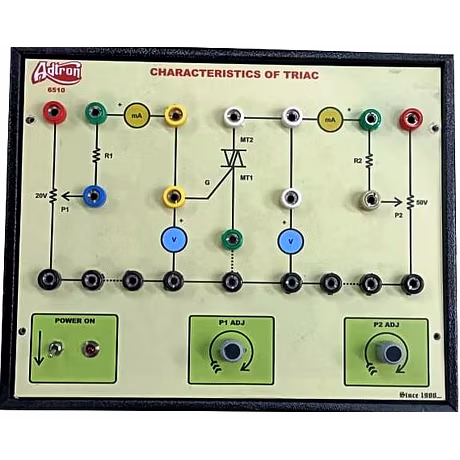

The Triac Trainer is a specialized, self-contained training kit designed specifically for educational and professional purposes in the field of basic electronics. It focuses on studying and demonstrating the bi-directional characteristics of a Triode Alternating Current (Triac) device under varying gate current conditions. With built-in components including a Triac, isolated variable DC power supplies (0-50V and 0-20V), and multi-colored test points, this trainer enables users to analyze forward and reverse breakover voltages, negative resistance regions, and VBO symmetry. The unit comes housed in a rugged, ergonomically designed powder-coated metal cabinet with a neat circuit layout on the front panel. Key features include mains ON/OFF control with LED indication, capability for external meter connections, and a 230V, 50Hz power operation. The kit is accompanied by patch cords and a detailed instruction manual, making it an indispensable tool for teachers and students for in-depth practical learning and demonstration of Triac characteristics.
Key Features
| Features | Description |
|---|---|
| Self-contained Unit | Stand-alone trainer with built-in Triac and necessary components |
| Power Supplies | Two isolated DC unregulated variable supplies: 0-50V and 0-20V |
| Voltage Observation | Multi-colored 4mm test points to observe waveforms and voltages |
| External Meter Compatibility | Provision to connect external voltmeter and ammeter as required |
| Power Operation | Operates on 230V, 50Hz, single-phase AC mains with ON/OFF switch and LED indicator |
| Robust Housing | Ergonomically designed powder-coated metal cabinet with circuit layout on front panel |
| Instruction Manual | Comprehensive manual with theory and operating details included |
| Accessories Included | Five 4mm spring-loaded patch cords provided |
| Attributes | Description |
|---|---|
| Panel Size | 8 inches x 10 inches |
| Forward Breakover Voltage (V_FBO) | Determined experimentally via the kit |
| Reverse Breakover Voltage (V_RBO) | Determined experimentally via the kit |
| Negative Resistance Region | Observable for both +MT2 and -MT2 polarities with gate current variations |
| Delta V (ΔV) | Calculated to analyze VBO symmetry |
| Power Supply Input | 230V AC, 50Hz single phase |
| Test Points | Multi-coloured sturdy 4mm sockets |
| Patch Cords | Five numbers; 4mm-4mm terminated, spring loaded |
| Trainer Type | Triac characteristic trainer for educational use |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Brand: ADTRON
Country Of Origin: India
SALIENT FEATURES:
A characteristic of Triac is a versatile and well - designed self - contained trainer kit. It is a useful training tool for the teacher and the students for basic electronics.
OBJECTIVES:
Study, perform, demonstrate and plot the different characteristics of a bi - directional Triode ( Triac ) under different gate current conditions for.
+ MT2.
- MT2.
Determination of ( from graph ) :
Forward break over voltage ( VFBO ).
Reverse break over voltage ( VRBO ).
Negative resistance region, VBO symmetry and Delta V ( ∆V ).
SALIENT FEATURES:
Completely self - contained stand - alone unit.
Built - in Triac and other necessary components.
Built - in two isolated DC un - regulated variable power supplies of :
0 - 50V.
0 - 20V.
Mains ON / OFF switch with LED indicator for supply “ON”.
Multi - coloured sturdy 4mm test points are provided at various stages in the circuit to observe the waveforms, voltages and for necessary inter connections.
Provision for connecting external voltmeter / current meter as per requirement.
Housed in an elegant ergonomically designed powder coated metal cabinet with a well spread intelligently designed circuit layout on the front panel.
Working on 230V, 50Hz, single phase AC mains.
Panel Size : 8“ x 10”
ACCESSORIES:
4mm - 4mm terminated, sturdy, spring loaded patch cords :
Quantity : 05 numbers provided.
Strongly supported by a comprehensive instruction manual complete with theory and operating details :
Quantity : 01 number provided.
