The Measurement and Control of Temperature Using RTD Probe Trainer (Digital) with Heating Process is a specialized educational and industrial training tool designed for precise temperature measurement and control analyses using an RTD probe. This standalone unit integrates a PT-100 immersion type RTD probe with a digital temperature controller and indicator to facilitate hands-on learning and demonstration of closed-loop temperature control systems. The trainer features a 200W heating element capable of raising temperatures up to 700°C from ambient levels, allowing users to experience real heating processes in a controlled environment. Housed in a durable, powder-coated metal cabinet with an imported acrylic panel, the layout is user-friendly and engineered for easy operational access and observation. Equipped with a 3.5 digit digital display, the unit provides dual-mode readings for set temperature and actual temperature, ensuring clarity and precision in monitoring. Additional features include ON/OFF type temperature control, Wheatstone bridge sensor configuration for PT-100 RTD accuracy, multicolored test points for waveform and voltage measurements, and adjustable set points covering the full measurable range. This trainer is ideal for technical education institutes, research laboratories, and industrial training centers focused on process control, temperature instrumentation, and automation systems.
Key Features
| Features | Description |
|---|---|
| Measurement Parameter | Temperature using PT-100 RTD probe |
| Sensor Type | PT-100 immersion type probe with sheath, flange, and flying leads |
| Control Type | ON/OFF closed loop control system |
| Heating Unit Capacity | 200 Watts |
| Temperature Range | 0°C to 200°C (Sensor), Ambient to 700°C (System) |
| Display | 3.5 digit digital dual-mode readout (Set and Actual temperature) |
| Sensor Calibration Standard | DIN 43760, Class B accuracy |
| Excitation Source | DC regulated power supply |
| Controls | Set point adjust, Display mode control, Mains ON/OFF |
| Test Points | Multicolored test points at multiple circuit stages for observation |
| Attributes | Description |
|---|---|
| Measurement System | Transducer with electronic instrumentation |
| Sensor Configuration | Wheatstone bridge with RTD probe as one arm |
| Power Supply | 230V ±10% AC, 50Hz, Single Phase |
| Display Mode | Digital, dual-mode for set temperature and actual temperature |
| Enclosure | Powder coated metal cabinet with acrylic panel |
| Control System Type | ON/OFF control |
| Temperature Set Point | Adjustable across full temperature range |
| Sensor Accuracy | Class B PT-100 as per DIN 43760 |
| Test Points | Provided for waveform and voltage observation |
| Heating Process | Actual heating with 200W heating unit |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Brand: ADTRON
Country Of Origin: India
SALIENT FEATURES :

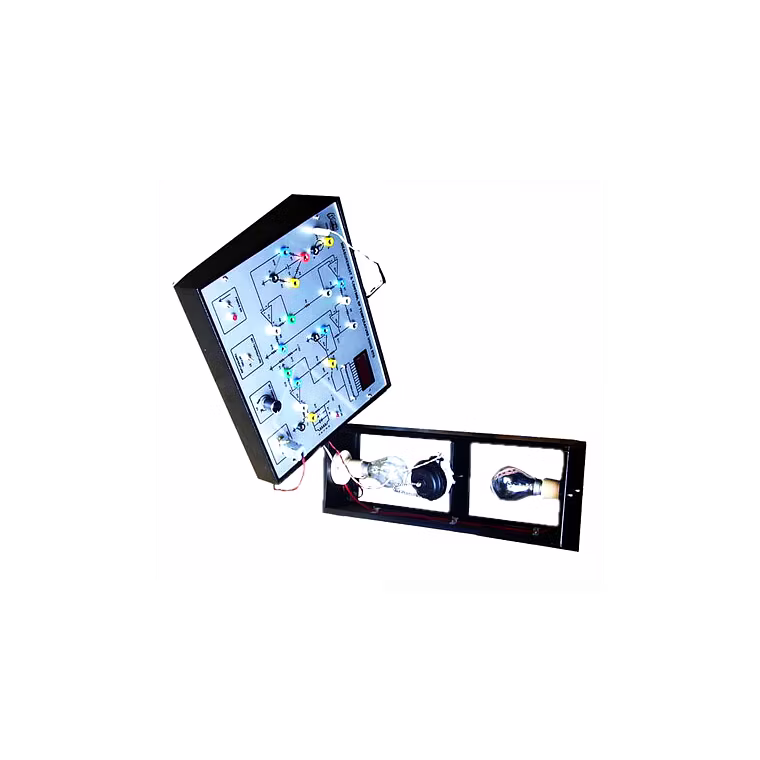

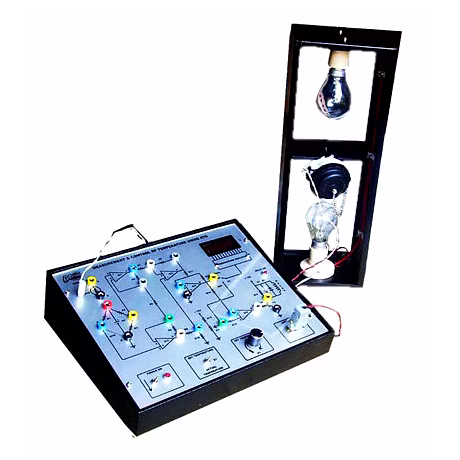

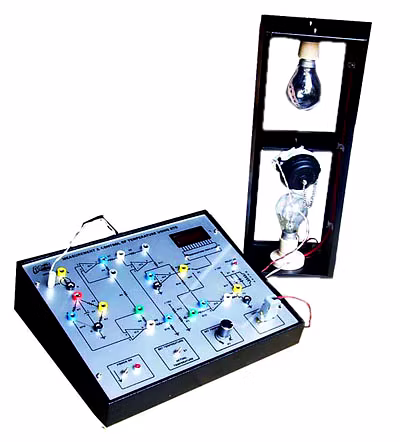

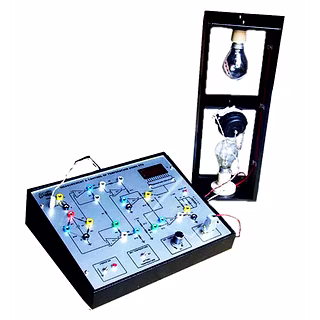

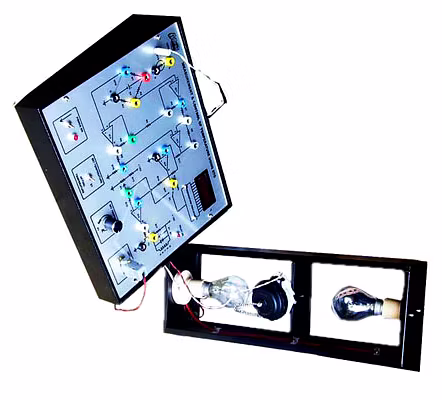

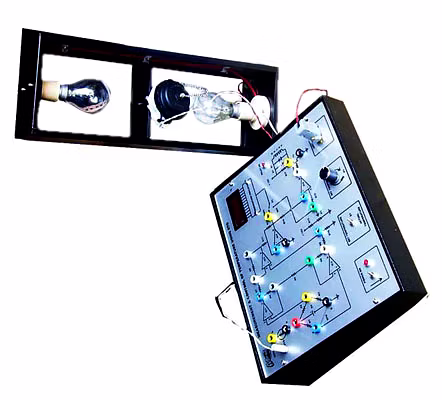

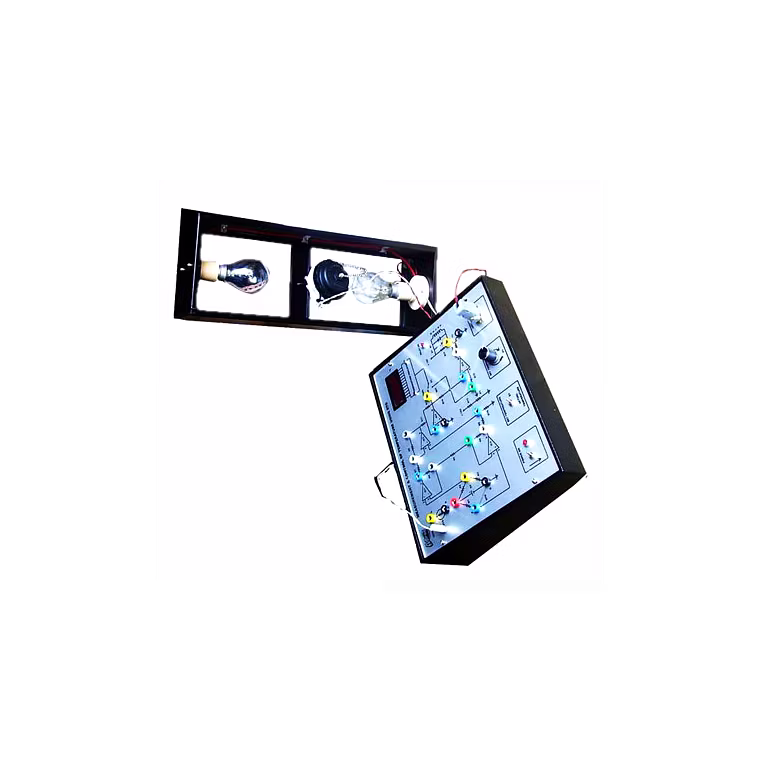

Temperature controller and indicator using RTD probe is a versatile self contained stand alone unit, useful in the study and demonstration of the principle and working of a temperature indicator and controller using RTD probe. An electronic closed loop temperature measuring and controlling system with variable set point, special heating unit and digital readout are provided. The trainer is enclosed in a specially designed users friendly elegant powder coated metal cabinet with intelligently designed layout on imported acrylic panel, are some of its other features.
TECHNICAL SPECIFICATIONS
Parameter Measured : Temperature.
Measurement System : Transducer with electronic instrumentation.
Control System : ON/OFF type.
Transducer : RTD probe.
Type : PT-100, immersion type probe in sheath with flange and flying leads.
Sensor Calibration : Standard PT-100 to DIN 43760.
Sensor Accuracy : Class B type.
Configuration : Bridge with one arm as RTD probe (Wheat-stone's bridge principle).
Sensor Range : 0 to 2000C.
System Range : Variable from ambient (room) temperature to 700C
Actual Heating Process : Heating unit of 200W capacity.
Excitation Source : DC Regulated source.
Set Point : Adjustable over full range
Readout : 3.5 digit digital display ; dual mode to read
a] Set temperature in 0C.
b] Actual temperature in 0C.
Controls : a] Set point controls.
b] Display mode control.
c] Mains ON/OFF control.
Test Points : Multicoloured test points are provided at various stages in the circuit
to observe waveforms and voltages.
Indicator : Mains ON/OFF.
Power Requirements : 230V, 10% AC, 50Hz, 1
