Product details

Brief Specifications

Display Type 7 Segment LED, Dual Display

Display Configuration 4 + 4 Digits

Output Contact 2 C/O SPST

Feature Memory Retention

Range 99.99 / 999.9 / 9999sec, 99.59min:sec / 999.9 / 9999min, 99.59hr:min / 999.9hr / 9999hr

Operating Modes Interval, ON Delay, Cyclic ON first, Cyclic OFF First, Forward - Pause - Reverse, Instantaneous + Delayed

Reset Front, Remote, Power Interruption

Counting Direction Up / Down

Supply Voltage 85 to 270V AC , 24V AC / DC

Description provided by A S Enterprises.

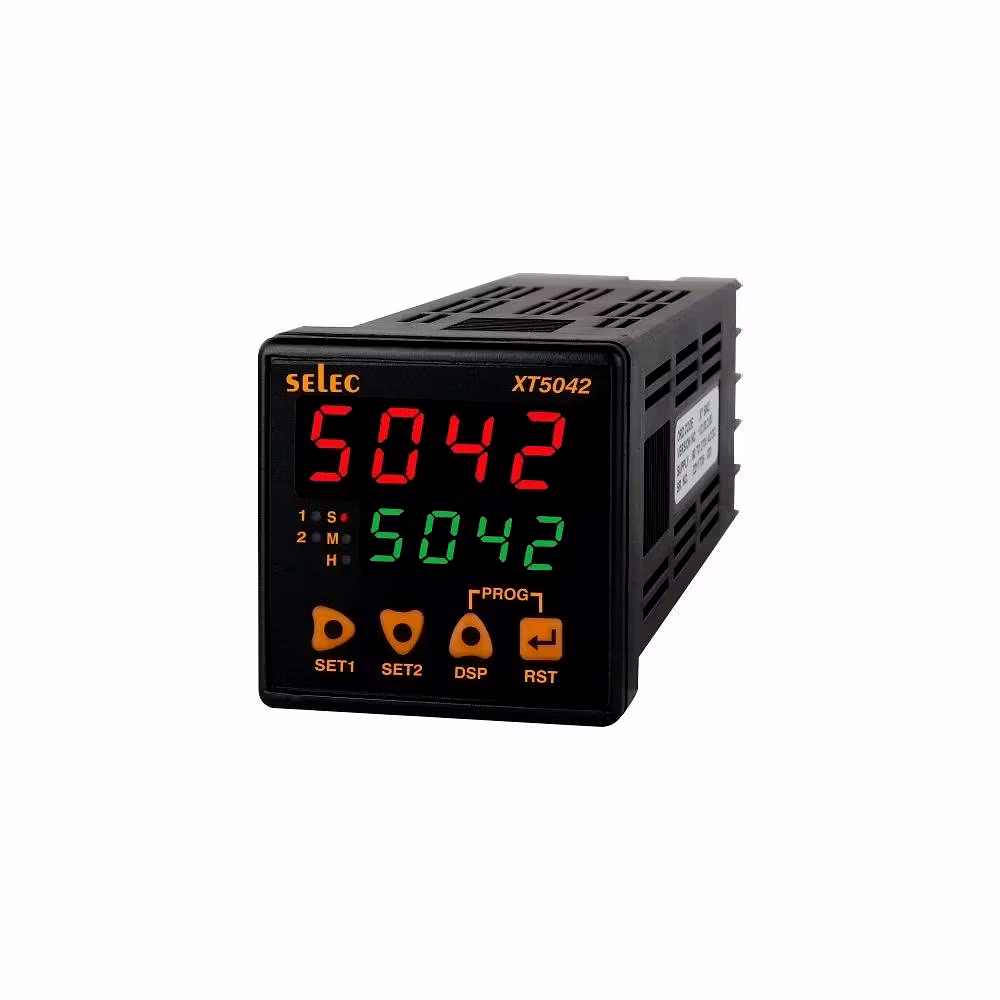

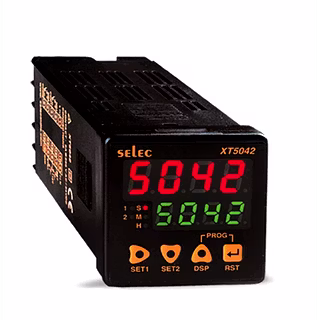

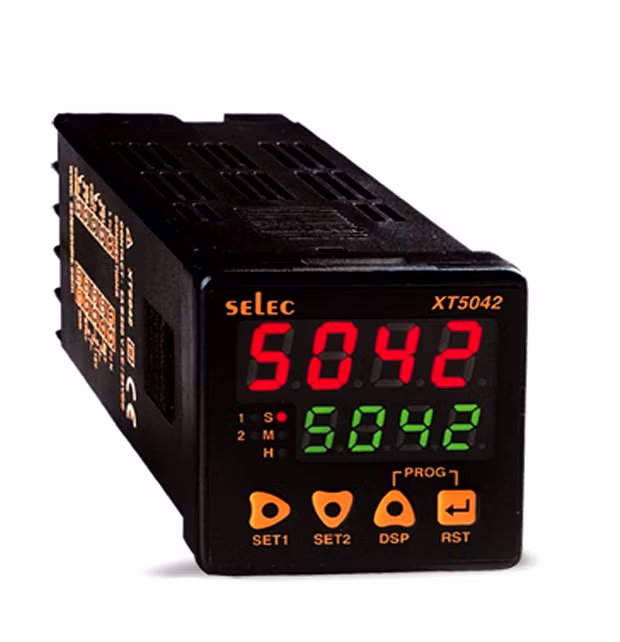

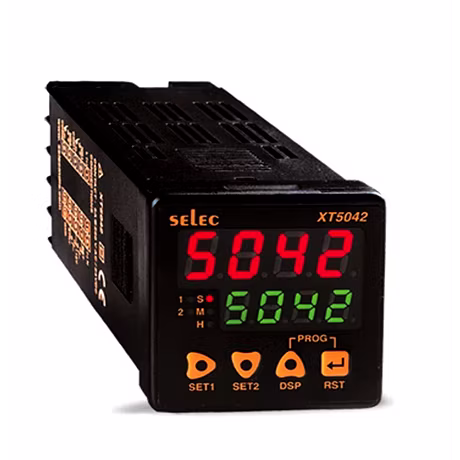

7 Segment LED, Dual Display (4 + 4 Digits)

7 Functions with 9 Time Ranges including Interval, ON Delay, Cyclic ON/OFF, Forward-Pause-Reverse, Instantaneous + Delayed

Two independently programmable set points for complex timing control

2 C/O SPST relay contacts

Batch counting and control capability with reset options

Universal: 85 to 270V AC, 24V AC/DC

Retains settings during power interruptions

Count Up / Count Down selectable

Panel Mount (48 x 48mm)

CE and UL certified for industrial safety and compliance

Specifications

Display Configuration

Dual 4-digit 7-segment LED

Time Ranges

From 99.99 sec to 9999 hr with various time formats (seconds, minutes, hours)

Operating Modes

Interval, ON Delay, Cyclic ON First, Cyclic OFF First, Forward-Pause-Reverse, Instantaneous + Delayed

Reset Methods

Front panel, remote input, power interruption

Output Type

2 Change Over (C/O) SPST relay outputs

Power Requirements

Universal supply voltage 85-270V AC and 24V AC/DC

Dimensions

48mm x 48mm panel mount size

LED Status Indications

Relay status, seconds, minutes, hours

Batch Function

Supports batch counting and programmable batch control

Certification

Certified to CE and UL standards

Use cases

Category

electrical equipment and supplies > electrical supplies > industrial power supplies

Primary application

Brand

a s enterprises

Product type

Product

Logistics & handling

Lead time

On request

Packaging

As per buyer requirement

Storage condition

As recommended by supplier

Origin

India

Form

As listed by supplier

Commercials A S Enterprises

Minimum order

1 Piece

Lead time

On request

Payment terms

As per negotiated commercial agreement

Frequently asked by buyers

Can the SELEC XT5042 maintain settings during power failures?

Yes, the XT5042 features memory retention that saves its timing and batch settings even during power interruptions, ensuring uninterrupted automation control.

What timing modes does the XT5042 support for complex industrial applications?

The XT5042 supports 7 operating modes including interval timing, ON delay, cyclic ON first, cyclic OFF first, forward-pause-reverse cycles, and combined instantaneous plus delayed functions, enabling flexible control sequences.

How does the dual set point functionality enhance process control?

Dual set points allow two independent timing thresholds within a single device, enabling control of multiple stages or outputs simultaneously, which reduces the need for multiple timers.

Is the power supply compatible with different industrial environments?

Yes, the universal power supply input accepts 85 to 270V AC and 24V AC/DC, making it suitable for a wide variety of industrial power environments globally.

What options are available for resetting the timer batch counts?

Batch counts and timing sequences can be reset from the front panel, through remote input signals, or automatically upon power interruption, allowing flexible integration with industrial processes.
