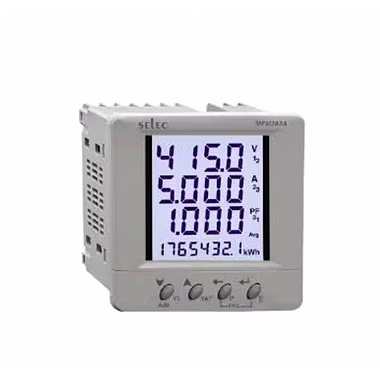

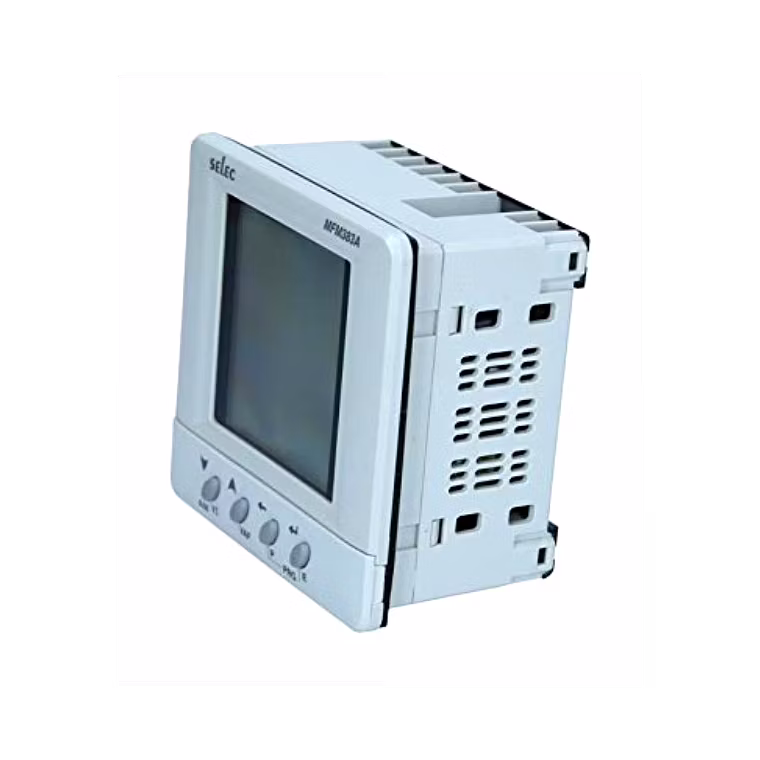

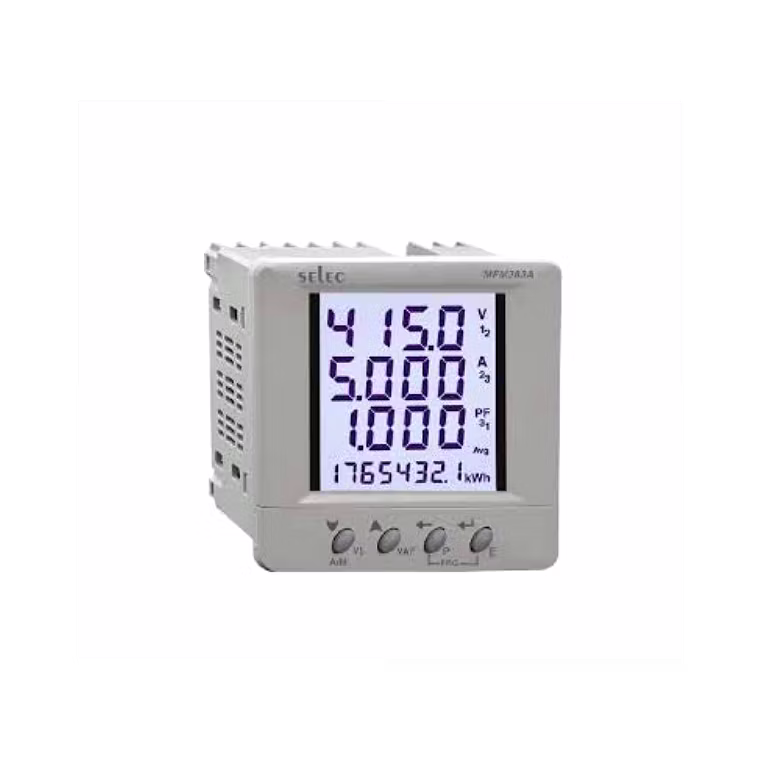

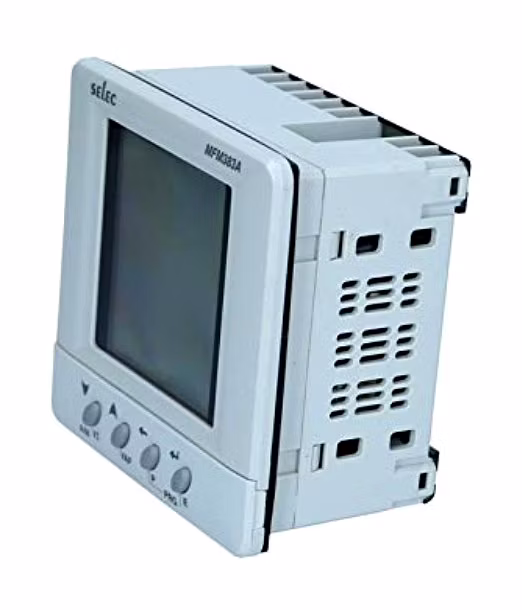

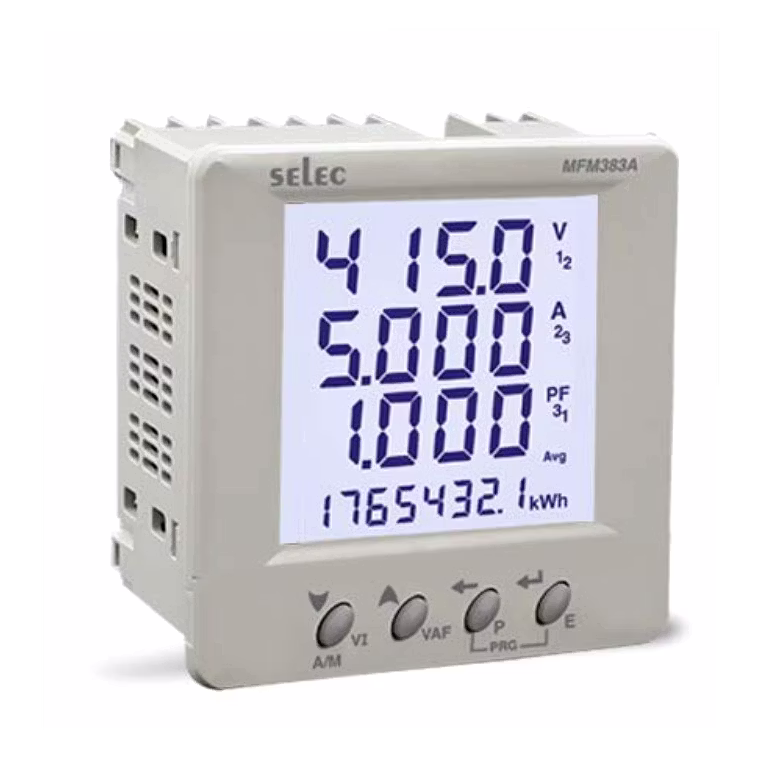

SELEC MFM383A Economical LCD Multifunction meter MFM383A

A S Enterprises logo
A S Enterprises
Manufacturer, Contractor, Brand Owner, Distributor, Exporter, Importer, Wholesaler, Women Entrepreneur — Surat, Gujarat, India · Replies in ~24–48 hours
FIEO Registered Export Ready
Price on request In stock
MOQ: 1 Piece
Lead time: On request
GST invoice
Origin: India
Export ready
Buyer protection
Interested in this product?
Share your requirement and the seller will respond with a quote.
Comparing multiple suppliers?
Receive quotations from multiple verified suppliers and compare price & lead time.
Other buying options
Buyer-protected enquiry Seller responds in ~24–48 hours Freight & duties quoted separately
Export Snapshot
Minimum order
1 Piece
HSN Code
90303390
Origin
India
Lead time
On request
Port of dispatch
On request
Packaging
Standard export packaging
Shelf life / storage
As per product specification
Export markets served
Global markets
Ability to customise
As per OEM brief
Values shown are for A S Enterprises.
Company A S Enterprises
A S Enterprises logo
A S Enterprises

Registered address: Surat, India.

FIEO Registered
View profile →
Established
Not shared
Employees
–
GST
24CIKPS6663M1ZG
IEC code
Not shared
Export markets
Global markets
Member since
Not shared
Turnover
$250,000 - $1 MM
Incorporation type
On request
Product details

Brief Specifications


Display Type LCD with Backlight

Display Configuration 3 Rows of 4 Digits, 1 Row of 7 ½ Digits

Electrical Connection 3Ø - 3W, 3Ø - 4W, 2Ø - 3W, 1Ø - 2W

Type of Output Pulse Output

Features Password Protection, Energy (Active / Reactive / Apparent)

Communication Protocol RS485 and MODBUS RTU

CT Primary 1 / 5A to 10kA (Programmable for Any Value)

CT Secondary 1 / 5A (Programmable)

PT Primary 100V to 10kV (Programmable for Any Value)

PT Secondary 100V to 500V AC (L – L) (Programmable for Any Value)

Rated Input Current Nominal 5A AC (Min - 11mA Max - 6A)

Supply Voltage 85 to 270V AC (45/65 Hz)

Size 96 x 96mm

Mounting Type Panel Mount

Certification CE RoHS

Description provided by A S Enterprises.

1 phase 2 wire, 3 phase 3 wire, and 3 phase 4 wire systems

11 to 300V (L-N), 19 to 519V (L-L)

LCD with backlight, 3 rows of 4 digits + 1 row of 7 ½ digits

RS485 with MODBUS RTU protocol (MFM383A-C-CE)

±0.5% (voltage/current), 0.1% (frequency), 0.01% (PF), 1% (power)

Pulse output for energy monitoring

Programmable CT primary (1/5A to 10kA), CT secondary (1/5A), PT primary (100V to 10kV), PT secondary (100V to 500V AC L-L)

85 to 270V AC (45/65 Hz)

Panel mount

CE and RoHS compliant

Password protection to restrict unauthorized access

Specifications
Display Type
LCD with Backlight
Display Configuration
3 Rows of 4 Digits and 1 Row of 7 ½ Digits
Electrical Connection Types
3Ø - 3W, 3Ø - 4W, 2Ø - 3W, 1Ø - 2W
Communication Protocol
RS485 and MODBUS RTU
CT Primary Programmability
1/5A to 10kA
CT Secondary Programmability
1/5A
PT Primary Programmability
100V to 10kV
PT Secondary Programmability
100V to 500V AC (L-L)
Rated Input Current
Nominal 5A AC (Min 11mA, Max 6A)
Supply Voltage
85 to 270V AC, 45/65 Hz
Dimensions
96 x 96 mm
Mounting Type
Panel Mount
Certifications
CE and RoHS
Use cases
Category
electrical equipment and supplies > electrical instruments > panel meters
Primary application
Product type
Product
Logistics & handling
Lead time
On request
Packaging
As per buyer requirement
Storage condition
As recommended by supplier
Origin
India
Form
As listed by supplier
Commercials A S Enterprises
Minimum order
1 Piece
Lead time
On request
Payment terms
As per negotiated commercial agreement
Frequently asked by buyers
What communication options are available with the MFM383A for integration into existing energy management systems?

The SELEC MFM383A supports RS485 communication with the MODBUS RTU protocol (available in the MFM383A-C-CE variant), enabling seamless integration into SCADA and energy management systems for real-time data acquisition and control.

Can the MFM383A handle different CT and PT configuration values for customized installations?

Yes, the meter allows programmable CT primary currents from 1/5A up to 10kA and PT primary voltages from 100V to 10kV, along with programmable secondary values, allowing it to adapt to a wide range of installation requirements.

What accuracy does the SELEC MFM383A provide for power measurements?

It provides an accuracy class of 1% for active, reactive, and apparent power measurements, ensuring reliable power data for energy management applications.

Is the MFM383A suitable for both single-phase and three-phase systems?

Yes, the meter is compatible with 1 phase 2 wire, 3 phase 3 wire, and 3 phase 4 wire electrical systems, making it suitable for diverse commercial and industrial setups.

Does the meter include any security features to prevent unauthorized access?

The MFM383A includes password protection functionality to restrict access to configuration and measurement data, enhancing security for critical applications.

What types of outputs does the SELEC MFM383A offer for energy data logging?

It features a pulse output which can be used for energy data logging, enabling compatibility with external data acquisition and monitoring devices.
