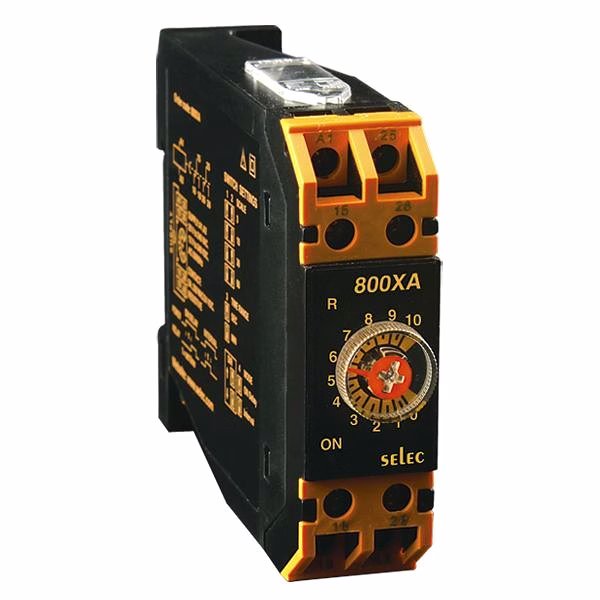

Selec 800XA On delay / Interval, 8 Time Ranges, Universal supply

Name: Selec 800XA On delay / Interval, 8 Time Ranges, Universal supply
SKU: 8492155
Availability: InStoreOnly

Sold by A S ENTERPRISES · Manufacturer, Contractor, Brand Owner, Distributor, Exporter, Importer, Wholesaler, Women Entrepreneur · Surat, Gujarat, India

Price

Price on request

In stock

Minimum order: 1 Piece

Export Snapshot

MOQ

1 Piece

Lead time

On request

Packaging

Standard export packaging

Shelf life / longevity

As per product specification

HS Code

85364900

Origin

India

Port of dispatch

On request

Export markets served

Global markets

Values shown are for A S ENTERPRISES.

Compliance & Certifications

FIEO Registered

Suitable for

Importers · Distributors · Wholesalers

Surat Dispatch on request FIEO member

A S ENTERPRISES

Manufacturer, Contractor, Brand Owner, Distributor, Exporter, Importer, Wholesaler, Women Entrepreneur · Surat, Gujarat, India

Registered address: Surat, India.

View profile All products

Established

Not shared

Employees

–

GST

24CIKPS6663M1ZG

IEC code

Not shared

Export markets

Global markets

GlobalLinker Member Since

Not shared

Turnover

Incorporation Type

On request

Verified Seller

Product details

What are the specifications of this product?

Overview

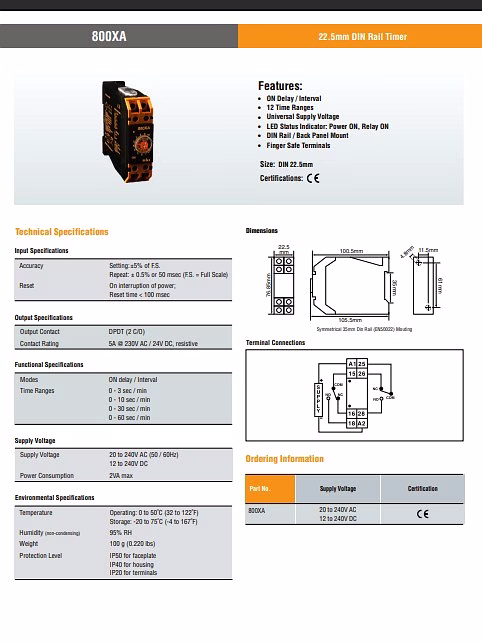

22.5mm Din Rail Timer 800XA ON delay / Interval 8 time ranges Universal supply voltage LED Indications : Power ON, Relay ON DIN Rail / Back panel mount Product Code Supply Voltage Certification 800XA 20 to 240V AC , 12 to 240V DC -- 800XA-CE 20 to 240V AC , 12 to 240V DC CE Rated power frequency IEC 61000-4-8 Level-4 Voltage dip / Short interruptions IEC 61000-4-11 Level-3 Conducted emissions CISPR-11 Class-B Rated emissions CISPR-22 Class-A Emission & Immunity IEC 61326-1 Safety IEC 61010-1 PFMF (Passing criteria) IEC 61000-4-8 Class-A

Product Description

Operating Modes ON Delay / Interval

Range 3 / 10 / 30 / 60sec / min

Resolution 0.3 sec

Accuracy Setting: ± 5% Of Full Scale, Repeat: ± 0.5% Of 50ms (Whichever Is Greater)

Relay Contact 2 C/O SPDT

Contact Rating 5A @ 250V AC or 24V DC

Supply Voltage 20 to 240V AC, 12 to 240V DC

Size 22.5mm

Mounting Type DIN Rail Mount

Certification CE

Electrostatic discharge IEC 61000-4-2 Level-3

Electrical fast transient / Brust IEC 61000-4-4 Level-3

Electromagnetic field IEC 61000-4-3 Level-3

Surge IEC 61000-4-5 Level-3

Conducted RF IEC 61000-4-6 Level-2

Description provided by A S ENTERPRISES.

Specifications

Product Model	Selec 800XA
Function	Time delay relay with ON delay and interval timing modes
Time Ranges	3s / 10s / 30s / 60s / 3min / 10min / 30min / 60min
Power Supply	20-240V AC, 12-240V DC (Universal)
Relay Contact Type	SPDT (Single Pole Double Throw)
Contact Rating	5A @ 250V AC / 24V DC
Mounting	DIN rail or back panel mount
Size	22.5 mm width
Operating Temperature Range	Not specified
LED Indicators	Power ON, Relay ON
Certifications	CE certified
Accuracy	±5% setting accuracy; ±0.5% repeat accuracy

Use cases

Category	electrical equipment and supplies > electrical controls and components > timers
Primary application	Wholesale, distribution, and international sourcing
Brand	Not specified
Product type	Product

Logistics & handling

Lead time	On request
Packaging	As per buyer requirement
Storage condition	As recommended by supplier
Origin	India
Form	As listed by supplier

Commercials (this seller)

Minimum order	1 Piece
Lead time	On request
Payment terms	As per negotiated commercial agreement.
Checkout type	enquiry

Buyer questions

Frequently asked by buyers

Common questions B2B buyers ask before sourcing Selec 800XA On delay / Interval, 8 Time Ranges, Universal supply. Answers compiled from verified sellers' commercial terms and platform data.

Q: What are the available time ranges for the Selec 800XA timer?

A: The 800XA timer offers eight selectable time ranges: 3 seconds, 10 seconds, 30 seconds, 60 seconds, 3 minutes, 10 minutes, 30 minutes, and 60 minutes, allowing flexible timing control.

Q: How does the universal power supply feature benefit industrial applications?

A: The universal supply voltage of 20 to 240V AC and 12 to 240V DC enables the 800XA timer to be compatible with a wide variety of power sources, simplifying installation and enhancing versatility in different industrial environments.

Q: Can the Selec 800XA be mounted both on DIN rails and back panels?

A: Yes, the 800XA is designed for easy mounting either on standard DIN rails or back panels to facilitate integration into existing control cabinets.

Q: What type of relay contacts does the 800XA utilizes and what is their rating?

A: The timer uses 2 C/O SPDT relay contacts rated for switching loads up to 5A at 250V AC or 24V DC, suitable for controlling a broad range of industrial devices.

Q: What is the accuracy and resolution of the timing settings on the 800XA?

A: The timer sets with an accuracy of ±5% of the full scale and repeat accuracy of ±0.5% of 50 ms with a resolution of 0.3 seconds, ensuring reliable and precise timing performance.

Q: Does the 800XA provide any visual indication for operation status?

A: Yes, it features LED indicators for power ON and relay ON, which help users quickly verify operational status and simplify troubleshooting.
