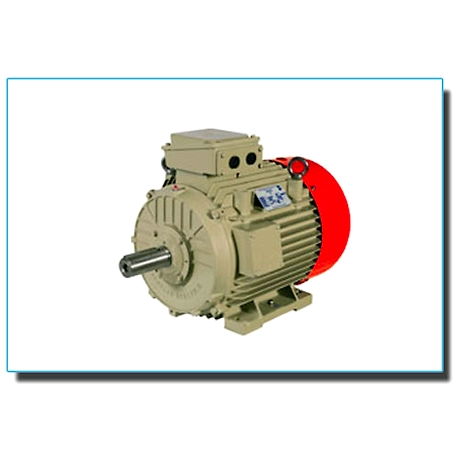

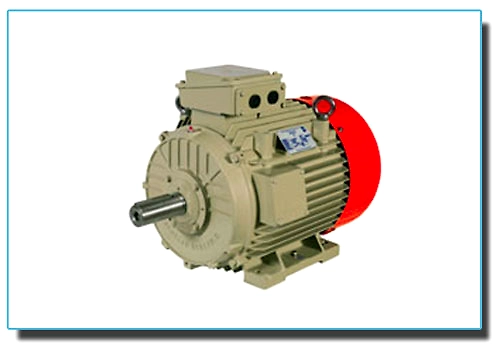

Ravi Series

Name: Ravi Series
Brand: kirloskar
SKU: 7821217
Availability: InStoreOnly

Sold by makharia electricals private limited · Service Provider , Manufacturer, Trader, Brand Owner, Distributor, Exporter, Importer · Mumbai, Maharashtra, India

Price

Price on request

In stock

Minimum order: 1 Centimetre

Export Snapshot

MOQ

1 Centimetre

Lead time

On request

Packaging

Standard export packaging

Shelf life / longevity

As per product specification

HS Code

On request

Origin

India

Port of dispatch

On request

Export markets served

Global markets

Values shown are for makharia electricals private limited.

Compliance & Certifications

Trusted Supplier

Suitable for

Importers · Distributors · Wholesalers

Mumbai Dispatch on request Verified seller

makharia electricals private limited

Service Provider , Manufacturer, Trader, Brand Owner, Distributor, Exporter, Importer · Mumbai, Maharashtra, India

Makharia Electricals Pvt Ltd., is a professionally managed trading firm with over 50 years of dedicated experience. We launched our own brand of electric motors - OXFORD in the year 2001. The company has its Head office in Mumbai with two branch offices at Kota & Jaipur. We have a strong sales and service network spread all over India.

Registered address: Mumbai, India. Industry: Tools, Machinery & Components > Machinery Components & Supplies.

View profile All products

Established

2006

Employees

51–100

GST

27AAECM5898H1ZW

IEC code

Not shared

Export markets

Global markets

GlobalLinker Member Since

Aug 2020

Turnover

50000001 - 100000000.

Incorporation Type

On request

Verified Seller FIEO Registered Member Conformité Européenne IEC standards & Classsifications

Product details

What are the specifications of this product?

Overview

The Ravi Series motors are designed for reliable performance in a variety of industrial applications. Known for their durability and efficiency, Ravi Series motors offer consistent power and long service life. These motors are suitable for use in equipment such as pumps, fans, and conveyors, providing dependable performance in a range of operating conditions. We are pleased to inform that we have all the regular rating motors in-stock and non-stock motors can be made available within short and flexible delivery period as per customer needs. We assure you our best competitive pricing and commercial terms. We Also Deal In Oxford, Marathon Electric, Crompton & Greaves, Bharat Bijlee, Kirloskar, Abb, Baldor Etc. We Are Glad To Inform You That We Are Already On Vendor List Of Many Big Corporate House & Mnc'S.

Product Description

Execution & Features

FEATURES	VALUES/ STANDARDS
Starting	DOL for all Or Star delta for frames 100 & above.
Permissible starts/hr	2 Hot / 3 Cold / 4 Equally spread
Loading at reduced volts	75% Rated volts for 5 minutes
Insulation / temp.rise	Class F/70 deg C
Direction of rotation	Bi-Directional
No. Of leads	3 up to 90 frame & 6 for including and above 100 frame
Connection	Star up to 90 frame and , Delta including and above 100 frame
Degree of protection	IP55, IP 66 on request.
Method of cooling	IC 411
T.box position	Top TB Standard and side TB optional ( RHS from DE)
Bearing life	40,000 hours for direct drive, 20,000 hours for belt drive
Vibration	Normal class as per IS 12075
Noise	As per IS 12065.
Construction	Foot, B flange, C flange, Foot cum B flange , Foot cum C flange
Frame sizes	Ravi series 63-315
Mounting arrangement	Multiple mounting holes in same body, S/M/L as per standard
Shaft extension	Single cylindrical extension as per IS 1231
Body material	CI from 63-315 frame
T.box material	Nylon Up to 132 frame /sheet metal 160 frame and above
Fan material	Polypropylene up to 225frame/ 250 and above fabricated steel
Accessories	Nil, Thermistor, space heater, winding RTD, BTD on request in select frames.
Paint & shade	Standard Motor
Main body: Shade RAL 1020
Fan cover: Shade 592 of IS 5 International orange
Bearing type and Greasing facility	Sealed Bearings grease lubricated for life up to 225 frame and open bearings with online greasing facility in 250 and above frames.

Description provided by makharia electricals private limited.

Specifications

Frame Sizes	Ravi series 63-315
Mounting Arrangement	Multiple mounting holes; S/M/L as per standard
Shaft Extension	Single cylindrical extension as per IS 1231
Body Material	CI from 63-315 frame
T.box Material	Nylon up to 132 frame; sheet metal for 160 frame and above
Fan Material	Polypropylene up to 225 frame; fabricated steel for 250 and above
Accessories	Thermistor, space heater, winding RTD, BTD on request
Paint & Shade	RAL 1020 for main body; Shade 592 for fan cover
Bearing Type and Greasing	Sealed Bearings grease lubricated for life up to 225 frame; open bearings with online greasing for 250 and above

Use cases

Category	consumer electronics > audio and video players > receivers and amplifiers
Primary application	Wholesale, distribution, and international sourcing
Brand	kirloskar
Product type	Product

Logistics & handling

Lead time	On request
Packaging	As per buyer requirement
Storage condition	As recommended by supplier
Origin	India
Form	As listed by supplier

Commercials (this seller)

Minimum order	1 Centimetre
Lead time	On request
Payment terms	As per negotiated commercial agreement.
Checkout type	enquiry

Buyer questions

Frequently asked by buyers

Common questions B2B buyers ask before sourcing Ravi Series. Answers compiled from verified sellers' commercial terms and platform data.

Q: What types of applications are Ravi Series motors suitable for?

A: Ravi Series motors are suitable for a variety of industrial applications, including pumps, fans, and conveyors, providing dependable performance across different conditions.

Q: Can non-stock motors be ordered, and what is the delivery time?

A: Yes, non-stock motors can be made available within a short and flexible delivery period tailored to customer needs.

Q: What is the expected life of the bearings in Ravi Series motors?

A: The bearings in direct drive applications last approximately 40,000 hours, while in belt drive applications, they have a life of around 20,000 hours.

Q: What is the degree of protection for Ravi Series motors?

A: The standard degree of protection for Ravi Series motors is IP55, with an option for IP66 available upon request.

Q: What materials are used in the construction of Ravi Series motors?

A: The body material is made of CI (Cast Iron) from 63-315 frames, while the terminal box material is nylon for frames up to 132 and sheet metal for frames 160 and above.
