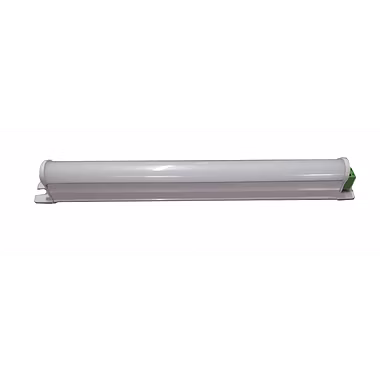

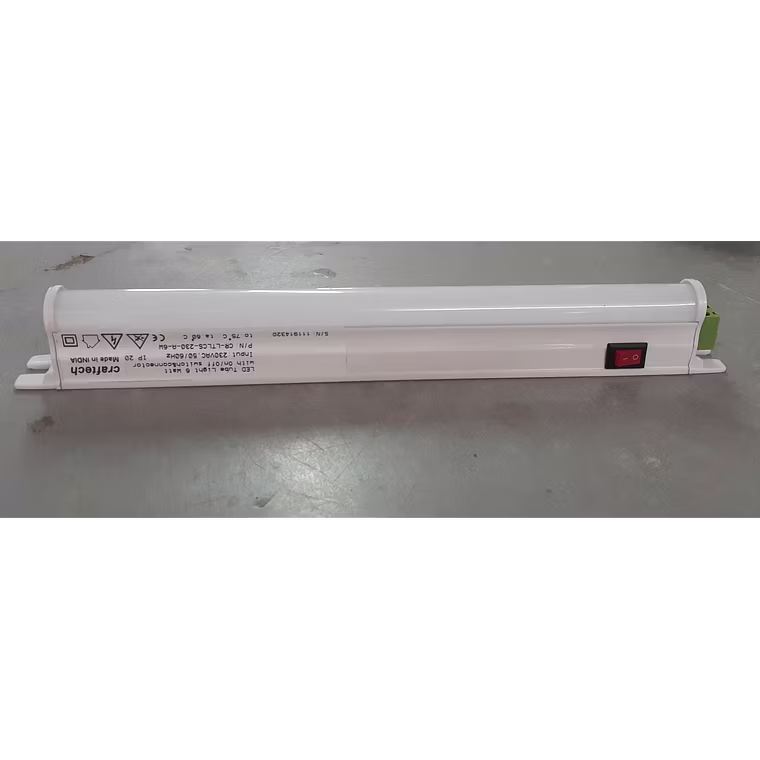

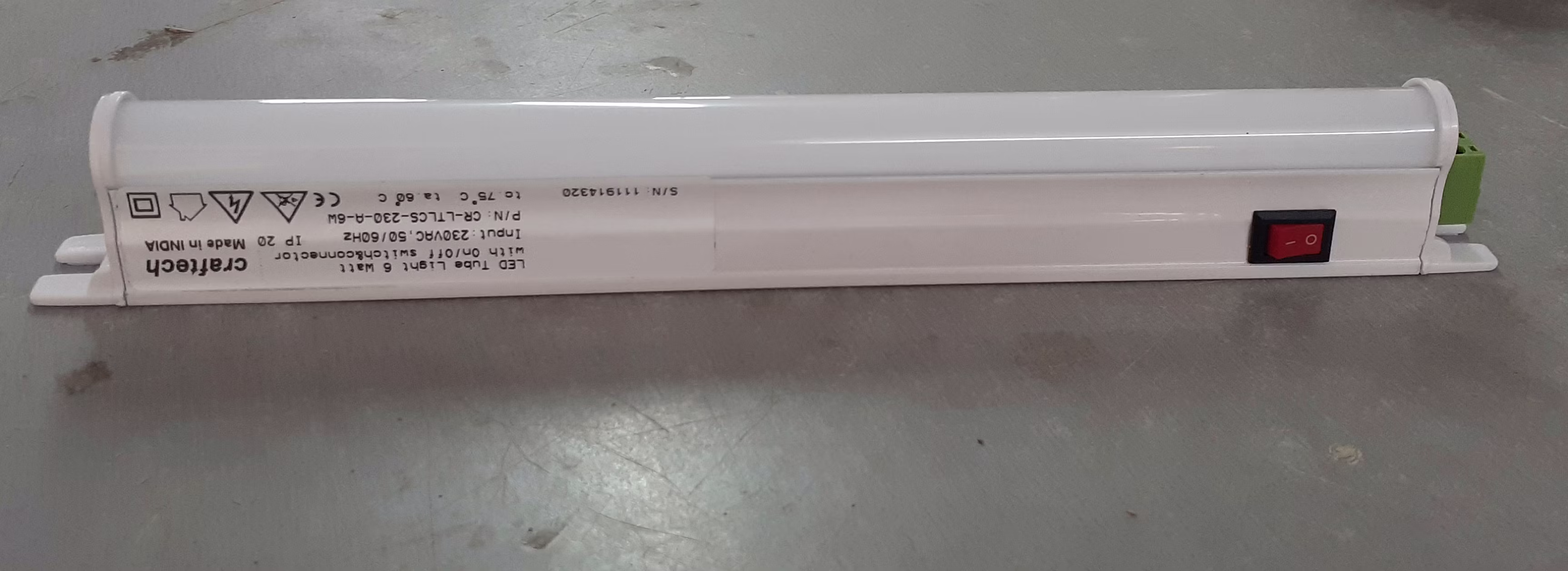

Introducing the Panel LED Light, an efficient and high-performance lighting solution specifically designed for Electrical Panel Buildings. Available in multiple wattages: 3W, 6W, 10W, and 12W, this LED light utilizes SMD2835 technology and is LM80 approved, ensuring high-quality illumination. With a color temperature of 6500K, it achieves a luminous efficiency of 100lm/watt, providing bright and clear visibility. The Panel LED Light is ideal for environments that demand reliable and long-lasting lighting, boasting a service life of up to 50,000 hours at 25°C. The beam angle of 120 degrees ensures wide coverage, while the minimum CRI of 80 delivers accurate color rendering. The unit's robust construction allows it to operate within a temperature range of -10°C to +65°C, making it suitable for various operational contexts. Equipped with two clamps for easy mounting and either a wire or connector for input supply, this product simplifies installation while maintaining a high standard of performance. Its IP20 protection class contributes to its durability in controlled environments, reinforcing its status as an essential component in electrical installations. Optimize your lighting solutions with the Panel LED Light today and enjoy the benefits of efficiency and longevity in your operations.
Key Features
Features | Description |
---|---|
LED Type | SMD2835, LM80 approved |
Colour Temperature (CCT) | 6500 K |
Luminous Efficiency | 100lm/w |
Beam Angle | 120 Deg |
CRI (min) | 80 |
Storage Temperature | -20°C to +75°C |
Operating Temperature | -10°C to +65°C |
Protection Class | IP 20 |
Service Life | 50,000 Hrs. @ 25°C |
Attributes | Description |
---|---|
Wattage Options | 3W, 6W, 10W, 12W |
Dimensions (3W) | 125 x 22 x 36 mm |
Hole Distance for Clamp Fitting (3W) | 60 mm |
Hole Distance for Screw Fitting (3W) | 145 mm |
Dimensions (6W) | 235 x 22 x 36 mm |
Hole Distance for Clamp Fitting (6W) | 150 mm |
Hole Distance for Screw Fitting (6W) | 255 mm |
Dimensions (10/12W) | 350 x 22 x 36 mm |
Hole Distance for Clamp Fitting (10/12W) | 230 mm |
Hole Distance for Screw Fitting (10/12W) | 370 mm |
*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Country Of Origin: India
LED type SMD2835, LM80 approved
Colour Temp (CCT) 6500 K
Luminous Efficiency 100lm/watt
Beam Angle 120 Deg
CRI (min) 80
Storage Temperature -200C to + 750C
Operating Temperature -100C to + 650C
Protection class IP 20
Service Life 50,000 Hrs. @ 250C

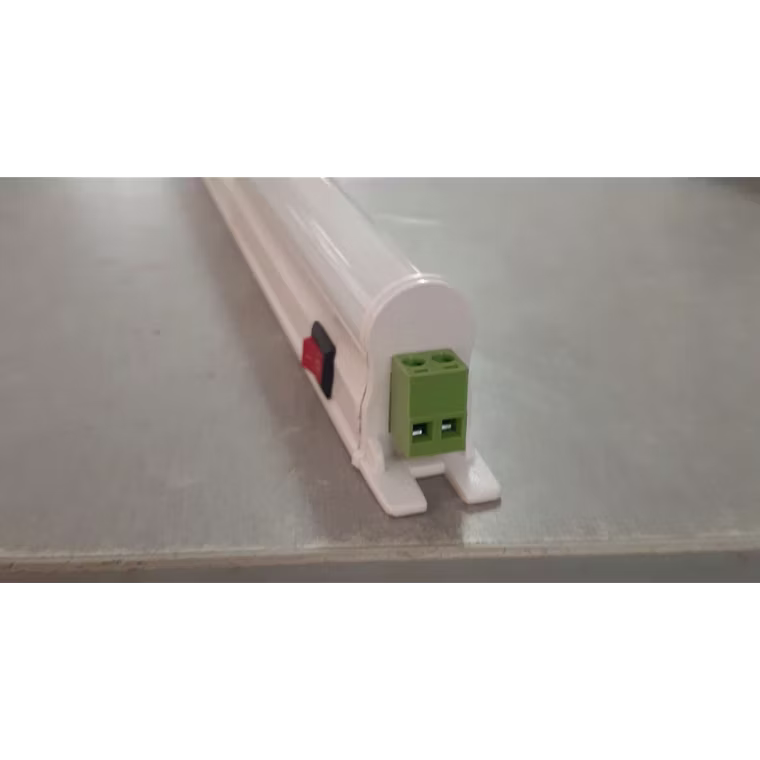

Accessories 2 no’s Clamps for Clamp mounting, Wire for Input Supply or Connector for Input Supply

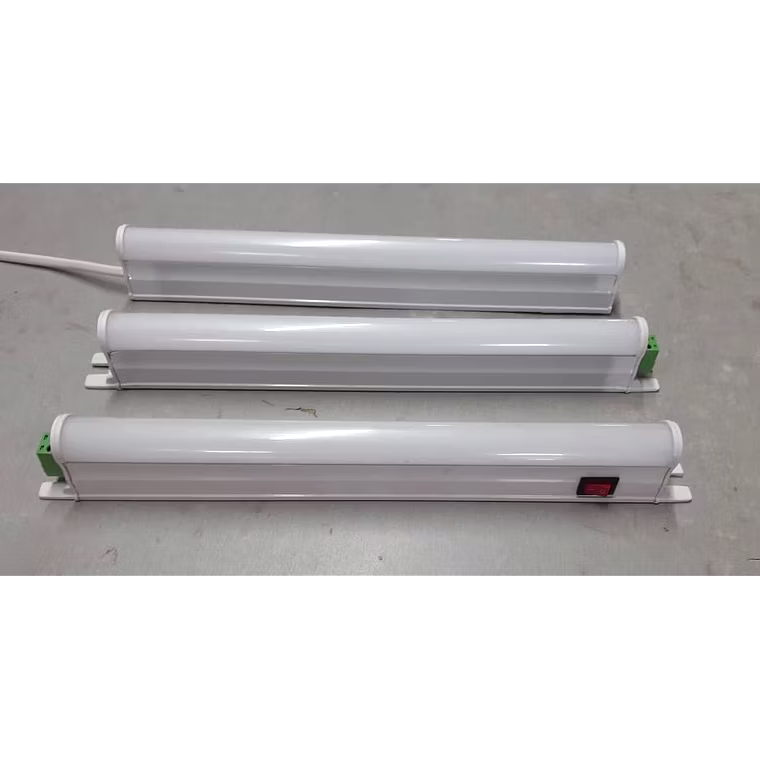

The Panel LED Light addresses Lighting requirement in Electrical Panel Building and available in 3W, 6W, 10W, and 12W.
Recommended mounting dimension Use M5/M6 screw for Screw
fitting (Torque 2 Nm Max)
Product
Hole
distance for
Clamp
fitting
Hole distance
for Screw
Fitting
3 watt , 230 VAC LED tube light ( 125 x 22 X 36) 60 mm 145 mm
6 watt , 230 VAC LED tube light ( 235 x 22 X 36) 150 mm 255 mm
9/10/12 watt , 230 VAC LED tube light ( 350 X 22 X 36) 230 mm 370 mm
