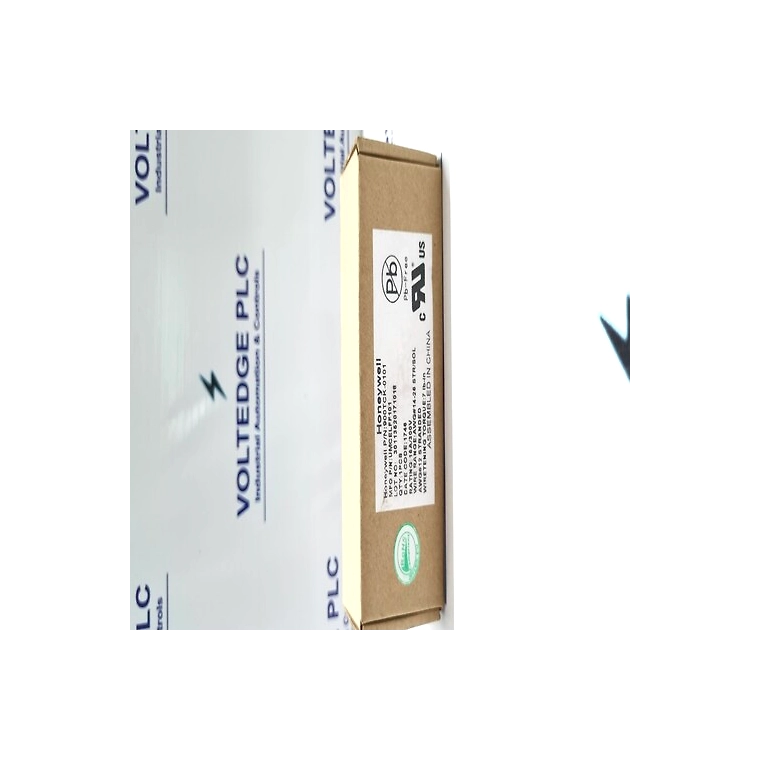

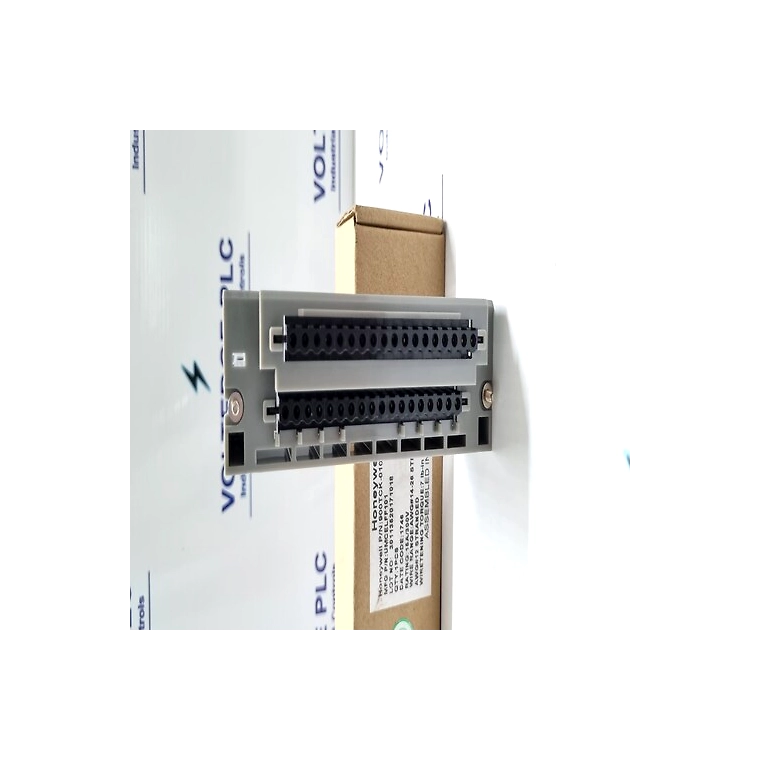

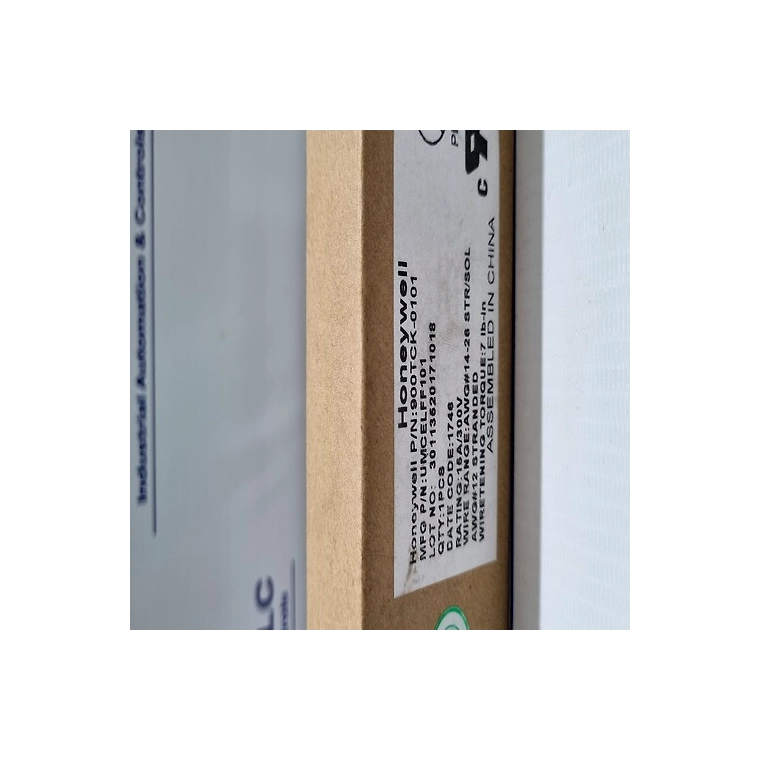

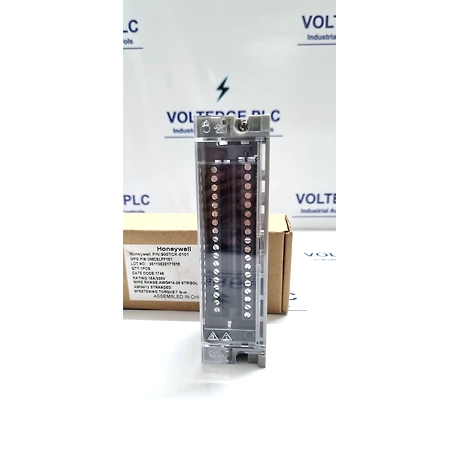

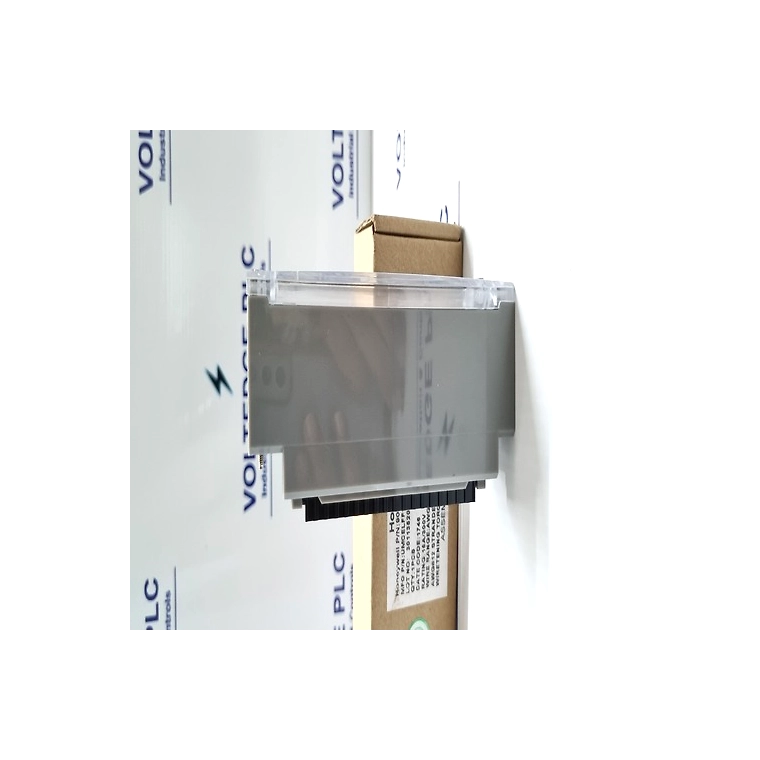

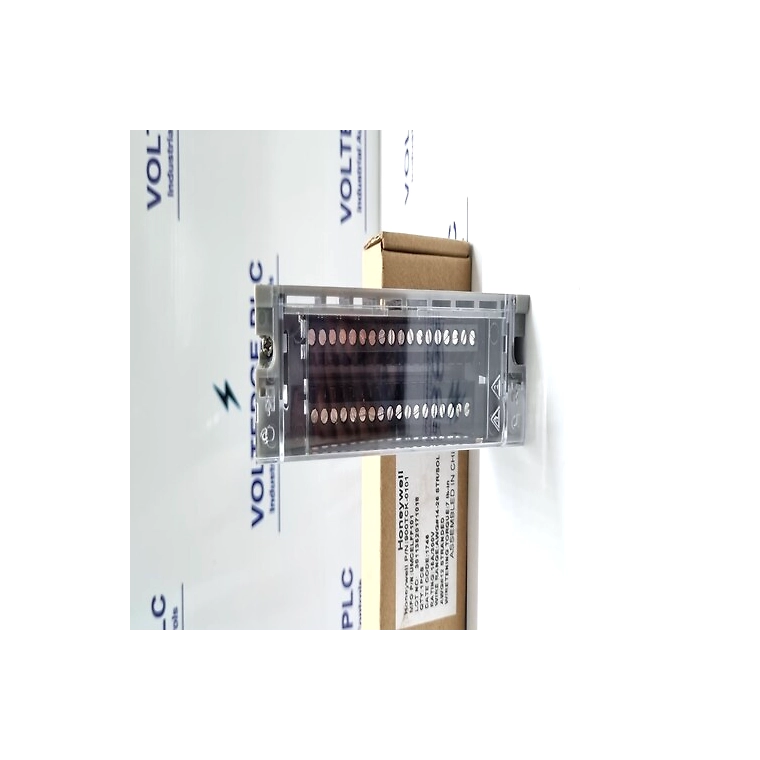

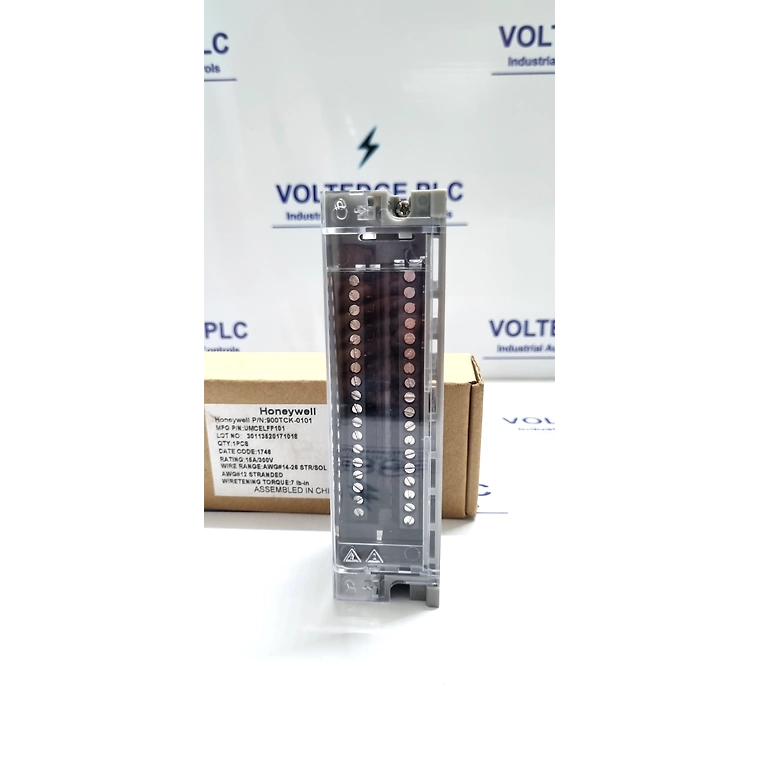

HONEYWELL 900TCK-0101 36 CHANNEL TERMINAL BLOCK

The Honeywell 900TCK-0101 36 Channel Terminal Block is a high-density terminal block designed for use in Honeywell control systems. It provides a compact and organized solution for connecting multiple channels in industrial automation setups. Below is an overview of its key features and functionality:

Honeywell 900TCK-0101 36 Channel Terminal Block Description

Purpose: This 36-channel terminal block is used to facilitate secure and efficient wiring for multiple signal or control channels, helping to streamline connections within Honeywell Distributed Control Systems (DCS) and automation setups.

Compatibility: Designed for Honeywell’s Experion PKS and other compatible DCS frameworks, the 900TCK-0101 supports high-density wiring applications in industries such as oil and gas, chemical processing, manufacturing, and power generation.

Features:

36 Channels: Accommodates up to 36 individual connections, enabling higher connection density within a single terminal block, which helps conserve space in control panels.

Compact Design: Built to fit neatly within Honeywell control panel configurations, maximizing space efficiency without sacrificing functionality.

Durable Construction: Made from industrial-grade materials, this terminal block is designed to withstand challenging conditions, including temperature fluctuations, vibration, and moisture.

Clear Channel Labeling: Each channel is labeled, aiding in quick identification and reducing potential errors during wiring or maintenance.

Secure Connections: Provides stable, vibration-resistant connections that ensure reliable signal and power transmission even in demanding environments.

Applications: Ideal for high-density wiring applications within Honeywell’s DCS, particularly where numerous I/O points or signal connections are needed, such as in process monitoring, automation, and control applications.

Ease of Maintenance: The organized design of the terminal block simplifies maintenance, allowing easy access to individual connections for inspection or replacement without disrupting the entire system.

Installation: Mountable on DIN rails or in standard Honeywell enclosures, allowing easy integration within existing control panels for efficient wiring organization.

The Honeywell 900TCK-0101 36 Channel Terminal Block is an essential component for high-density wiring requirements, offering secure, organized, and efficient connections in complex control environments.
