Experience of 4 decades in Machine Tools CNC Machines is manufactured under the supervision of technically qualified manpower More than 10,000 machines are manufactured and supplied all over India and abroad Our machines are used in various industrial application, thousands of satisfied clients are using and referring our machines and machines tools While manufacturing CNC Machine , we use high quality raw materials and quality accessories to supply this machines as per your requirement CNC Machine is tested and certified with national and international quality standards Geeta Machine Tools is having wide network of Dealers CNC Machine is having applications in various industries and are known for their sturdy construction, high performance and noiseless operation. To manufacture CNC Machine , Geeta Machine Tools Pvt. Ltd. is having largest infrastructure/ in house facility for building machine tools Geeta Machine Tools Pvt. Ltd. offer CNC Machine at highly competitive price Experienced and Trained Service Engineers for prompt after sales services In-house design and drawing department to make any custom requirement fit for CNC Machine CNC Machine is approved and registered with reputed government organization like DGS&D, DGET, DGQA, NSIC & COFMOW Capacity of 10 MT single Piece CI Casting foundry Stress relieving furnace In house pattern shop & Fabrication shop WMW 5 MTR. Slide way grinding machine Wide range of
Table Size2000 x 1000 mmX Axis TravelY Axis TravelZ Axis Travel2000 mm to 4800mm1500 mm to 2700mm1000 mm to 1800mmSpindle Power15 kW to 37kwSpindle Speed3000 rpm / 6000rpmATC Capacity20 tools / 30 tools /40 toolsControl SystemSiemens /FanucTaperBT-50 / ISO -50 / SK-50 FEATURES OF CNC DOUBLE COLUMN VERTICAL MACHINING CENTREHeavy Duty well stress relieved Cast Iron StructureAC SERVO Spindle Drive.LM Guideways and Ball Screw for X Y Z Axis.Centralized Automatic Lubrication SystemExternal Coolant Equipment with TankHand held unitMachine Lamp and Signal LightOperating ToolsLeveling Pad and Foundation BoltMachine Manual.Window type Splash GuardElectric Panel with Air ConditionZ Axis Hydraulic Balance.Foot Switch for Tool Clamp / Declamp.Laser Calibration in all Linear AxisSome of the following extra accessories are available, to give value addition to the application of your job and make it more convenient and easy.Automatic Tool Changer - 24 ToolsRight Angle Manual HeadCoolant through SpindleFull Cover EnclosureLinear Scale for AxisUniversal Milling Head ManualAuto Touch Probe SystemVoltage StabilizerChip ConveyorIsolation TransformerCoolant with Filtration SystemZ - Axis 1000 mm TraverseDETAILS TO CNC DOUBLE COLUMN VERTICAL MACHINING CENTREGeeta Machine Tools is the leading manufacturer, supplier and exporter of Heavy duty geared lathe machine. The raw material and parts used to make this heavy duty geared lathe machine are of fine quality. You can use this machine in various industrial applications. Mostly Heavy duty geared lathe machine is used in aeronautical industries.Geeta Machine Tools is famous manufacture, exporter and supplier of heavy duty geared lathe machine. Our years of experience enable us to manufacture asuperior quality geared lathe machine. Our total in-house infrastructure facility is the key differentiator to give you high quality heavy duty geared lathe machine at economical price range without making any compromise in raw material or any accessories. We have list of satisfied clients who have brought this heavy duty geared lathe machine from us and giving positive reference for our machines. We have supplied heavy duty geared lathe machine in various parts of India for various industrial application. We have proven track record of manufacturing noiseless, high performance and sturdy machines to give you maximum return on Investment.PRODUCT APPLICATIONYou can use CNC Double Column Vertical Machining Center for various industrial applications and mainly used in power transmission. If you are in the business of engineering automation, running your workshop for industrial job work, a shipbuilding, mining, power plants, textiles, or doing job work for any engineering or fabrication work, job work for shipbuilding, mining job work, power plant job work, cement plant, a metal industries, paper industries, in wood processing and wood turning, in any decorative furniture or functional wood working process, you need different shape for wood, metal or glass for various industrial application then CNC Double Column Vertical Machining Center product of Geeta machine tools is the best and affordable option for you. You can contact us for any custom requirement of CNC Double Column Vertical Machining Center, our technical team will be happy to respond your specific requirement and help you increase your operational efficiency by installing our CNC Double Column Vertical Machining Center.
Product Description
RODUCT APPLICATION
You can use CNC Double Column Vertical Machining Center for various industrial applications and mainly used in power transmission. If you are in the business of engineering automation, running your workshop for industrial job work, a shipbuilding, mining, power plants, textiles, or doing job work for any engineering or fabrication work, job work for shipbuilding, mining job work, power plant job work, cement plant, a metal industries, paper industries, in wood processing and wood turning, in any decorative furniture or functional wood working process, you need different shape for wood, metal or glass for various industrial application then CNC Double Column Vertical Machining Center product of Geeta machine tools is the best and affordable option for you. You can contact us for any custom requirement of CNC Double Column Vertical Machining Center, our technical team will be happy to respond your specific requirement and help you increase your operational efficiency by installing our CNC Double Column Vertical Machining Center.
Description provided by geeta machine tools private limited.
Specifications
Product Title

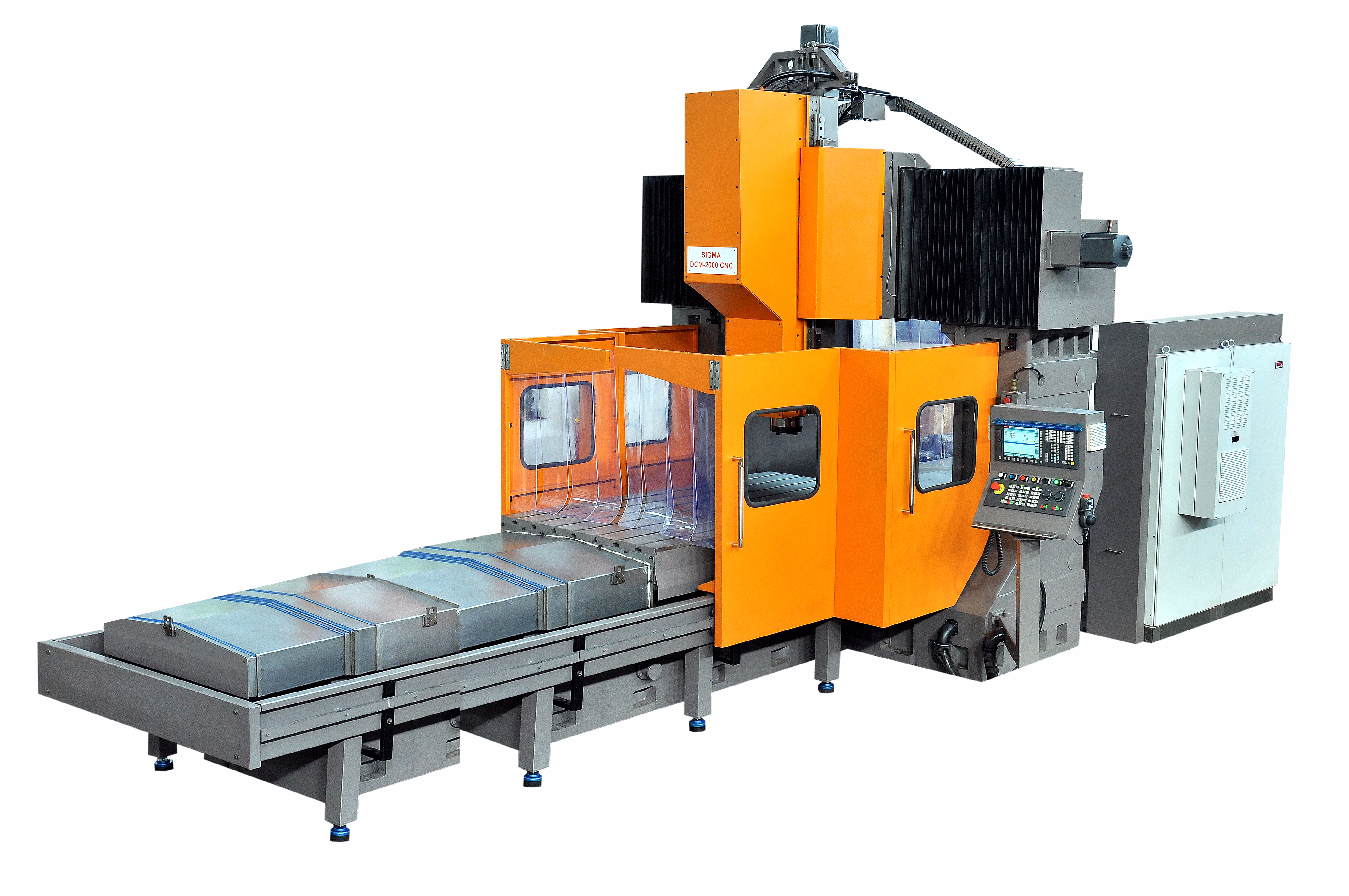

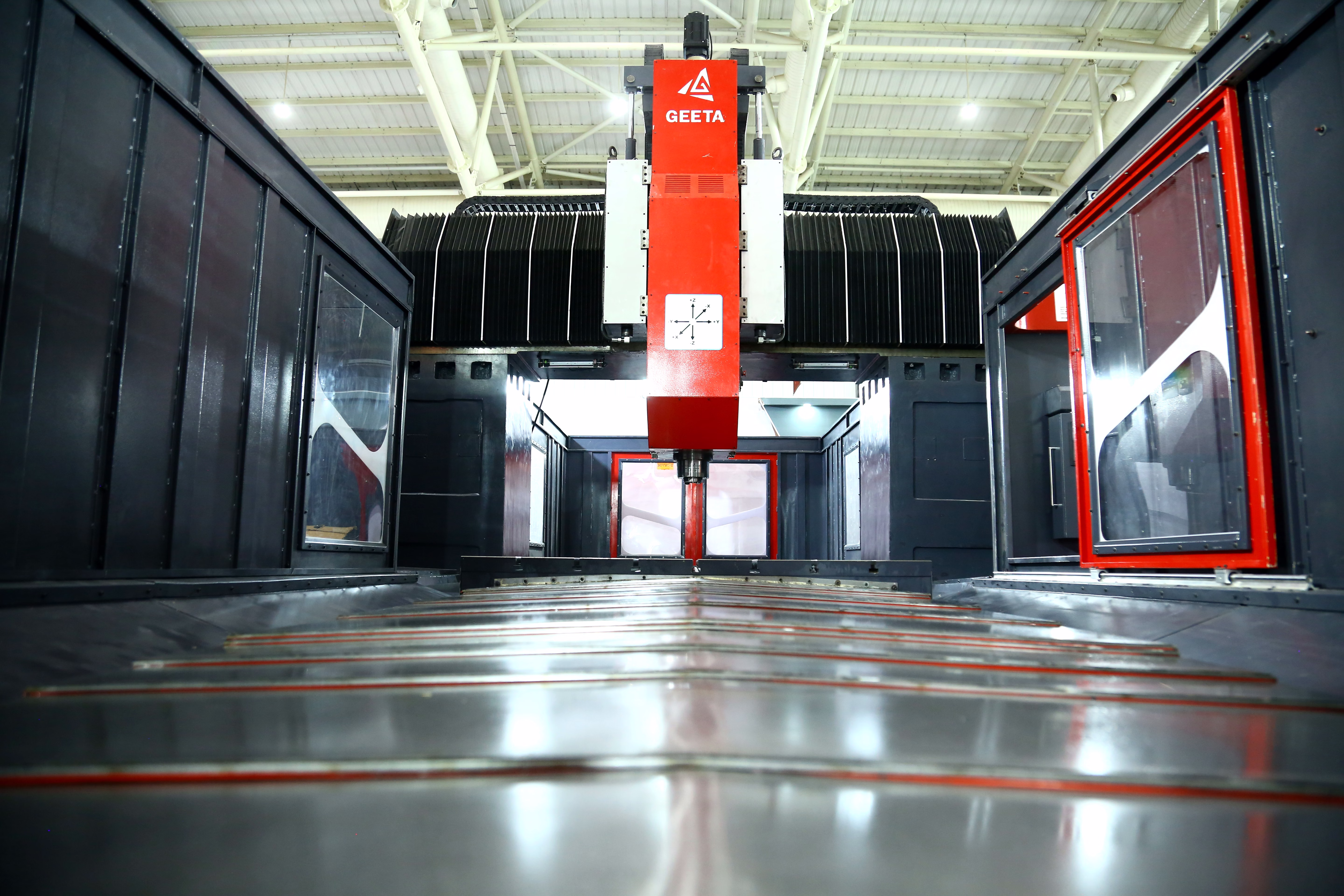

CNC Double Column Vertical Machining Center
Brand/Store Name
GEETA MACHINE TOOLS PRIVATE LIMITED
Product Category
machinery and tools > machine tool equipment > machining centre
Minimum Order Quantity
1 Numbers
Table Size
2000 x 1000 mm
X Axis Travel
2000 mm to 4800 mm
Y Axis Travel
1500 mm to 2700 mm
Z Axis Travel
1000 mm to 1800 mm
Spindle Power
15 kW to 37 kW
Spindle Speed
3000 rpm / 6000 rpm
ATC Capacity
20 tools / 30 tools / 40 tools
Control System
Siemens / Fanuc
Taper
BT-50 / ISO-50 / SK-50
Structure
Heavy Duty well stress relieved Cast Iron Structure
Spindle Drive
AC SERVO Spindle Drive
Axis Motion Components
LM Guideways and Ball Screw for X Y Z Axis
Lubrication System
Centralized Automatic Lubrication System
Coolant System
External Coolant Equipment with Tank
Handheld Unit
Included
Machine Lamp
Included
Signal Light
Included
Leveling Pad
Included
Foundation Bolt
Included
Machine Manual
Included
Splash Guard
Window type Splash Guard
Electric Panel
With Air Condition
Z Axis Counterbalance
Hydraulic Balance
Tool Clamp/Declamp
Foot Switch
Calibration
Laser Calibration in all Linear Axis
Additional Accessories
Automatic Tool Changer, Right Angle Manual Head, Coolant through Spindle, Full Cover Enclosure, Linear Scale, Universal Milling Head Manual, Auto Touch Probe System, Voltage Stabilizer, Chip Conveyor, Isolation Transformer, Coolant with Filtration System
Use cases
Category
CNC Double Column Vertical Machining Center
Primary application
Wholesale, distribution, and international sourcing
Brand
Not specified
Product type
Product
Logistics & handling
Lead time
On request
Packaging
As per buyer requirement
Storage condition
As recommended by supplier
Origin
India
Form
As listed by supplier
Commercials (this seller)
Minimum order
1 Numbers
Lead time
On request
Payment terms
As per negotiated commercial agreement.
Checkout type
enquiry
Buyer questions
Frequently asked by buyers
Common questions B2B buyers ask before sourcing CNC Double Column Vertical Machining Center. Answers compiled from verified sellers' commercial terms and platform data.
Q: What is the main application of this double column vertical machining center?
A: It is used for large-part industrial machining, including milling, drilling, boring, and precision finishing in sectors such as power transmission, engineering automation, shipbuilding, mining, power plants, cement plants, and metal fabrication.
Q: What are the spindle and taper options available?
A: The spindle power is available from 15 kW to 37 kW, with spindle speed options of 3000 rpm or 6000 rpm. Taper options include BT-50, ISO-50, and SK-50.
Q: Which CNC control systems can be supplied with this machine?
A: The machine is offered with Siemens or Fanuc control systems, allowing integration with commonly used industrial CNC platforms.
Q: What is the table size and axis travel range?
A: The table size is 2000 x 1000 mm. X-axis travel is 2000 mm to 4800 mm, Y-axis travel is 1500 mm to 2700 mm, and Z-axis travel is 1000 mm to 1800 mm.
Q: What tool magazine capacity is available?
A: The ATC capacity is available in 20 tools, 30 tools, or 40 tools, depending on the selected configuration.
Q: What structural features help with machining stability?
A: The machine uses a heavy-duty, well stress-relieved cast iron structure, LM guideways, and ball screws for the X, Y, and Z axes to support rigidity and positioning accuracy.
Q: Can this machining center be customized with extra accessories?
A: Yes. Optional accessories include an automatic tool changer, right angle manual head, coolant through spindle, full cover enclosure, linear scale, universal milling head manual, auto touch probe system, voltage stabilizer, chip conveyor, isolation transformer, and coolant filtration system.
Q: What is the MOQ for this machine?
A: The minimum order quantity is 1 numbers, which supports single-machine procurement for industrial buyers.
