Cast Iron Narrow (Nh Series)

Name: Cast Iron Narrow (Nh Series)
Brand: grove gear
SKU: 7821083
Availability: InStoreOnly

Sold by makharia electricals private limited · Service Provider , Manufacturer, Trader, Brand Owner, Distributor, Exporter, Importer · Mumbai, Maharashtra, India

Price

Price on request

In stock

Minimum order: 1 unit

Export Snapshot

MOQ

1 unit

Lead time

On request

Packaging

Standard export packaging

Shelf life / longevity

As per product specification

HS Code

On request

Origin

India

Port of dispatch

On request

Export markets served

Global markets

Values shown are for makharia electricals private limited.

Compliance & Certifications

Trusted Supplier

Suitable for

Importers · Distributors · Wholesalers

Mumbai Dispatch on request Verified seller

makharia electricals private limited

Service Provider , Manufacturer, Trader, Brand Owner, Distributor, Exporter, Importer · Mumbai, Maharashtra, India

Makharia Electricals Pvt Ltd., is a professionally managed trading firm with over 50 years of dedicated experience. We launched our own brand of electric motors - OXFORD in the year 2001. The company has its Head office in Mumbai with two branch offices at Kota & Jaipur. We have a strong sales and service network spread all over India.

Registered address: Mumbai, India. Industry: Tools, Machinery & Components > Machinery Components & Supplies.

View profile All products

Established

2006

Employees

51–100

GST

27AAECM5898H1ZW

IEC code

Not shared

Export markets

Global markets

GlobalLinker Member Since

Aug 2020

Turnover

50000001 - 100000000.

Incorporation Type

On request

Verified Seller FIEO Registered Member Conformité Européenne IEC standards & Classsifications

Product details

What are the specifications of this product?

Overview

The Cast Iron Narrow NH Series Motors are engineered for applications requiring a compact yet robust motor design. With a narrow cast iron construction, these motors offer durability and performance in tight spaces and heavy-duty environments. We are pleased to inform that we have all the regular rating motors in-stock and non-stock motors can be made available within short and flexible delivery period as per customer needs. We assure you our best competitive pricing and commercial terms. We Also Deal In Oxford, Marathon Electric, Crompton & Greaves, Bharat Bijlee, Kirloskar, Abb, Baldor Etc. We Are Glad To Inform You That We Are Already On Vendor List Of Many Big Corporate House & Mnc'S.

Product Description

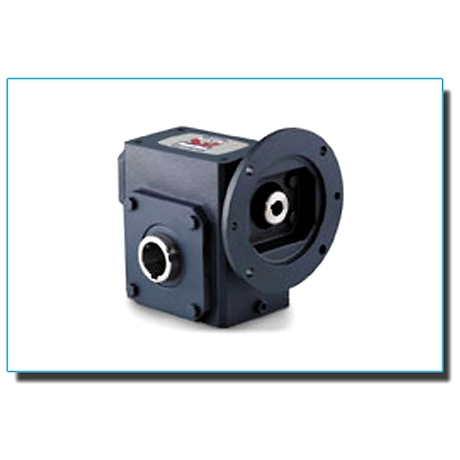

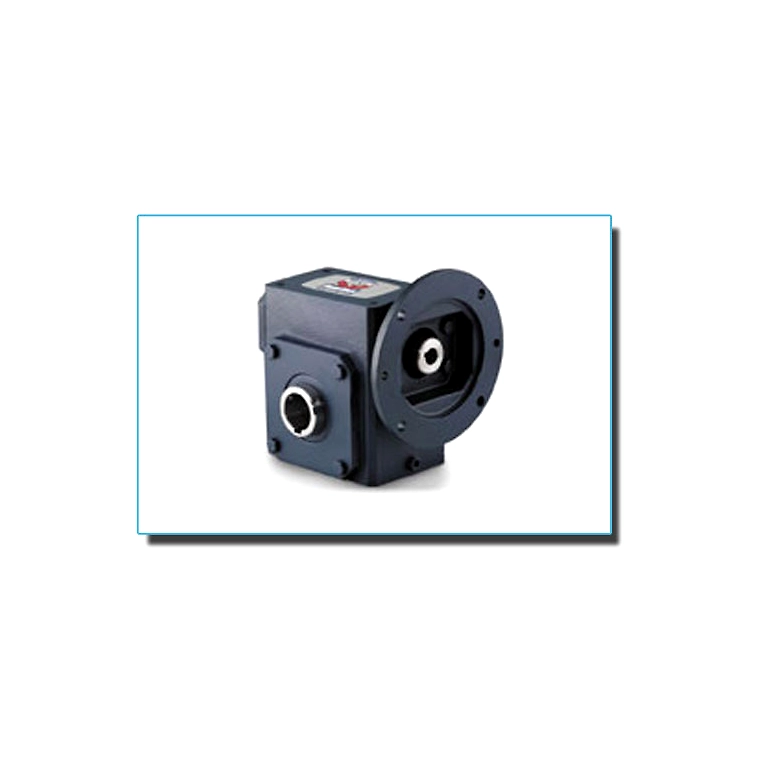

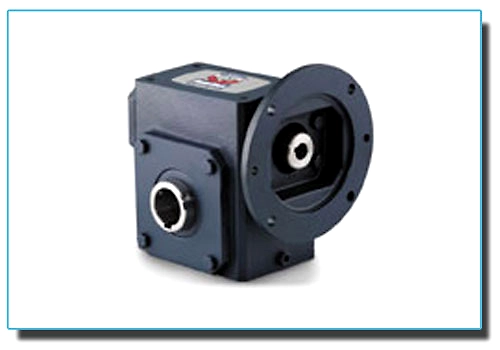

The Grove Gear IRONMAN NH Series features a compact and narrow profile designed to fit space allocations in new or existing equipment. Small, but mighty, the cast iron gear reducer is packed full of premium features.

Specification

Center Distances from 1.33 through 5.25 available.
14 sizes available with input horsepower ratings up to 104 HP.?
Available in single, double and triple reduction.
Ratios from 5:1 to 216,000:1. Helical worm ratios from 25:1 to 600:1.

Standard Features

Rugged cast iron housings, covers, and flanges provide superior strength and rigidity.?
Factory-filled with premium Mobil Glygoyle 460 polyalkalene glycol lubricant.
Large oil capacity provides positive splash lubrication and superior cooling capability.?
Viton double lip seals provide extended life through increased resistance to high temperature, abrasion and chemicals.?
O-rings on all bearing covers, eliminating gaskets, sealants and leaks.?
Oversized high-speed bearings, positively retained for frequent reversing and start/stop cycles.?
Tapered roller bearings on output shaft for high overhung and thrust load capacities.?
The unique quill seal guard protects the input seal from damage during motor installation.?
Bronze worm gear chill cast from high quality bronze for maximum strength, lubricity and superior life.?
Oversized steel output shaft provides superior overhung load and torque characteristics.?
All units are 100% run and leak tested at the factory to insure that you receive the highest quality product.?
Ultimate application flexibility with all-angle mounting provisions, the widest selection of accessory bases and flanges and the largest selection of stock reducer styles.?
Available pre-assembled with LEESON or Lincoln Motors for the perfect GEAR+MOTOR package.

Accessories

T Base Worm Over
U Base Worm Under?
J Mount Vertical Input Base
F Flange
VL & VH Vertical Output Base
Hollow Shaft Tie Rod Kit
Torque Arm Bracket
R Riser Block

Description provided by makharia electricals private limited.

Specifications

Center Distances	1.33 to 5.25 inches
Sizes Available	14 different sizes
Input Horsepower Ratings	Up to 104 HP
Reduction Options	Single, double, triple and helical worm
Standard Lubrication	Mobil Glygoyle 460 polyalkalene glycol
Seal Type	Viton double lip seals
Output Shaft Design	Oversized steel output shaft for superior torque
Testing Process	All units are run and leak tested in the factory

Use cases

Category	metals and alloys > iron and iron products > iron
Primary application	Wholesale, distribution, and international sourcing
Brand	grove gear
Product type	Product

Logistics & handling

Lead time	On request
Packaging	As per buyer requirement
Storage condition	As recommended by supplier
Origin	India
Form	As listed by supplier

Commercials (this seller)

Minimum order	1 unit
Lead time	On request
Payment terms	As per negotiated commercial agreement.
Checkout type	enquiry

Buyer questions

Frequently asked by buyers

Common questions B2B buyers ask before sourcing Cast Iron Narrow (Nh Series). Answers compiled from verified sellers' commercial terms and platform data.

Q: What industries benefit most from the Cast Iron Narrow NH Series Motors?

A: These motors are ideal for industries such as manufacturing, automation, material handling, and any application requiring robust motors in tight spaces.

Q: How does the NH Series ensure efficient lubrication?

A: The motors are factory-filled with premium Mobil Glygoyle 460 lubricant, which provides excellent lubrication and cooling due to its high capacity.

Q: Can the NH Series Motors be customized for specific applications?

A: Yes, we offer flexible delivery options for non-stock motors and customizable features to meet unique customer requirements.

Q: What are the sealing technologies used in the NH Series?

A: The series uses Viton double lip seals and O-rings on all bearing covers to eliminate leaks and extend the lifespan of the motors.

Q: What is the maximum reduction ratio available for NH Series Motors?

A: The NH Series offers reduction ratios up to an impressive 216,000:1, making it suitable for a wide range of applications.
