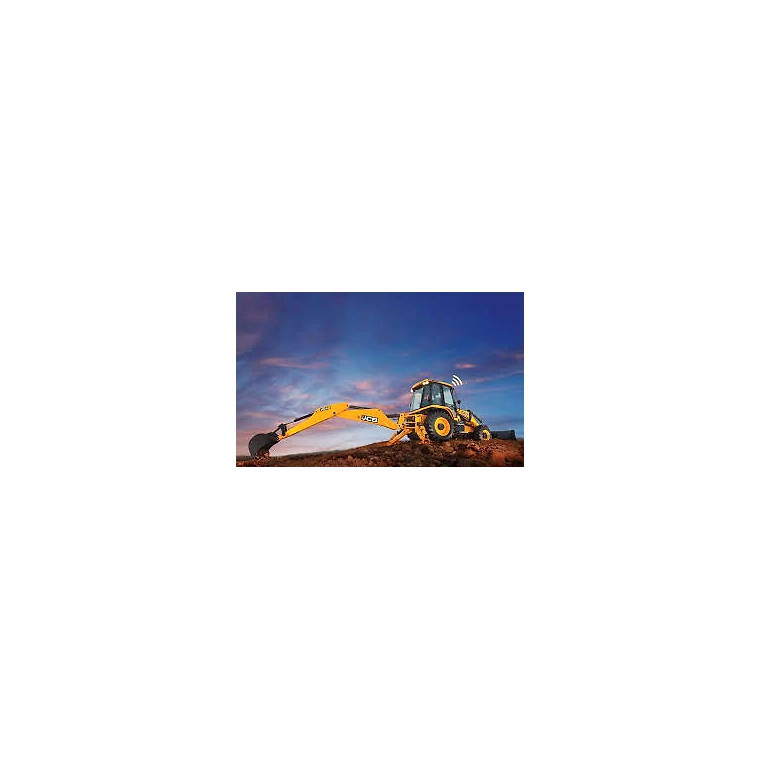

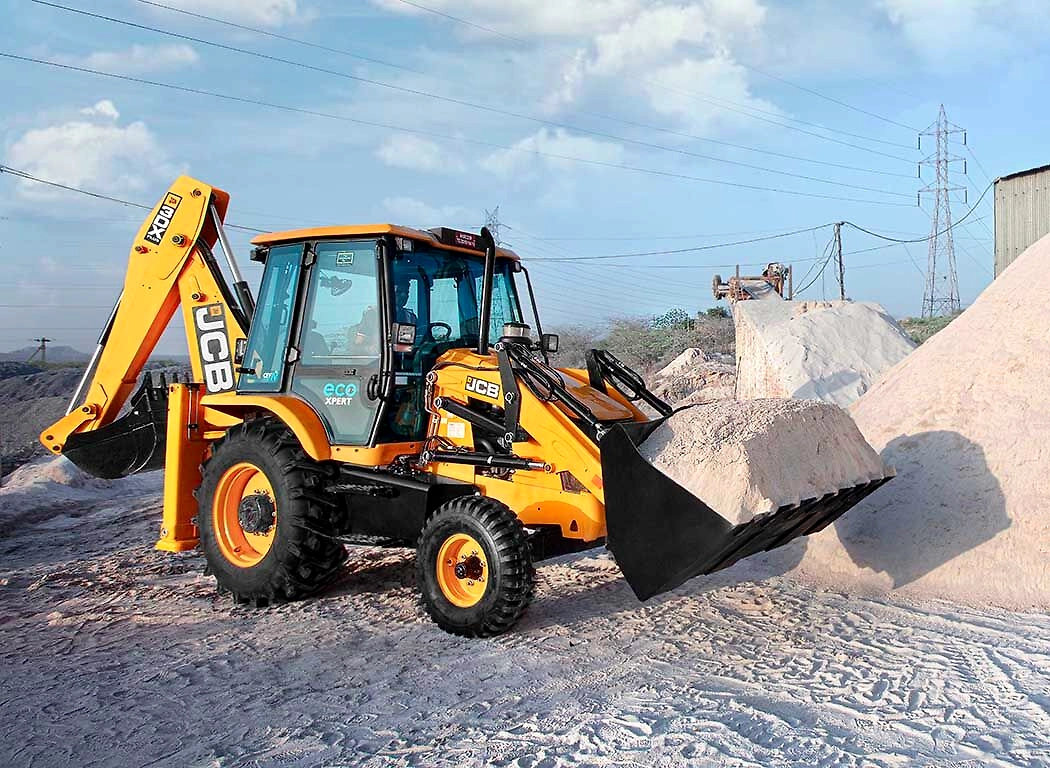

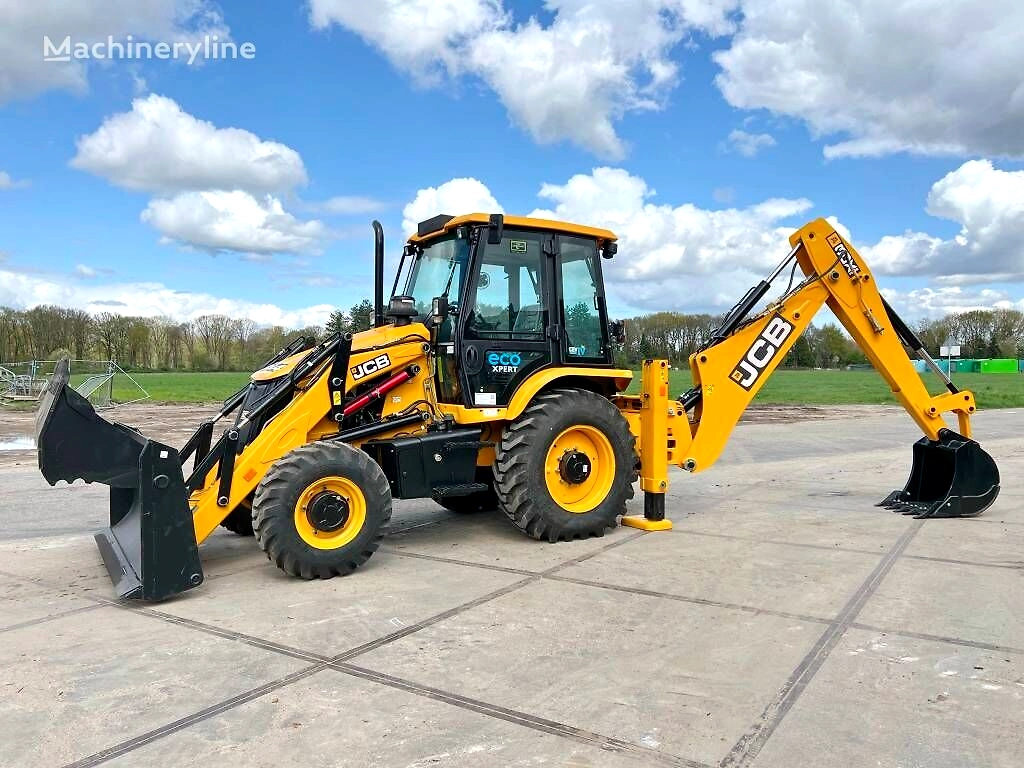

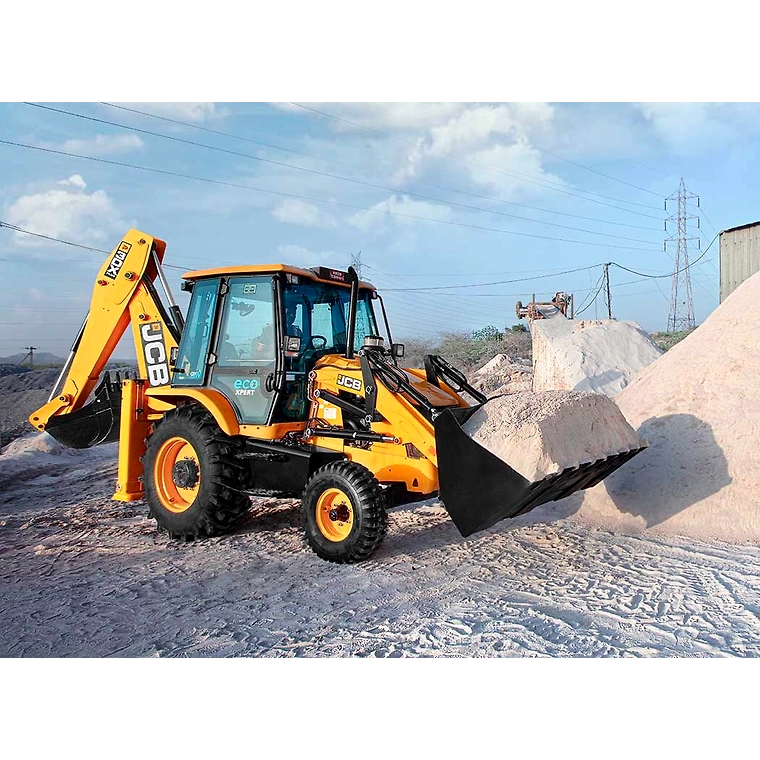

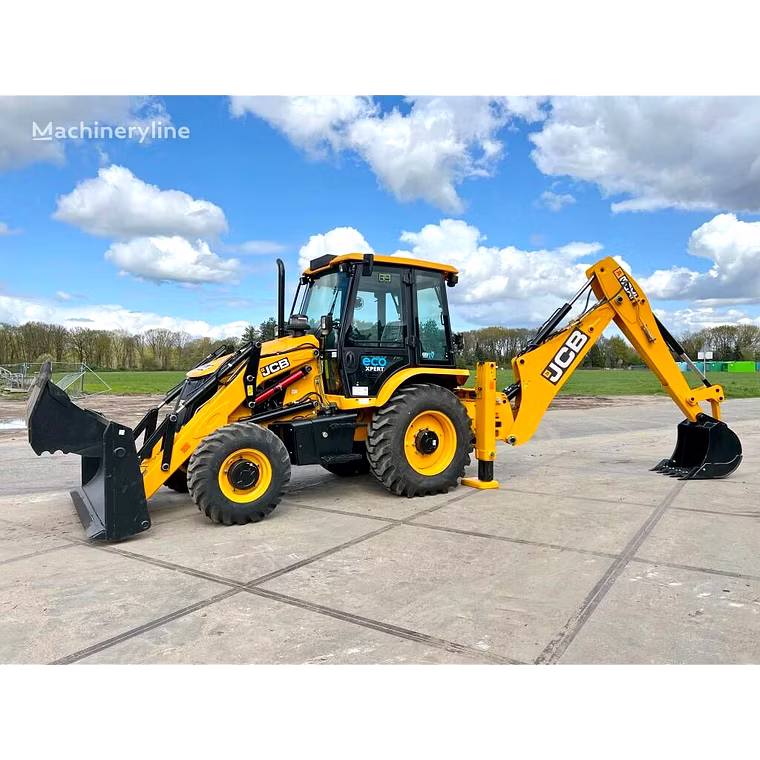

BACKHOE LOADER - JCB 4DX

Brand: JCB

Inclusive of all taxes

The JCB 4DX Backhoe Loader is the epitome of efficiency and versatility in the heavy machinery landscape. Engineered with advanced technology, this model boasts up to 10% lower fuel consumption compared to its predecessors, facilitating substantial savings in your operational expenses, amounting to over ₹1,07,739 per year. The heavy-duty JCB 430 engine, powered by CRDi technology, not only enhances fuel efficiency but also meets the stringent Stage 5 emissions standards, making it an environmentally conscious choice. Equipped with a variable displacement hydraulic pump, the 4DX dynamically modulates flow based on load demands, reducing hydraulic losses and extending the lifespan of hydraulic oil. The Auto Idle and Auto Stop features are a testament to JCB's commitment to efficiency, allowing the engine to shut off after a brief period of idling and conserving fuel by lowering the idle speed shortly after the operation ceases. Moreover, the JCB 4DX offers three distinct working modes—Eco, Standard, and Plus—allowing operators to optimize productivity while conserving fuel according to the task at hand. Additional modes for loading and roading are tailored specifically for optimized fuel consumption during specialized operations. Whether excavating or loading, the JCB 4DX Backhoe Loader ensures that every task is performed with maximum efficiency and minimum cost. With an impressive gross power of 55kW (74hp) at 2200 rpm, and a maximum torque of 440Nm at just 1150 rpm, this robust machine doesn't compromise on performance. When you choose the JCB 4DX, you are investing in an advanced, reliable, and efficient solution for all your construction needs.

Key Features

Features Description
Fuel Consumption Reduction Up to 10% lower fuel consumption, saving up to ₹1,07,739 per annum.
Engine Type JCB 430, CRDi 55kW Stage 5 Engine.
Hydraulic Pump Variable Displacement Hydraulic Pump dynamically adjusts flow based on load.
Fuel Saving Features Includes Auto Idle and Auto Stop features for further fuel efficiency.
Working Modes Offers multiple modes including Eco, Standard, Plus, Loading & Roading.
Attributes Description
Engine Displacement 3.0 L
Gross Power 55kW (74hp) @ 2200 rpm
Max Torque 440Nm @ 1150 rpm
Brake System JCB 'Q' brakes, hydraulically actuated, self-adjusting.
Braking Features Oil-immersed, multi-disc type on rear axle, no maintenance required.
Foot Pedals Two independently operable pedals for precise maneuvering.
Parking Brake Hand operated disc brakes on rear axle input.

*Disclaimer: The above description has been AI-generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.

Be the first to write a review

    • Incorporation Type

    • GST

    • GST Registration Date

    • Number of Employees

    • Import Export Code (IEC)

    • Year of Establishment

    • Nature of Business

    • GlobalLinker Member Since

    Brand: JCB

    Country Of Origin: India

    1 Up to 10%* Lower Fuel Consumption

    Enjoy significant savings with fuel efficiency improvements, saving up to `1,07,739/-*

    2 Fuel-Efficient Engine

    The advanced Stage 5 JCB 430 engine, equipped with CRDi technology, ensures superior fuel efficiency.

    3 Variable Displacement Hydraulic Pump

    This pump dynamically adjusts flow based on load requirements, reducing hydraulic losses, enhancing fuel efficiency, and extending hydraulic oil life.

    4 Auto Idle & Auto Stop Features

    Save fuel with Auto Stop, which shuts off the engine after a 6-minute idle period.

    Auto Idle mode activates after 10 seconds, conserving fuel by lowering idle speed.

    5 Multiple Working Modes

    3 modes: Eco, Standard & Plus mode for excavation to

    balance productivity with fuel efficiency.

    2 modes: Loading & Roading mode for optimising fuel

    consumption for specific tasks.

    JCB 430, CRDi 55kW Stage 5 Engine, 4 cylinder, water cooled, Turbocharged with EGR and aftertreatment system DOC and DPF.

    Displacement : 3.0 L

    Gross power : 55kW (74hp) @ 2200 rpm

    Max torque : 440Nm @ 1150 rpm


    • Service: JCB ‘Q’ brakes, hydraulically actuated, dual line,

    self adjusting (compensated), oil immersed, multi-disc

    type on the rear axle, well protected from dirt, water,

    requiring no maintenance.Through independent pedals

    linked together for normal use.

    • Two independently operatable foot pedals enable machine to manoeuver in tight spaces.

    • Parking: Hand operated, disc brakes on rear axle

    input disc.
