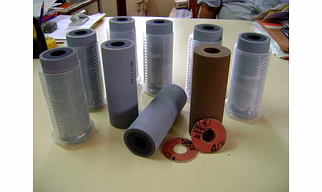

Filter Fineness: 0.3µm

Length: 135mm

Outer Diameter: 50mm

Inner Diameter: 20mm

Max. Temperature: 190°C

Filter Fineness: 0.3µm

Length: 135mm

Outer Diameter: 50mm

Inner Diameter: 20mm

Max. Temperature: 190°C

The CGEK 5 compressor type gas cooler is used to lower the dew point of humid sample gas to avoid condensation in the analyzers. An extremely stable and low gas dew point avoids water vapor cross-sensitivity and volumetric errors.

The Ring Heater is a regulated power supply with a heating power of 200 W and a mains frequency of 48-62 Hz. It is used for temperature control and monitoring.

The acid filter is a component of a continuous gas analyzer system that is used to remove interfering particles from the process gas before it reaches the analyzer.

The filter element is made of micro-glass fiber and PVDF and is not soaked.

The housing material for the upper part is PVDF and the lower part is glass. The gas connections are screw-in gland G 1/4, and the filter comes with a mounting bracket and connection screw connection (condensate drainage).

The filter element is made of micro glass fiber and PVDF and is not soaked. It has a length of 63.5mm and a diameter of 36.2mm

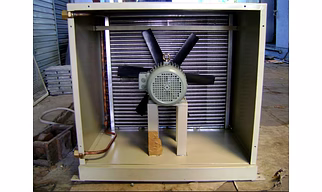

Large gas-to-air heat exchangers are used to cool hot exhaust gases leaving suspension preheaters. These gases are cooled prior to being vented through a bag house to the environment.
