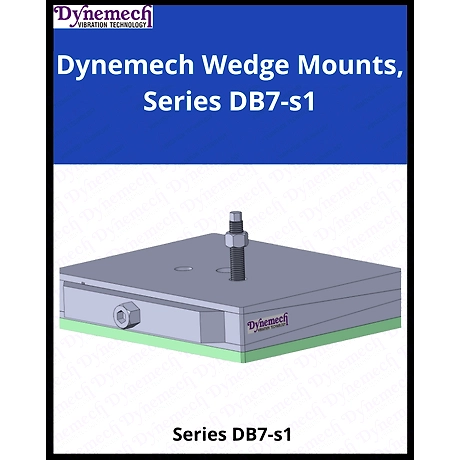

Dynemech Wedge Mounts, Series DB7s1, are expertly engineered for high-precision leveling and effective vibration reduction in industrial machinery. Tailored for machines that encounter significant axial thrust without necessitating floor anchoring, these mounts are essential for enhancing equipment stability and performance. The innovative design features two mounting holes on the top plate, allowing users to secure the bolt—supplied as a standard accessory—into either hole. This flexibility ensures optimal coverage of the wedge mount by the machine's base, accommodating various installation configurations. Ideal for a range of applications such as measuring and testing machines, hardness testers, microscopes, EDM machines, and profile projectors, the DB7s1 model can support a load of up to 9500kg per unit, making it a robust solution for heavy-duty industrial requirements. Constructed from durable rubber and cast iron with a striking green finish, these wedge mounts operate effectively within temperature ranges from -16°C to 90°C. Experience unmatched stability and precision with Dynemech's Wedge Mounts, Series DB7s1.
Key Features
Features | Description |
---|---|
Precision Leveling | Ensures accurate alignment and stability for machines. |
Vibration Reduction | Minimizes vibrations, safeguarding sensitive equipment. |
High Axial Thrust Capability | Designed for machines that experience significant axial loads. |
Dual Mounting Options | Two holes on the top plate for flexible installation. |
Heavy Load Capacity | Supports up to 9500kg per wedge mount. |
Durable Material | Made from robust rubber and cast iron. |
Temperature Resistance | Operational range from -16°C to 90°C. |
Industrial Design | Robust construction suitable for various industrial applications. |
Attributes | Description |
---|---|
Size | 400x500x100 mm |
Bolt Size | M24 x 3.0 x 200 mm Long |
Load Capacity | 9500 kg/pc |
Weight | 120 kg |
Material | Rubber & Cast Iron |
Color | Green |
Usage | Industrial |
Function | Precision leveling and vibration reduction |
Temperature Range | -16°C to 90°C |
*Disclaimer: This above description has been AI generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Brand: DYNEMECH
Country of Origin: India
Dynemech Wedge Mounts Series DB is designed for machines which require precision leveling along with vibration reduction and are desired to be firmly mounted with the isolator or machines with high axial thrust and do require any anchoring to the floor.
These mounts provide 2 holes on the top plate of the wedge. The bolt which is supplied as a standard accessory with these wedge mounts can be fixed in any of these two holes. While installing the machine, the bolt can be fixed in the hole which makes sure that most of the wedge mount is covered by the leg/base of the machine.
Application: Measuring & Testing Machines,Surface Plates, Hardness Testers, Microscopes, EDM Machines, Profile Projectors etc.
*****
Dynemech Wedge Mounts Series DB is designed for machines which require precision leveling along with vibration reduction and are desired to be firmly mounted with the isolator or machines with high axial thrust and do require any anchoring to the floor.
These mounts provide 2 holes on the top plate of the wedge. The bolt which is supplied as a standard accessory with these wedge mounts can be fixed in any of these two holes. While installing the machine, the bolt can be fixed in the hole which makes sure that most of the wedge mount is covered by the leg/base of the machine.
Application: Measuring & Testing Machines,Surface Plates, Hardness Testers, Microscopes, EDM Machines, Profile Projectors etc.
Size: 400x500x100mm
Bolt Size:M24 x 3.0 x 200mm Long
Load Capacity: 9500Kg/pc
Weight:120 Kgs
Material:Rubber & Cust Iron
Colour:Green
Usage: Industrial
Function:Dynemech Wedge Mounts Series DB is designed for machines which require precision leveling along with vibration reduction.
Temperature:From -16 to 90
*****
