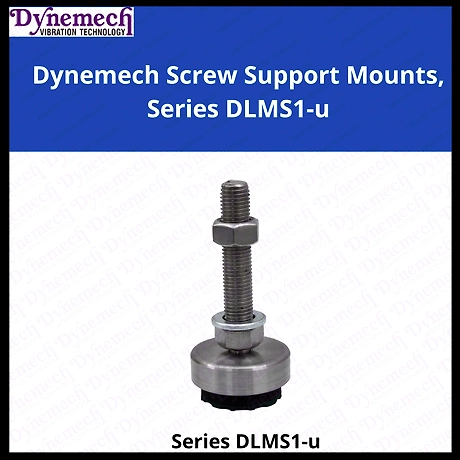

Dynemech Screw Support Mounts, Series DLMS1-u are specifically engineered antivibration mount solutions, designed to optimize machine performance by effectively dampening vibrations. Crafted from durable steel and stainless steel, these mounts provide exceptional low-frequency attenuation, ensuring stable machine leveling and a significant reduction in vibration throughout various industrial settings. They are particularly beneficial in applications across the pharmaceutical, food and beverage processing, medical equipment manufacturing, and chemical processing industries, where corrosion-resistant materials are paramount for hygienic and environmental reasons. The innovative design incorporates a flexible leveling screw that accommodates uneven or sloped surfaces up to 5 degrees, enhancing functionality in diverse operational environments. With a load capacity of 150 Kg per piece, they are ideal for a wide range of machinery including tool room machines, plastic injection molding machines, pressure die casting, shaper machines, and printing and textile machines. The mounts continue to perform reliably across a working temperature range of -16 to 90°C, making them suitable for various operational conditions. Their robust construction includes a combination of rubber, cast iron, and mild steel, and they are available in green and dark grey colors, providing a blend of aesthetic appeal and durability.
Key Features
Features | Description |
---|---|
Material | Steel and Stainless Steel |
Vibration Attenuation | Effective low frequency reduction |
Load Capacity | 150 Kg per mount |
Surface Accommodation | Accommodates up to 5° sloped surfaces |
Temperature Range | -16 to 90 °C |
Natural Frequency | 18 Hz |
Coefficient of Friction | 0.9 |
Weight | 14 Kg |
Application Areas | Pharmaceutical, Food & Beverages, Medical, Chemical Processing |
Attributes | Description |
---|---|
Size (Diameter) | 59 mm |
Height | 21 mm |
Bolt Size | M16x2.0x100 mm |
Color | Green & Dark Grey |
Package Type | Individual mounts |
Key Words
*Disclaimer: This above description has been AI generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Brand: DYNEMECH
Country of Origin: 101
Dynemech DLMS Series Antivibration Mounts, developed in steel and stainless steel respectively are simple and effective vibration dampers for machines with respective holes in the base. These mounts offer low frequency attenuation, stable machine levelling and vibration reduction. The flexible levelling screw accommodates uneven/sloped surface up to 5 degree. DLMS Series find application where corrosion resistant materials for hygienic, climatic and environmental reasons are required like in pharmaceutical, food and beverages processing and packaging units, medical equipment manufacturing and chemical processing industries.
Dynemech DLMS Series Antivibration Mounts, developed in steel and stainless steel respectively are simple and effective vibration dampers for machines with respective holes in the base. These mounts offer low frequency attenuation, stable machine levelling and vibration reduction. The flexible levelling screw accommodates uneven/sloped surface up to 5 degree. DLMS Series find application where corrosion resistant materials for hygienic, climatic and environmental reasons are required like in pharmaceutical, food and beverages processing and packaging units, medical equipment manufacturing and chemical processing industries.
Application: Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting.
Size :Dia-59(mm), Height-21(mm)
Load Capacity (Kg.):150 Kg/pc
Bolt Size:M16x2.0x100mm Natural Frequency (Hz):18
Coeff. of Friction:0.9
Working Temp Range °C:-16 to 90
Weight ( Kg.):14 Kg.
Material:Rubber+Cust Iron+Mild steel
Colour:Green & Dark Grey
Machines, Shaper, Printing and Textile Machines etc.
*****
