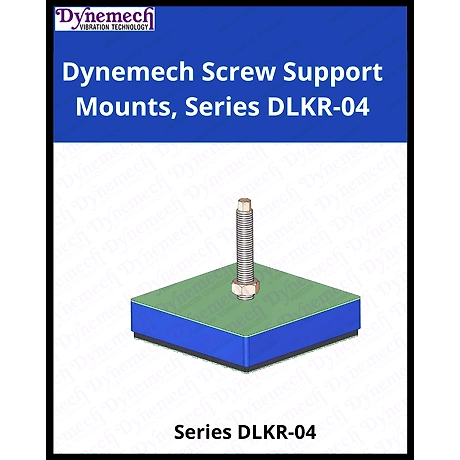

Dynemech Screw Support Mounts, Series DLKR-04

Brand: DYNEMECH

Inclusive of all taxes

The Dynemech Screw Support Mounts, Series DLKR-04, are specifically designed anti-vibration mounts that excel in providing stabilization and vibration dampening for various industrial machinery applications. With a robust steel body, these mounts are tailored for machines that feature mounting holes in their bases. The innovative design includes a cover plate with a dimpled bottom plate, which supports an insulation pad to efficiently absorb vibrations. The leveling of the mounts is accomplished by tightening the bolt, which elevates the cover plate in conjunction with the machine's foot. Importantly, the vibration dampening base pad is crafted from a composite elastomeric material, engineered with varied compositions to target different natural frequencies, thus ensuring superior vibration damping across multiple types of industrial machines. This makes the DLKR series an optimal choice for heavy machinery requiring low-frequency attenuation while maintaining stable machine leveling. With dimensions of 200x200x58mm, each mount offers an impressive load capacity of up to 5600 kg, accommodating extensive industrial needs. The product is equipped with M20x2.5x150mm bolts and allows an adjustment of 15mm. It can operate efficiently in a temperature range from -16°C to 90°C, and each mount weighs 14 kg. The combination of durable materials, including rubber, cast iron, and mild steel, coupled with an appealing green and yellow finish, ensures that these mounts not only perform exceptionally but also present an attractive solution for industrial applications.

Key Features

Features Description
Material Rubber + Cast Iron + Mild Steel
Load Capacity 5600 Kg/pc
Dimensions 200mm x 200mm x 58mm
Bolt Size M20 X 2.5 X 150mm
Adjustment Range 15mm
Working Temperature Range -16°C to 90°C
Weight 14 Kg
Color Green & Yellow
Attributes Description
Series DLKR
Type Anti-vibration Mount
Application Machines with respective mounting holes
Design Dimpled bottom plate with insulation pad
Vibration Damping Composite elastomeric material
Stability Low frequency attenuation
Compliance Compatible with various industrial machinery

*Disclaimer: This above description has been AI generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.

Be the first to write a review

  • Incorporation Type

  • GST

  • GST Registration Date

  • Number of Employees

  • Import Export Code (IEC)

  • Year of Establishment

  • Nature of Business

  • GlobalLinker Member Since

Brand: DYNEMECH

Country of Origin: India

DLKR series Anti-vibration mounts have steel body and are used for machines having mounting holes in the base. This leveling mount has a cover plate and dimpled bottom plate holding the insulation plate. Leveling is done by tightening the bolt which lifts the cover plate with the machine foot. The vibration dampening base pad is made of composite elastomeric material at varying composition contributing different natural frequencies to provide vibration damping solutions to all types of industrial machines.



DLKR series Anti-vibration mounts have steel body and are used for machines having mounting holes in the base. This leveling mount has a cover plate and dimpled bottom plate holding the insulation plate. Leveling is done by tightening the bolt which lifts the cover plate with the machine foot. The vibration dampening base pad is made of composite elastomeric material at varying composition contributing different natural frequencies to provide vibration damping solutions to all types of industrial machines.


 Application:Dynemech Machine Base Mounts Series DLKR are simple but effective rectangular vibration dampers for machines with respective holes in the base. With their sturdy construction, Series DLKR supports both low frequency attenuation and stable precise machine levelling .


Size :200x200x58(mm)

Load Capacity (Kg.):5600 Kg/pc

Bolt Size:M20X2.5X150mm

Adj.(mm):15

Working Temp Range °C:-16 to 90

Weight ( Kg.):14

Material:Rubber+Cust Iron+Mild steel

Colour:Green & YELLOW
