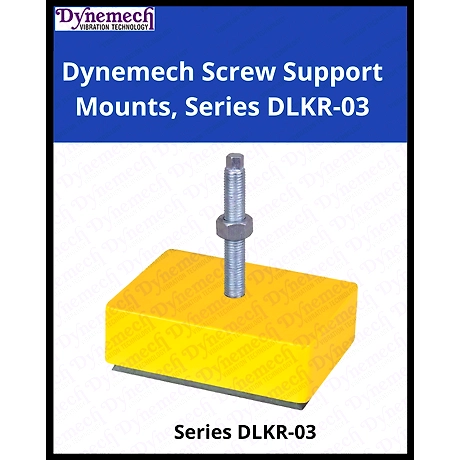

The Dynemech Screw Support Mounts, Series DLKR-03, are top-tier anti-vibration mounts designed specifically for industrial machinery. Constructed with a robust steel body, these mounts are engineered to support machines with mounting holes in their bases. Featuring a unique leveling design, the DLKR-03 uses a cover plate and a dimpled bottom plate that hold the insulation pad effectively. By tightening the bolt, users can lift the cover plate in line with the machine foot, allowing for precision leveling. The mounts incorporate a vibration-dampening base pad made from composite elastomeric material, which is available in varying compositions, ensuring that they provide effective vibration damping solutions across all industrial machine types. This series is ideal for environments where machine stability and low-frequency vibration attenuation are paramount, making the Dynemech DLKR mounts a reliable choice for every industrial application. With specifications that include a considerable load capacity of 4000 kg per piece, and an operational temperature range from -16°C to 90°C, these mounts promise durability and performance even in the most challenging conditions. Additionally, the attractive green and yellow design of these mounts makes them a visually appealing yet practical addition to any industrial setup.
Key Features
Features | Description |
---|---|
Load Capacity | 4000 Kg per piece |
Bolt Size | M20X1.5X150mm |
Adjustable Height | 32 mm |
Dimensions | 200x150x62 (mm) |
Working Temperature Range | -16°C to 90°C |
Material Composition | Rubber, Cast Iron, Mild Steel |
Mount Color | Green & Yellow |
Vibration Dampening | Composite elastomeric material for effective noise reduction. |
Attributes | Description |
---|---|
Size (mm) | 200x150x62 |
Load Capacity (Kg.) | 4000 Kg/pc |
Bolt Size (mm) | M20X1.5X150 |
Adjustable Height (mm) | 32 |
Working Temperature Range (°C) | -16 to 90 |
Weight (Kg.) | 8 |
Material | Rubber, Cast Iron, Mild Steel |
Color | Green & Yellow |
*Disclaimer: This above description has been AI generated and has not been audited or verified for accuracy. It is recommended to verify product details independently before making any purchasing decisions.
Brand: DYNEMECH
Country of Origin: India
DLKR series Anti-vibration mounts have steel body and are used for machines having mounting holes in the base. This leveling mount has a cover plate and dimpled bottom plate holding the insulation plate. Leveling is done by tightening the bolt which lifts the cover plate with the machine foot. The vibration dampening base pad is made of composite elastomeric material at varying composition contributing different natural frequencies to provide vibration damping solutions to all types of industrial machines.
DLKR series Anti-vibration mounts have steel body and are used for machines having mounting holes in the base. This leveling mount has a cover plate and dimpled bottom plate holding the insulation plate. Leveling is done by tightening the bolt which lifts the cover plate with the machine foot. The vibration dampening base pad is made of composite elastomeric material at varying composition contributing different natural frequencies to provide vibration damping solutions to all types of industrial machines.
Application:Dynemech Machine Base Mounts Series DLKR are simple but effective rectangular vibration dampers for machines with respective holes in the base. With their sturdy construction, Series DLKR supports both low frequency attenuation and stable precise machine levelling .
Size :200x150x62(mm)
Load Capacity (Kg.):4000 Kg/pc
Bolt Size:M20X1.5X150mm
Adj.(mm):32
Working Temp Range °C:-16 to 90
Weight ( Kg.):08
Material:Rubber+Cust Iron+Mild steel
Colour:Green & YELLOW
